11.4 Data logger kit (option)
BINDER Data Logger Kits offer an independent long-term measuring system for temperature. They are
equipped with a keyboard and a large LCD display, alarm functions and a real-time function. Measure-
ment data are recorded in the Data Logger and can be read out after the measurement via the RS232
interface of the Data Logger. It offers a programmable measuring interval and permits storing up to 64000
measuring values. Reading out is done with the Data Logger evaluation software. You can give out a
combined alarm and status protocol directly to a serial printer.
Data Logger Kit T 350: Temperature range 0 °C / 32 °F up to +350 °C / 662 °F
For detailed information on installation and operation of the BINDER Data Logger, please
refer to the mounting instructions Art. No. 7001-0204 and to the original user manual of the
manufacturer, supplied with the data logger.

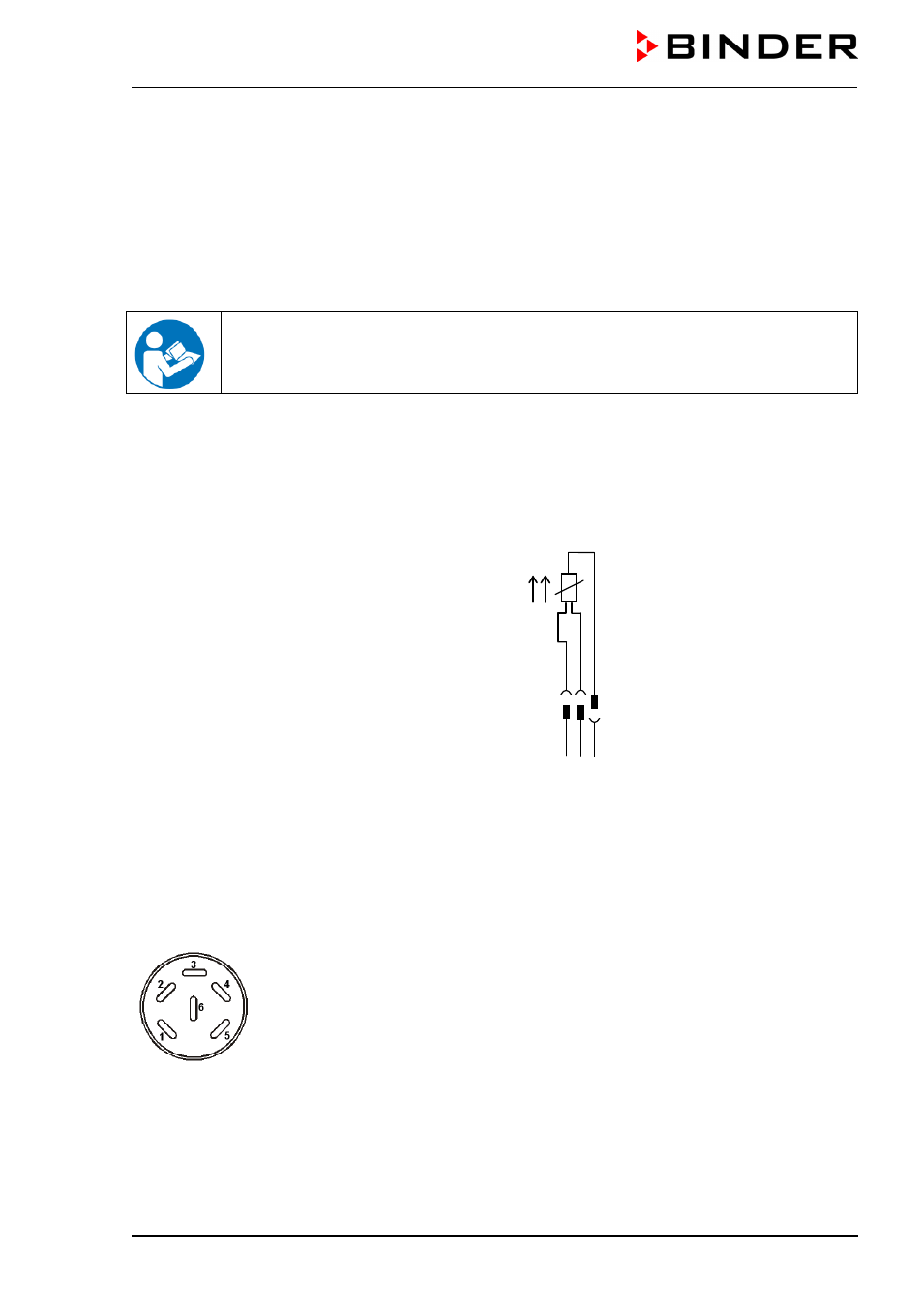

11.5 Additional flexible Pt100-temperature sensor (option)
With this option, an additional flexible temperature sensor Pt 100 allows measuring the chamber tem-
perature or the temperature of the charging material by means of an independent measuring system with
Pt 100 entry. The sensor top protective tube of the flexible Pt 100 can be immersed into liquid substanc-
es.
Technical data of the Pt 100 sensor:
•
Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C
• Stainless steel protective tube 45 mm length
material no. 1.4501
Lemo socket
Lemo plug
Figure 11: Option temperature sensor Pt 100
11.6 Analog output for temperature (option)
With this option the drying and heating oven is equipped with an analogue output 4-20 mA for tempera-
ture. This output allows transmitting data to external data registration systems or devices.
The connection is realized as a DIN socket on the rear of the chamber as follows:
ANALOG OUTPUT 4-20 mA DC
PIN 1: Temperature –
PIN 2: Temperature +
Temperature range: 0 °C / 32 °F up to 300 °C / 572 °F
A suitable DIN plug is enclosed.
Figure 12: DIN socket for option analog output
