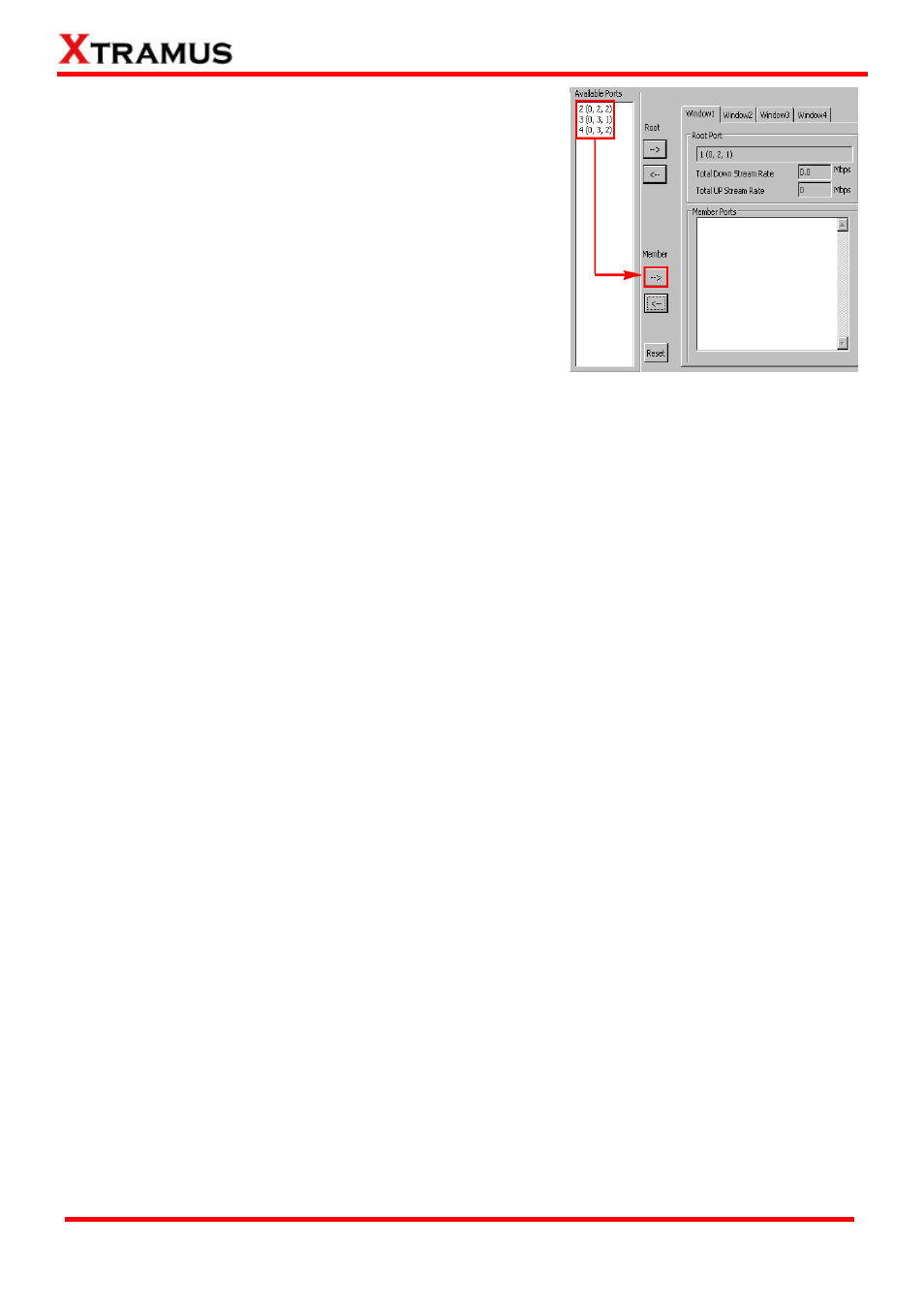

To assign Active Ports as the Member Ports for Root, please
click the Active Ports you would like to use as Member Ports,
and then click the Æ button to add it to the member Ports field
located on the right side. To remove a Member Port you’ve
assigned, click the Member Port you would like to remove,
and then click the Å button.
•
Available Ports: All available Active Ports will be
shown in this field. If you assign an Active Port as the
Root Port or one of the Member Ports, it will be
removed from this field.
•
Æ
/Å: You can add an selected Active Port as the Root Port or one of the Member Ports by
clicking the Æ button, or remove the Root Port or Member Ports by clicking the Å button.
•
Window: You may configure each Window task settings by clicking the Window1, Window2,…,
Window8. The number of the Windows depends on the number of Set Window Count, please
refer to the 4.2.2. Select Port Settings.
•
Root Port: The port set to transfer packets to the Member Ports.
•
Total Down Stream Rate: The rate of total Down Stream in Mbps.
•
Total Up Stream Rate: The rate of total Up Stream in Mbps.
•
Member Ports: The ports set to receive packets from Root Port.
•
Reset: Click this button to remove all Active Ports that has been assigned as Root Port or
Member Ports.
