5.3.2 Record set
5.3.2.1 Record parameters
Go to [Main menuRecordRecord Para] to enter into the interface shown as Picture 5-11.
Channel: allow you setup the channel you desired.
Record: allows you set up record status (Enable/Disable) of each channel
Pack Duration: indicates maximum continuous record time (15, 30, 45 and 60 min).
Pre-record: Motion detection and I/O triggered record support Pre-record function.
5.3.2.2 Schedule
Click [Main MenuRecordSchedule] to enter into the interface shown as Picture 5-12.
[Channel] option allows you select one channel you desired.
To setup weekly schedules, tick-select the box of the record status you want (Alarm, General, or No
Record) and then click on each box in the schedule time line that you want this method to apply to. You can
use the [Copy
– To] pull-down menus and Copy button to copy settings from one day to another day or all
days.
After you complete the schedule you activate it by clicking the [Apply] button.
You can also click on the Default button to use the system defaults.
Explanation: Under the <record> menu and <search> menu, orig
inal color stands for no record, “Red” stands
for alarm record
, “yellow” stands for Motion record and “Green” stands for normal record.
5.3.2.3 Main Stream
Go to [Main menuRecordMain Stream] to enter into the interface shown as Picture 5-13.
Resolution: support WD1/WHD1/WCIF
or D1/HD1/CIF.
Frame rate: PAL: 1-25 f/s ; NTSC: 1-30 f/s.
Bit rate: user could select the relative value by pull-down menu.
Audio: When tick-selecting the option, system will record video stream with audio
simultaneously

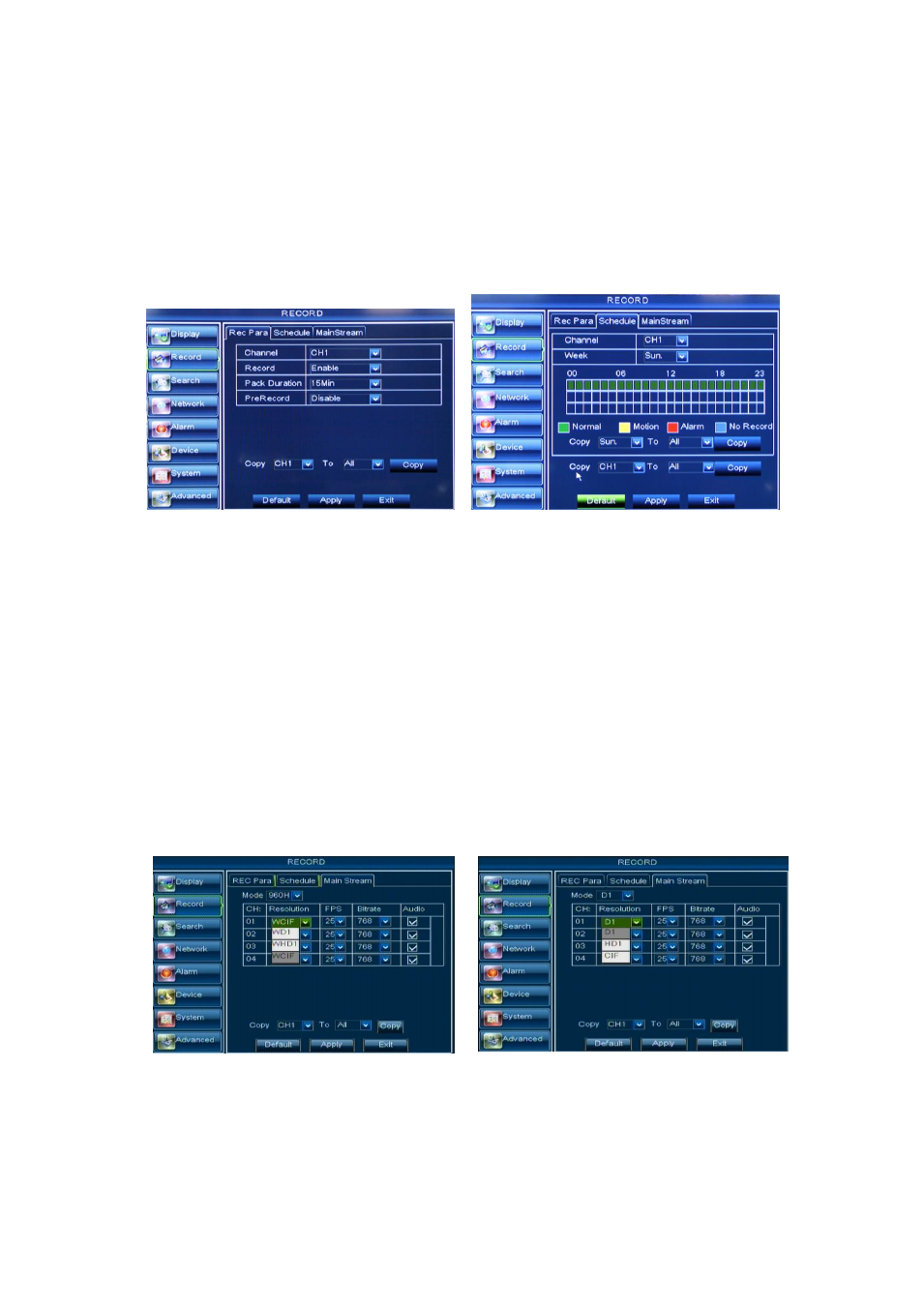

Picture 5-11
Picture 5-12
Picture 5-13
