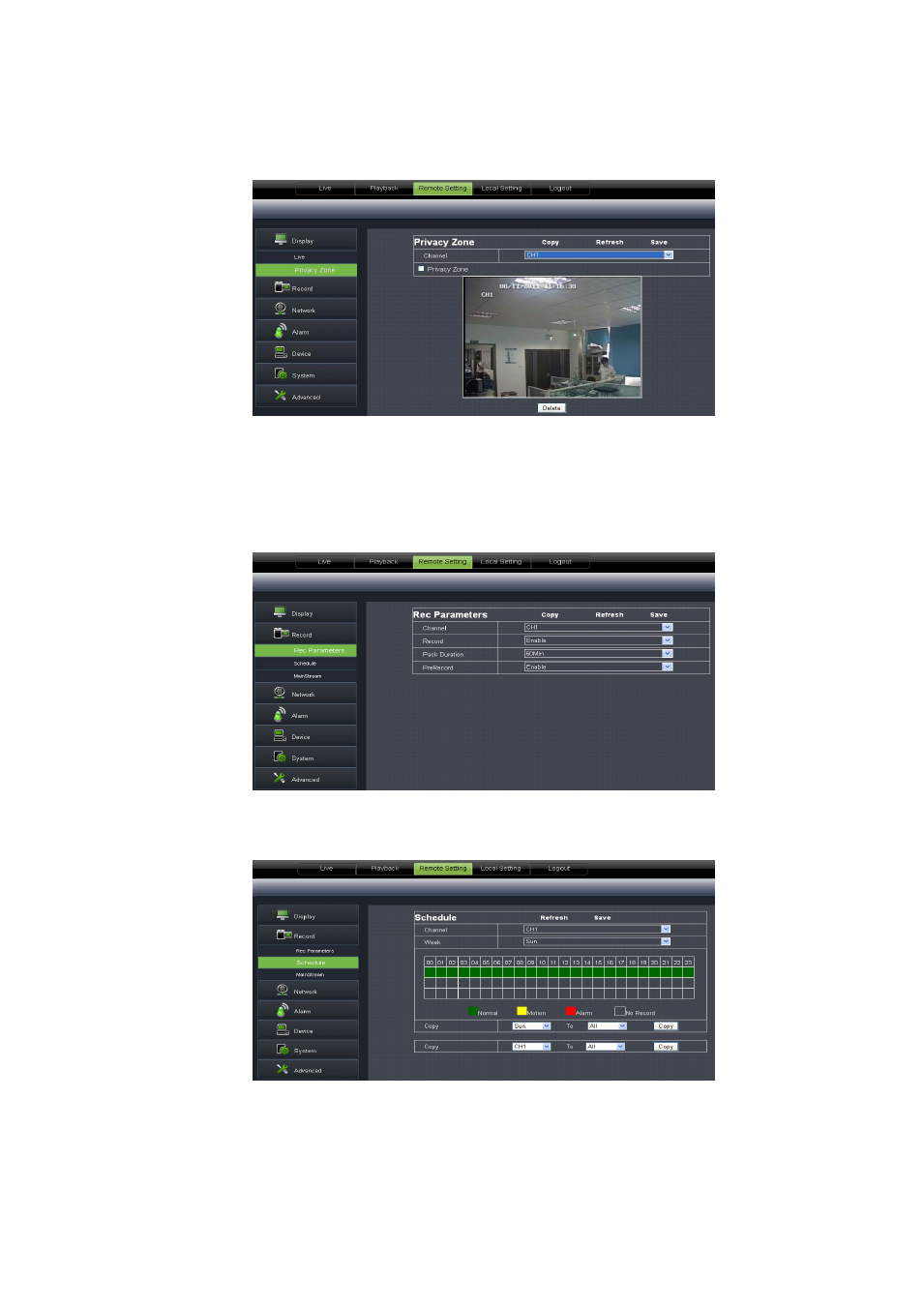

2、Privacy zone: Each channel could set up to four privacy zones shown as Picture 6-14. Details
parameters please refer to section 5.3.1.3. If you want to delete one privacy zone, please firstly select one
zone, and then click <Clear> button and click <Save> on the right corner
6.3.3.2 Record
Click <Record> option to unfold its sub-options: Record parameter, Schedule and Main stream.
1、 Record Parameters: Under [Record parameters] option, allow you set channel, record enable, pack time
and Pre-record status shown as Picture 6-1
2、 Schedule: Detailed parameters please refer to DVR local setting.
Green stand for Normal record; Yellow stands for Motion detection; Red stands for I/O triggered record.
Picture 6-16
Picture 6-14
Picture 6-15
