1
2
3
4/5
6
7
8

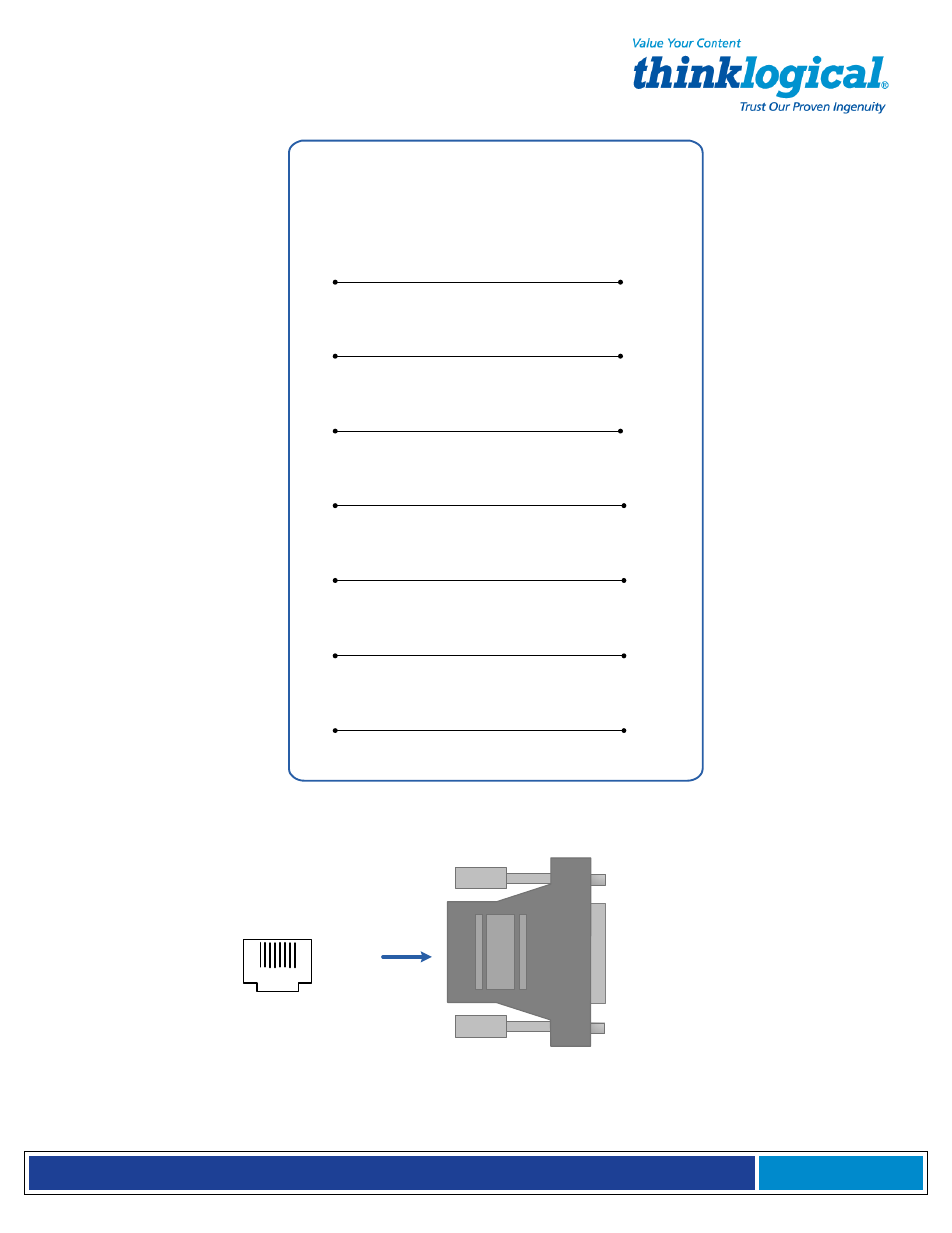

RJ45
ADP-000005
RJ45 to 25-pin Male
4
20
2
7
3
6
5
RJ-45
25-pin
1
8
ADP-000006
RJ45 to 25-pin Female
Wire key:
1-Blue
2-Orange
3-Black
4-Red
5-Green
6-Yellow
7-Brown
8-White
