Effect Parameters
50
When Feedback Mode is “
CroS
” (CROSS)
Step
buttons
Parameter
Value
Explanation
[1]
tyPe
dLy3
Adds a wavering feel to the delay
sound.
[2]
Sľ
Off
,
On
Turns the effects on/off.
[3]
L.Snc
Off
,
On
When this is ON, the effect synchronizes
with the tempo of the rhythm.
(P.28)”
[4]
L.tiN
1
–
1300
(ms)
Time from when the direct sound of the
left channel is heard until the delay
sound is heard
[5]
L.not
(P.57)”
[6]
R.Snc
Off
,
On
When this is ON, the effect synchronizes
with the tempo of the rhythm.
“
(P.28)”
[7]
R.tiN
1
–
1300
(ms)
Time from when the direct sound of the
right channel is heard until the delay
sound is heard
[8]
R.not
(P.57)”
[9]
FB.Nd
norN
,
CroS

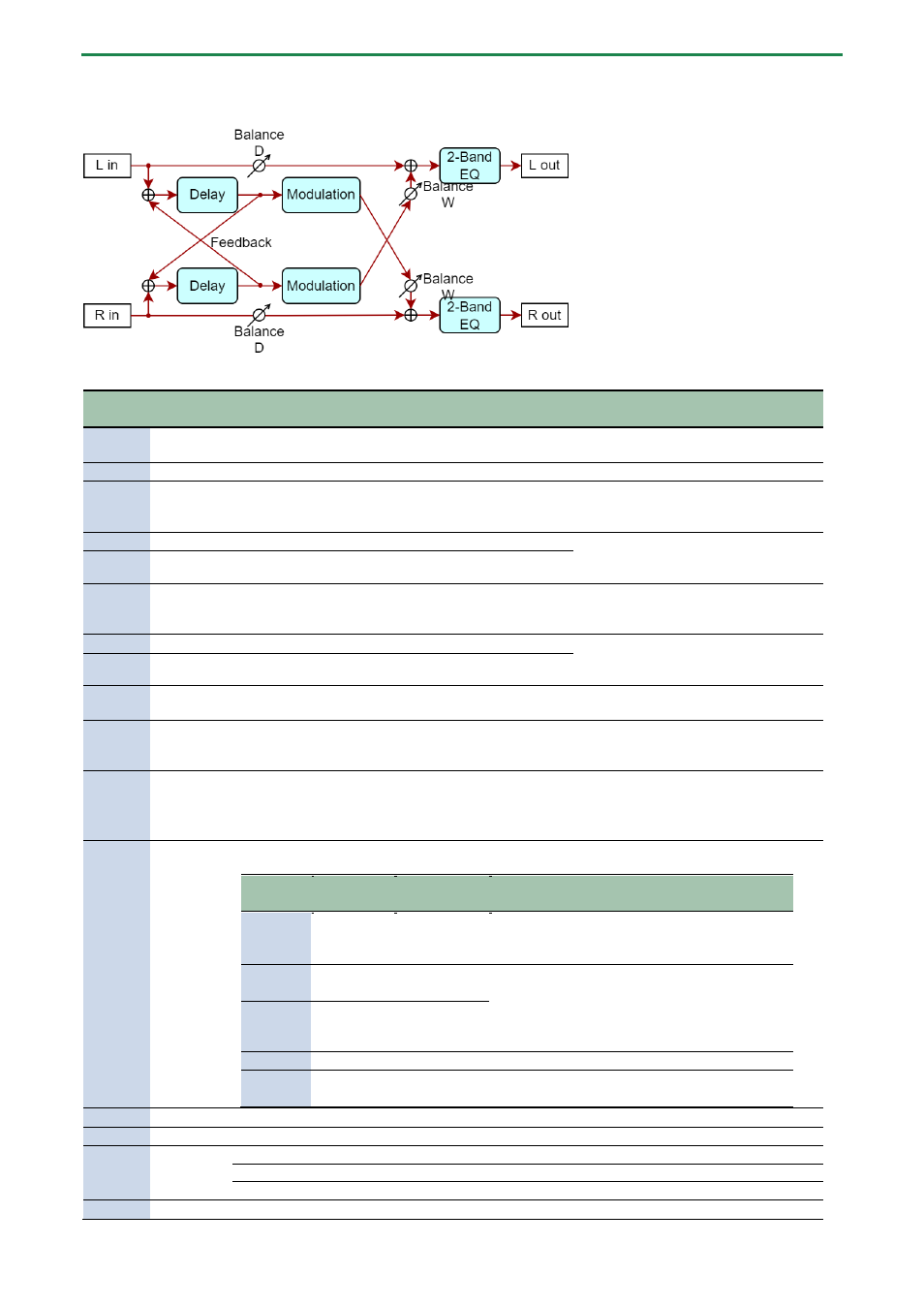

The input where the delay sound is
returned (see the algorithm diagram)
[10]
Fb
-98
–
98
(%)
Adjusts the proportion of the delay
sound that is fed back into the effect.
(Negative values invert the phase.)
[11]
H.dNP
200
,
250
,
315
,
400
,
500
,
630
,
800
,
1000
,
1250
,
1600
,
2000
,
2500
,
3150
,
4000
,
5000
,
6300
,
8000
(Hz),
byPS
Center frequency at which the high
frequencies of the delay sound fed back
to the input are cut
(
byPS
: does not cut the frequencies)
[12]
Nod
These parameters configure the modulation.
Step
buttons Parameter
Value
Explanation
[1]
rAT.S
OFF
,
On
When this is ON, the effect synchronizes with the
tempo of the rhythm.
(P.28)”
[2]
rAT.H
0.05
–
10.00
(Hz)
Modulation cycle
[3]
rAT.n
(P.57)”
[4]
dEPt
0
–
127
Modulation depth
[5]
PHS
0
–
180
(deg)
Modulation width
[13]
Eq.Lo
-15
–
15
(dB)
Amount of low range boost/cut
[14]
Eq.Hi
-15
–
15
(dB)
Amount of high range boost/cut
[15]
bAL
Volume balance between the effect sound and dry (original) sound
0
Effect sound : Dry sound = 0 : 100
100
Effect sound : Dry sound = 100 : 0
[16]
LEU
0
–
127
Output level
