Effect Parameters
55
Step
buttons
Parameter
Value
Explanation
[1]
tyPe
FiLt
This is a filter with an extremely sharp slope (attenuation
characteristics). The cutoff frequency can be varied cyclically.
[2]
Sľ
Off
,
On
Turns the effects on/off.
[3]
tyPE
Frequency range that passes through each filter
LPF
Frequencies at or below the cutoff
bPF
Frequencies in the region of the cutoff
HPF
Frequencies at or above the cutoff
notc
Frequencies other than the region of the cutoff
[4]
SLoP
Filter slope (attenuation characteristics; amount of attenuation per octave)
-12
(dB)
Gentle
-24
(dB)
Steep
-36
(dB)
Extremely steep
[5]
C.OFF
0
–
127
Cutoff frequency of the filter
Increasing this value raises the cutoff frequency.
[6]
rESo
0
–
100
Filter resonance level
Increasing this value emphasizes the region near the cutoff
frequency.
[7]
GAin
0
–
12
(dB)
Amount of boost for the filter output
[8]
Nod
Off
,
On
On/off switch for cyclic change
[9]
Nod.ľ
These waves control how the cutoff frequency changes.
tri
Triangle wave
Sqr
Square wave
Sin
Sine wave
Saľ1
Sawtooth wave (upward)
Saľ2
Sawtooth wave (downward)
[10]
Sync
Off
,
On
When this is ON, the effect synchronizes with the tempo of the
rhythm.
(P.28)”
[11]
tiNE
0.05
–
10.00
(Hz)
Rate of modulation
[12]
notE
(P.57)”
[13]
dePt
0
–
127
Depth of modulation
[14]
AtK
0
–
127
Speed at which the cutoff frequency changes
The
Nod.ľ
parameter is effective when using a square wave or
sawtooth wave (upward or downward).
[15]
LEU
0
–
127
Output level
You can also press a step button to select the parameter items.

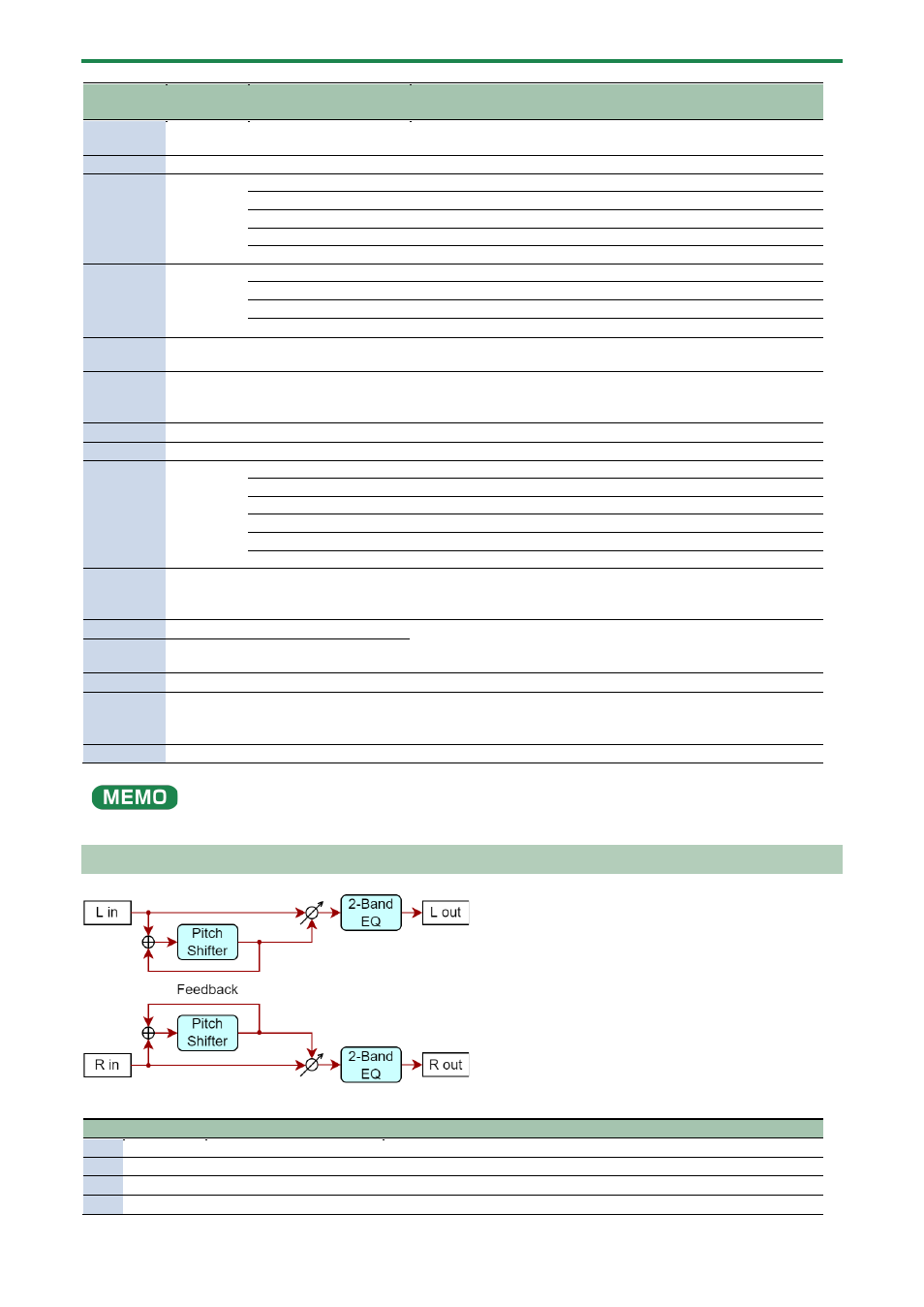

PitchShiftr
Parameter
Value
Explanation
[1]
tyPe
Ptc1
A stereo pitch shifter.
[2]
Sľ
Off
,
On
Turns the effects on/off.
[3]
CrS
-24
–
12
(semitones)
Adjusts the pitch of the pitch-shifted sound in semitones.
[4]
FinE
-100
–
100
(cent)
Adjusts the pitch of the pitch-shifted sound in 2-cent steps.
