1. Before placing the crossbar on the roof rails, make
sure that the T-30 torx® head screw is fully loosened
from each end support.
2. Spread the inner clamp and the end support as far
apart as possible.
3. With the front direction arrow label on the top right
side of the crossbar pointing toward the front of the ve-
hicle, carefully place the crossbar across the top of the
vehicle so that the crossbar end supports rest on the
top of the roof rails 7 inches (180 mm) rearward in the
front radius of the roof rail.
4. Move the end support and inner clamp to hook un-
der the end of the roof rail on both sides and loosely
assemble the T-30 torx® head screw with the tool pro-
vided into the threaded insert in the inner clamp on
each end of the crossbar.
NOTE
It may be necessary to start the inner clamp and
end support at the center of the roof rail for easier
installation, then move the crossbar forward. Use
care not to cross-thread the screw in the insert if it
has been removed.
5. Adjust the alignment of the crossbar on the roof
rails, and if available, use a T-30 torx® bit and torque
wrench and tighten the T-30 torx® head screws to 30
to 35 lbf·in (3.4 to 4.0 N·m, 0.35 to 0.41 kgf·m) of
torque (or tighten securely with the torx® wrench pro-

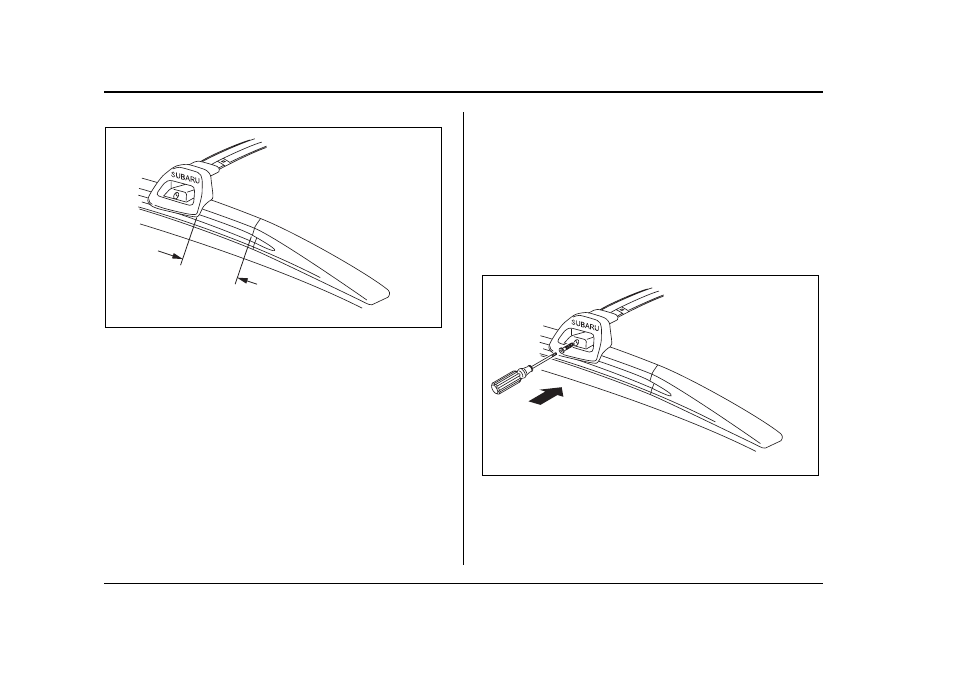

7 in
(180 mm)
UB6052BB
UB6053BA
