2.1.5 Fidelio Audio Interface for Non-Doremi Servers

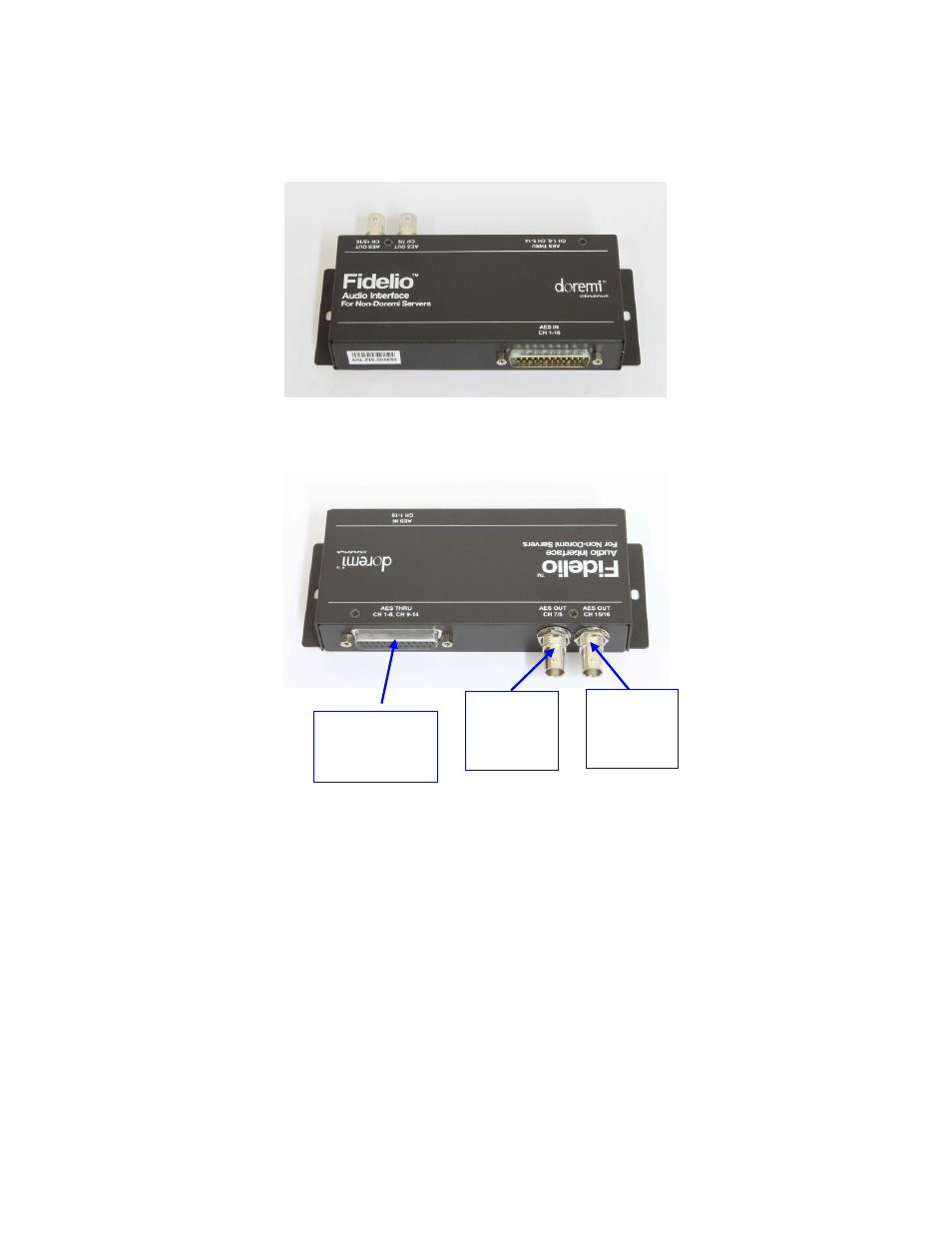

Figure 12: Fidelio Audio Interface (FIS) – Front View
Figure 13: Fidelio Audio Interface (FIS) – Rear View
DB25 Connector
AES THRU
Ch 1-6, Ch 9-14
Female BNC
Connector
AES OUT
CH 15/16
Female BNC
Connector
AES OUT
CH 7/8
