FAL.OM.002372.DRM Page 27 of 62 Version 1.6
Doremi Labs

When you have touched the change button, you will be presented with the Select
Auditorium screen. You can select auditorium assignments from 01 to 32.
Note: Any number with a blue square indicates that the auditorium number has been previously
assigned to a transmitter within your complex, not just the one currently plugged in (Figure 27).

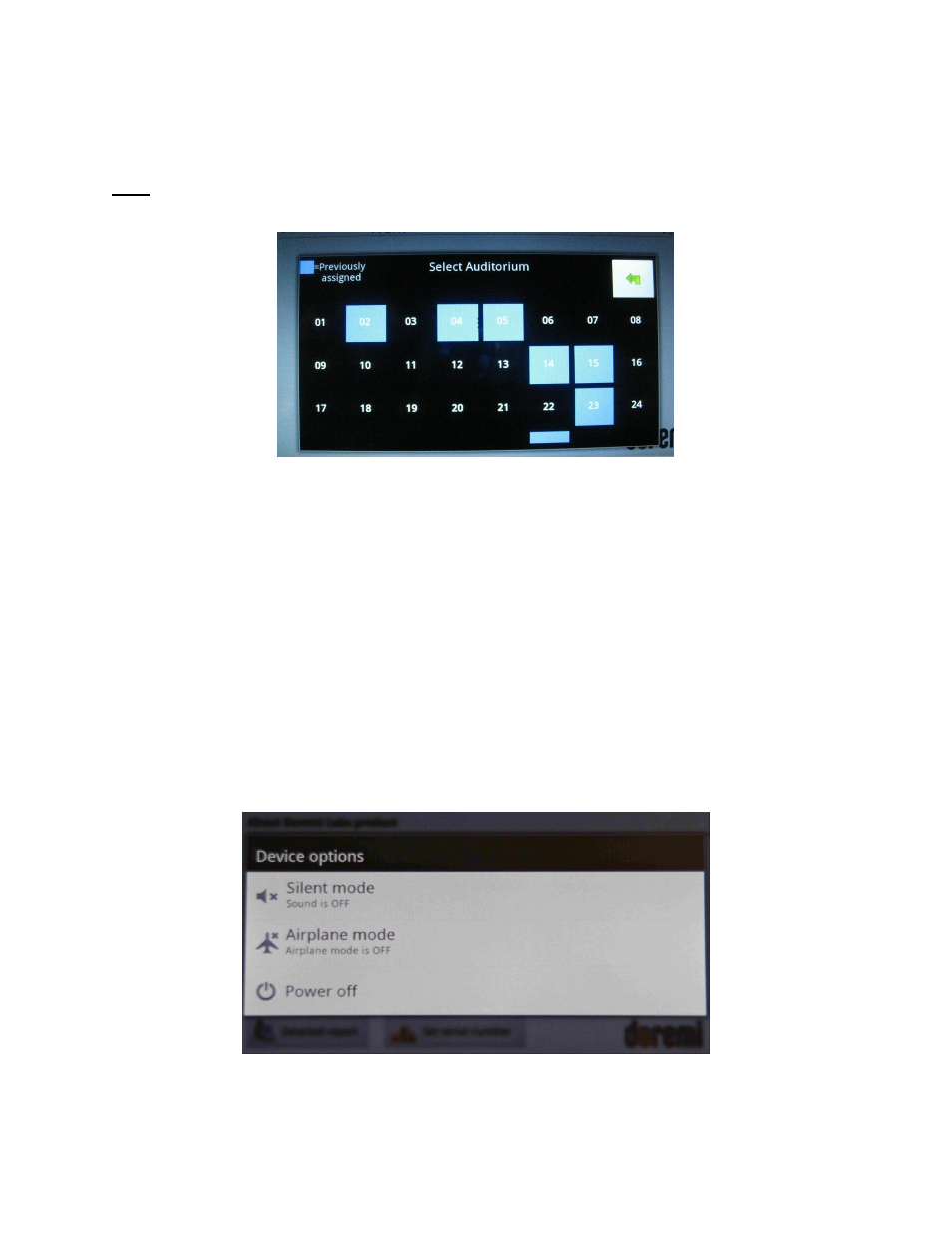

Figure 27: Transmitter Select Auditorium Screen
 Once you have assigned the correct auditorium number, press the Home button (Refer
to Figure 8 for v1.1.2; Refer to Figure 24 for v2.2.0) on the tablet and disconnect the
USB cable connected to the transmitter.
 Label the transmitter with the appropriate auditorium assignment as a reference so that it
is installed in the correct projection booth.
 To configure another transmitter, launch the Fidelio application and connect the
transmitter to the configuration tablet.
 Follow the same steps mentioned above.

Once you have configured all your Fidelio transmitters, power down the Fidelio tablet by
depressing and holding the tablet Power button until the Power Off option appears on
the tablet screen (Figure 28).
Figure 28: Power Off Screen - Tablet v1.1.2
