Chapter 2 - Installation
24 Adept AnyFeeder User’s Guide, Rev. B
2.4 Installing the Pneumatic Line
This section describes the pneumatic installation procedure for the Adept AnyFeeder.
1. Locate the pneumatic connector below the side handle on the Adept AnyFeeder
(see Figure 2-5 ).

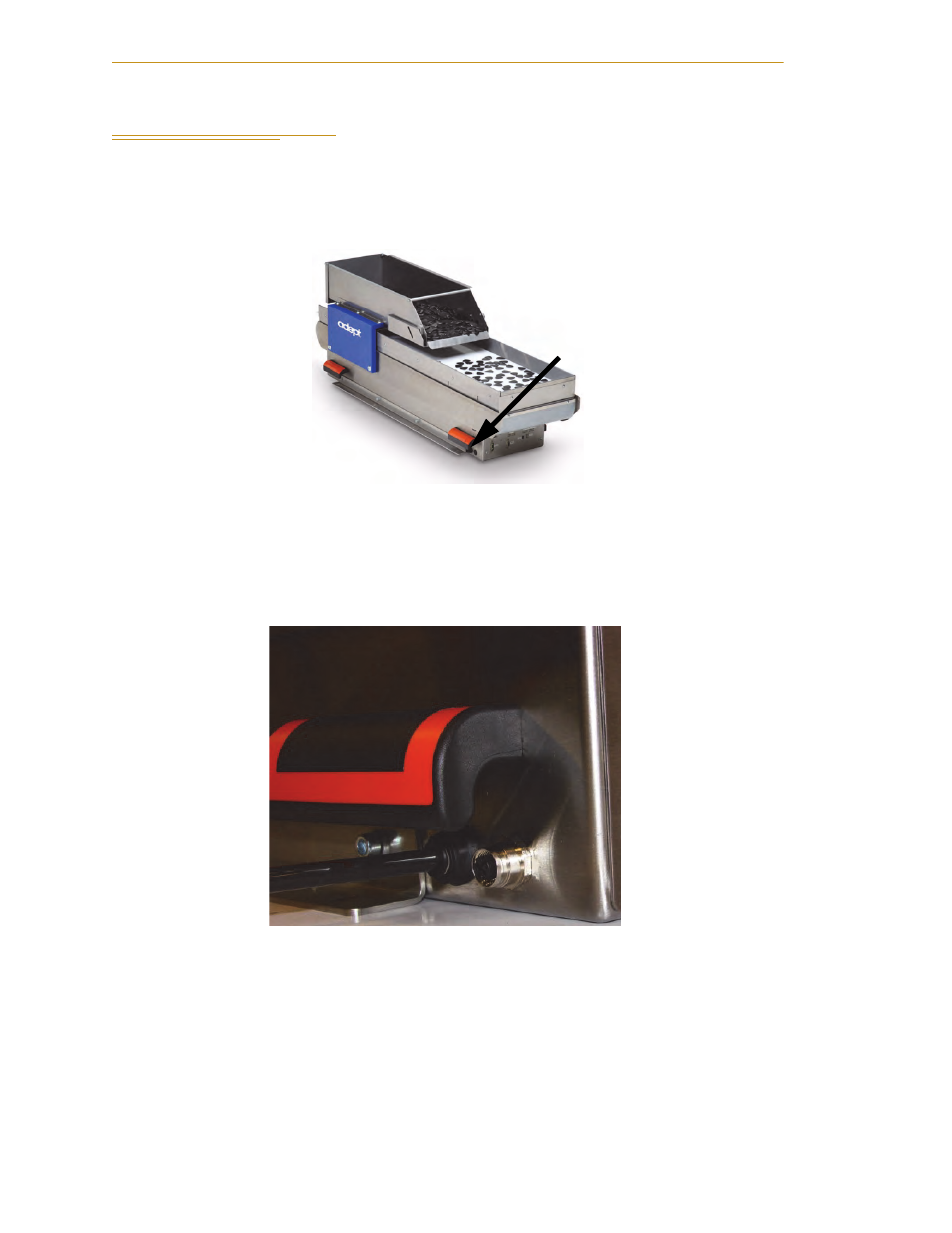

Figure 2-5. Pneumatic Connector Location
2. Prepare an 8 mm OD air line.
3. Attach the air line to the pneumatic connector (see Figure 2-6 ). Do not overtighten
the connection.
Figure 2-6. Air Line Attached to Pneumatic Connector
