4.2.8 ADVANCE MEAS. Menu [3Pi Controller only]
This entry in the MENU 2 screen displays the HARMONICS/TRACE ANALYSIS screen which is
covered in section 4.6. This field can be used in lieu of the MEAS key to directly bring up the
advanced measurements screens.
4.2.9 APPLICATIONS Menus

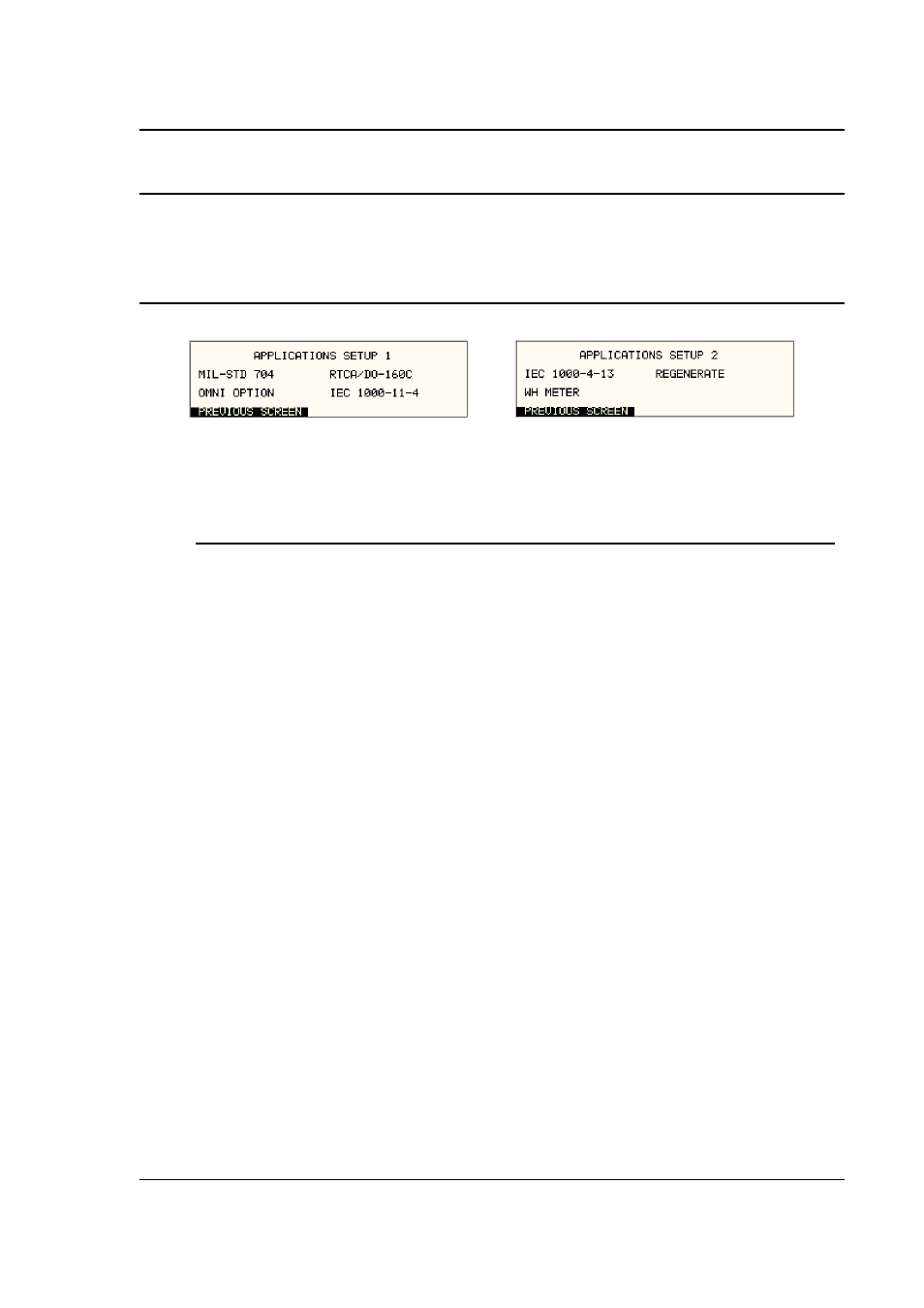

Figure 4-18: APPLICATIONS Menus
The APPLICATIONS menu provides access to the optional application specific pre-programmed
test sequences. Since these test sequences are optional, this menu may have no choices if none
of the options are installed. The following entries may be found in the APPLICATIONS menu:
Entry Description
MIL-STD 704 Test sequence for MIL standard 704 AC and DC tests.
OMNI OPTION This entry selects the OMNI control menu. The OMNI option
provides a lumped reference impedance for use in IEC 61000-3-
3 or IEC 61000-3-11 Flicker test applications. If the OMNI option
is installed, this screen allows the impedance to be ENGAGED
or BYPASSED.
RTCA/DO-160 Test sequence for RTCA DO160 commercial aviation AC and
DC tests.
IEC-1000-4-11 Test sequences for IEC 61000-4-11 Voltage Dips and Variations
test standard.
IEC-1000-4-13 Test sequence for IEC 61000-4-13 Harmonics and Inter
harmonics test standard.
WH METER Watt Hour meter measurement option. Tracks energy usage
over a period of time and calculates Watt Hours used.
REGENERATE The REGENERATE entry is enabled only if the –SNK option is
installed. It provides access to the setting for driving
regenerative load.
