User Manual – Rev AY AMETEK Programmable Power
MX Series 20
2.1.3 AC Measurements
Measurement specifications apply to MX30-3 / MX30-3Pi / MX45-3 or MX45-3Pi in three-phase mode.
See notes for other models and configurations.
Parameter Range Accuracy (
±
) Resolution
Frequency 16.00 - 820.0 Hz 0.01% + 0.01 Hz 0.01 to 81.91 Hz
0.1 to 500 Hz
RMS Voltage 0 - 400 Volts 0.05V + 0.02%, <100 Hz
0.1V + 0.02%, 100-820 Hz 0.01 Volt
RMS Current 0 - 150 Amps 0.15A + 0.02%, <100 Hz
0.3A + 0.02%, 100-820 Hz 0.01 Amp
Peak Current 0 - 400 Amps 0.15A + 0.02%, <100 Hz
0.3A + 0.02%, 100-820 Hz 0.01 Amp
VA Power 0 - 15 KVA 30 VA + 0.1%, <100 Hz
60 VA + 0.1%, 100-820 Hz 10 VA
Real Power 0 - 15 KW 30 W + 0.1%, <100 Hz
60 W + 0.1%, 100-820 Hz 10 W
Power Factor
(>0.2kVA) 0.00 - 1.00 0.01, <100 Hz
0.02, 100-820 Hz 0.01
Note: Accuracy specifications are valid above 100 counts. For current and power measurements,
specifications apply from 2% to 100% of measurement range. Current and Power range and accuracy
specifications are times three for MX45-1, MX60, MX90 and MX135 or MX30-3Pi / MX45-3Pi in single-
phase mode.
Note: Power factor accuracy applies for PF > 0.5 and VA > 50 % of max.
Current
(DC)
Voltage (DC)
60
50
40
30
20
10
0
20 40 100 150 200 300 400
62.5 A
31 A
25 A
Full
Power
Full
Power

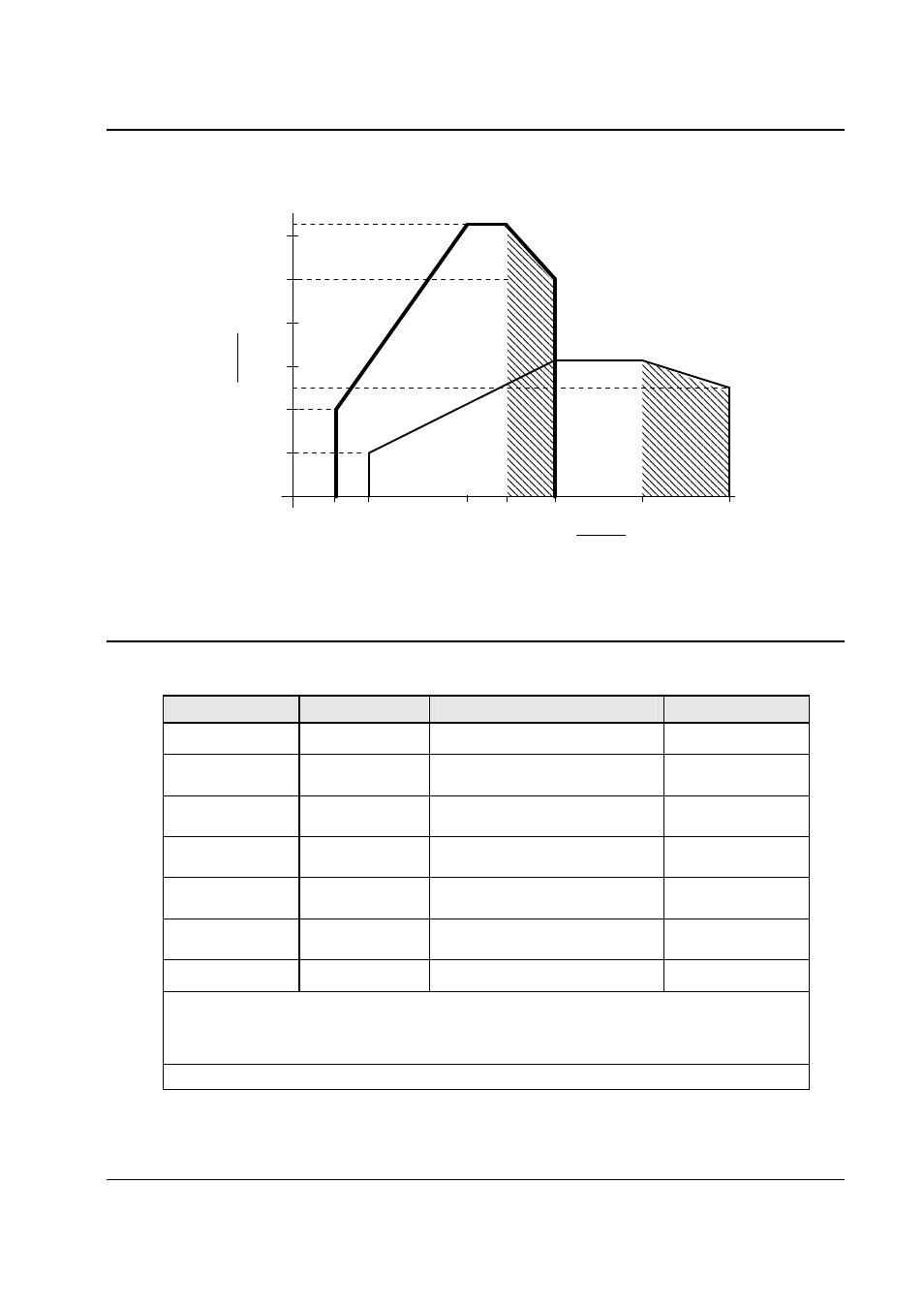

Figure 2-6: Voltage / Current Rating Chart for 200/400 V DC Ranges – Derated
