3.6.3 MX30-3, MX45-3, MX30-3Pi and MX45-3Pi 3ø mode Output Wiring Diagram
Figure 3-8 shows the required output connections for a MX30-3, MX45-3 three phase or an
MX30-3Pi and MX45-3Pi in three-phase mode output configuration (rear-view perspective). See
section 3.6.2 for the MX30-3Pi or MX45-3Pi in single-phase mode.
Always disconnect all input power from the MX before removing the front panel cover that
provides access to the input and output terminal connections. Route the wires from the back of
the MX to the front in the provided cable guides.

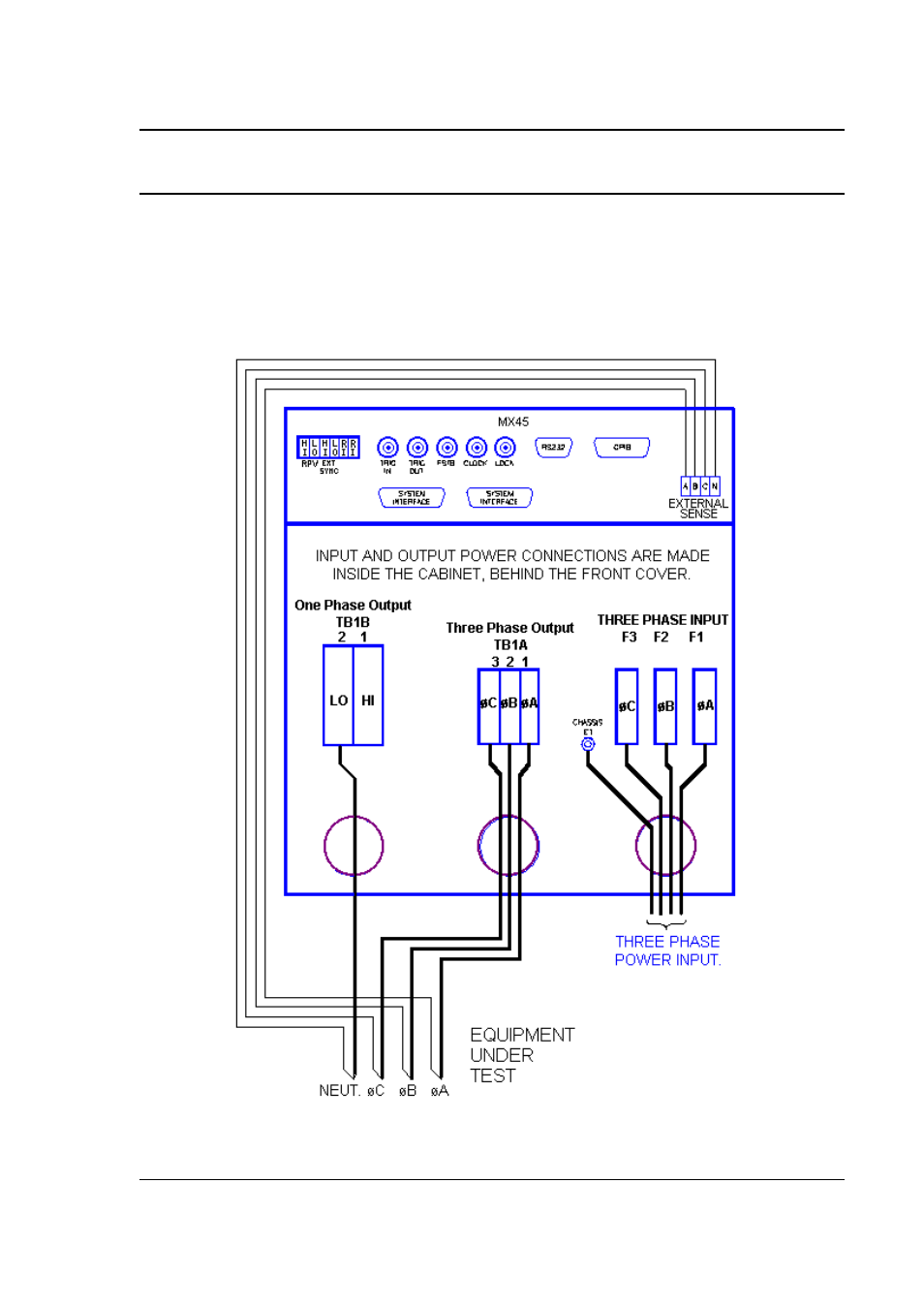

Figure 3-8: MX30-3 / MX45-3 Output Wiring (Rear view)
