CRS-500 1:N Redundancy System Revision 2
Updating Firmware MN-CRS500
5–9

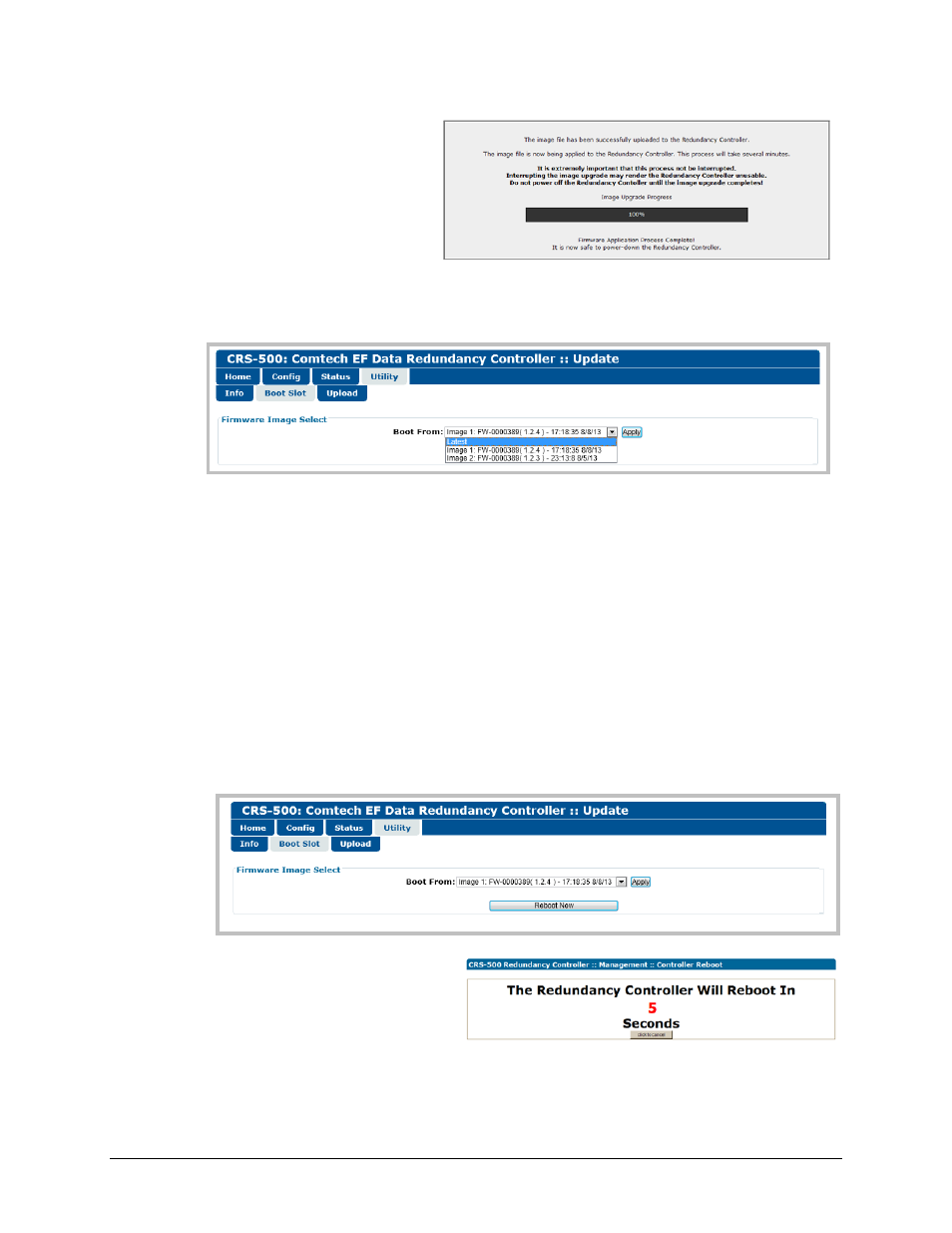

Once the transfer has completed
(i.e., 100%), the “Firmware
Application Process Complete!”
message appears:
4. Open the Utility | Boot Slot page. Use the ‘Boot From:’ drop-down list to verify that the
new firmware is reported in the unselected Image slot (depending on how the ‘Boot From:’
setting was defined prior to the firmware file upload process):
Select the desired ‘Boot From:’ preference. Note the following:
• Latest – Automatically chooses the Image containing the most recent firmware upload;
• Image #1 – Chooses the Image loaded into Slot 1;
• Image #2 – Chooses the Image loaded into Slot 2.
Click [Apply] to commit the selection to memory. From this point forward, the system will
reboot using this selection, until you choose otherwise.
5. Reboot the system.
Open the Utility | Boot Slot page, and click [Reboot Now] to power cycle the system:
A 5-second countdown window
appears before the system
reboots:
