CRS-500 1:N Redundancy System

Revision 2

Appendix B

MN-CRS500

B–2

B.2

CRS-500 CSU Connectors and Pinouts

B.2.1 CRS-530 System Controller Module

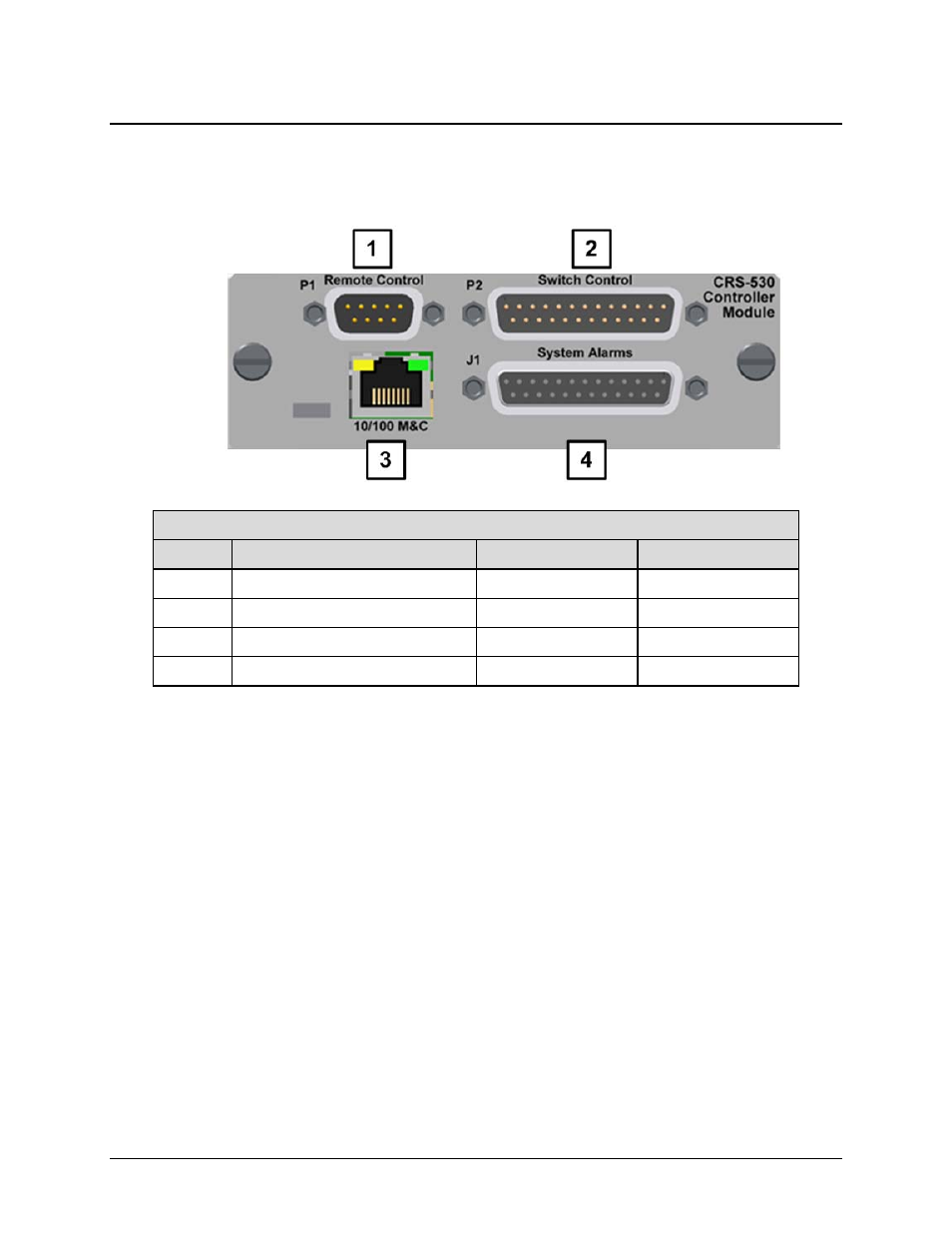

CRS-530 System Controller Module

Feature

Connector

Connector Type

See Chapter Sect.

1

P1 | Remote Control

DB-9M

B.2.1.1

2

P2 | Switch Control

DB-25M

B.2.1.2

3

10/100 M&C

RJ-45

B.2.1.3

4

J1 | System Alarms

DB-25F

B.2.1.4
