CRS-500 1:N Redundancy System

Revision 2

Cables and Connections

MN-CRS500

4–37

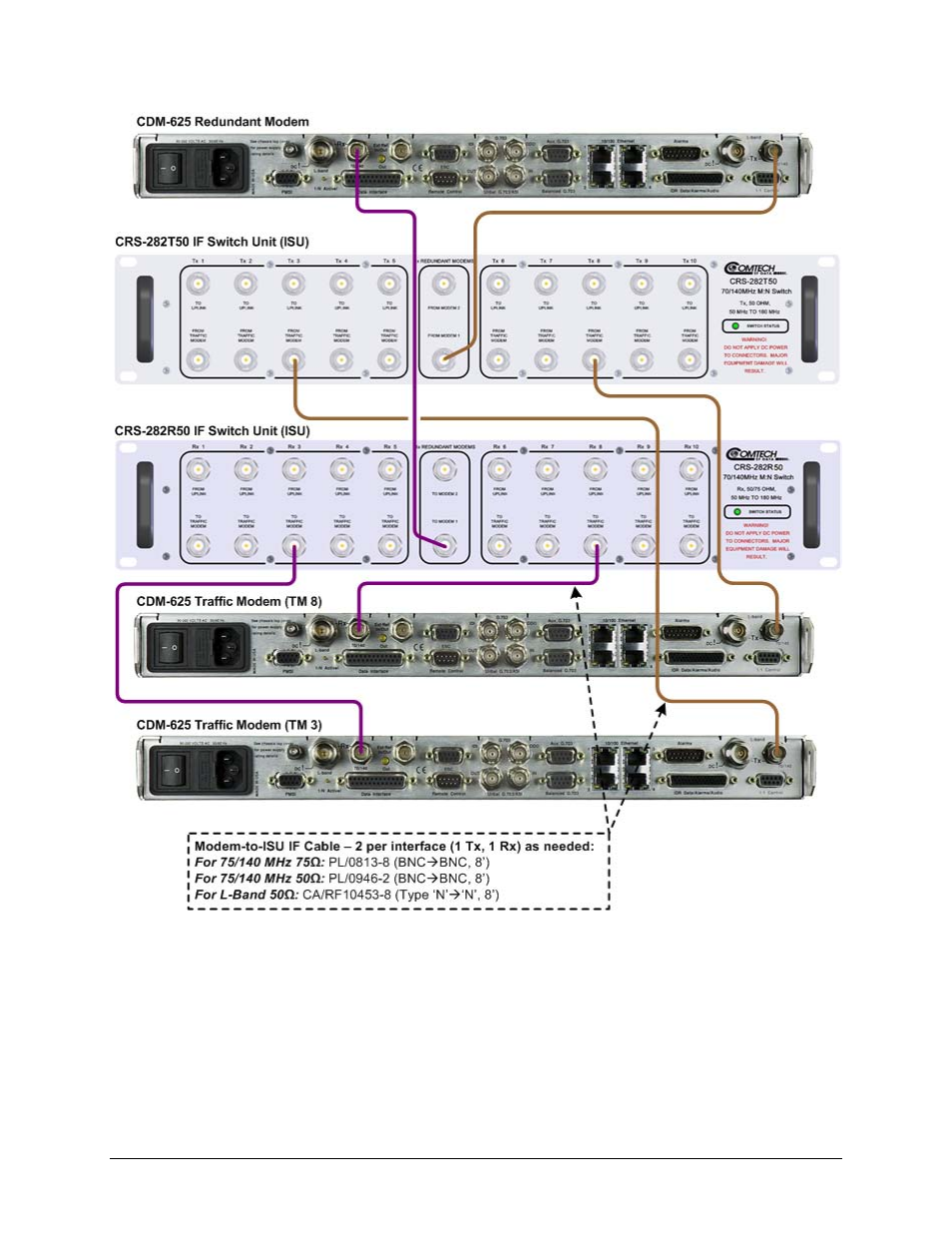

Figure 4-13. CRS-500 1:N IF Cabling Example 2 – CRS-282xx

CDM-625

(Connections shown for TMs 3 and 8 only)
