Comtech EF Data CRS-500 - Manual (Page 121)

CRS-500 1:N Redundancy System Revision 2
CSU Front Panel Operation MN-CRS500
7–5

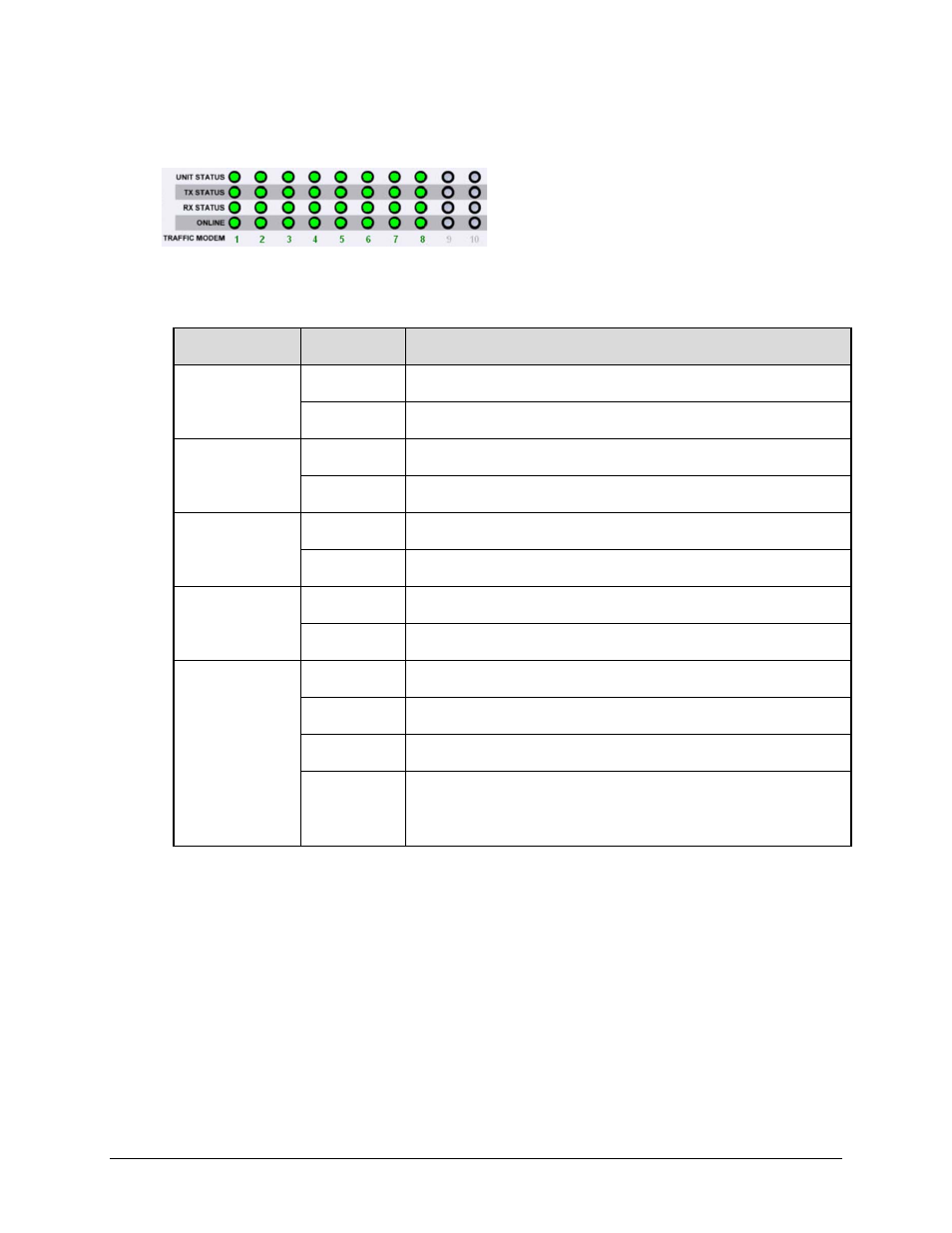

7.1.3.2 Traffic Modem Status LED Indicators
These sets of four front panel LEDs indicate
operational status for up to 10 Traffic Modems.
Each LED set is functional when the CRS-500
detects the presence of a Traffic Modem. When
active, the LEDS behave as described in Table 7-2:
Table 7-2. Traffic Modem Status LED Indicators Group
LED Color / State Condition
UNIT STATUS
Green Normal operation (no Unit, Tx or Rx Fault)
Red Unit Fault
TX STATUS
Green Normal operation (no Tx Fault)
Off Tx Fault
RX STATUS
Green Normal operation (no Rx Fault)
Off Rx Fault
ONLINE
Green Normal operation (Modem traffic active to/from user)
Off User traffic is routed through Redundant Modem 1
TRAFFIC MODEM
(Numerical
Indicators 1-10)
Green Traffic Modem is active and communicating with CRS-500
Green Flashing Traffic Modem is bridged or backed up by Redundant Modem 1
Red Flashing Ethernet communication error between CRS-500 and Traffic Modem
Orange
TMI present but not active
Note: UNIT STATUS, TX STATUS, RX STATUS, and ONLINE LEDs will not be
illuminated in this state
