eZ-TOMAS & eZ-TOMAS Remote 887591 Edit Menu 3-16
Spectral Band Toolkit Tabs – Examples
Bearing
Faults
Motors
Gears
Pumps
Fans
Belts

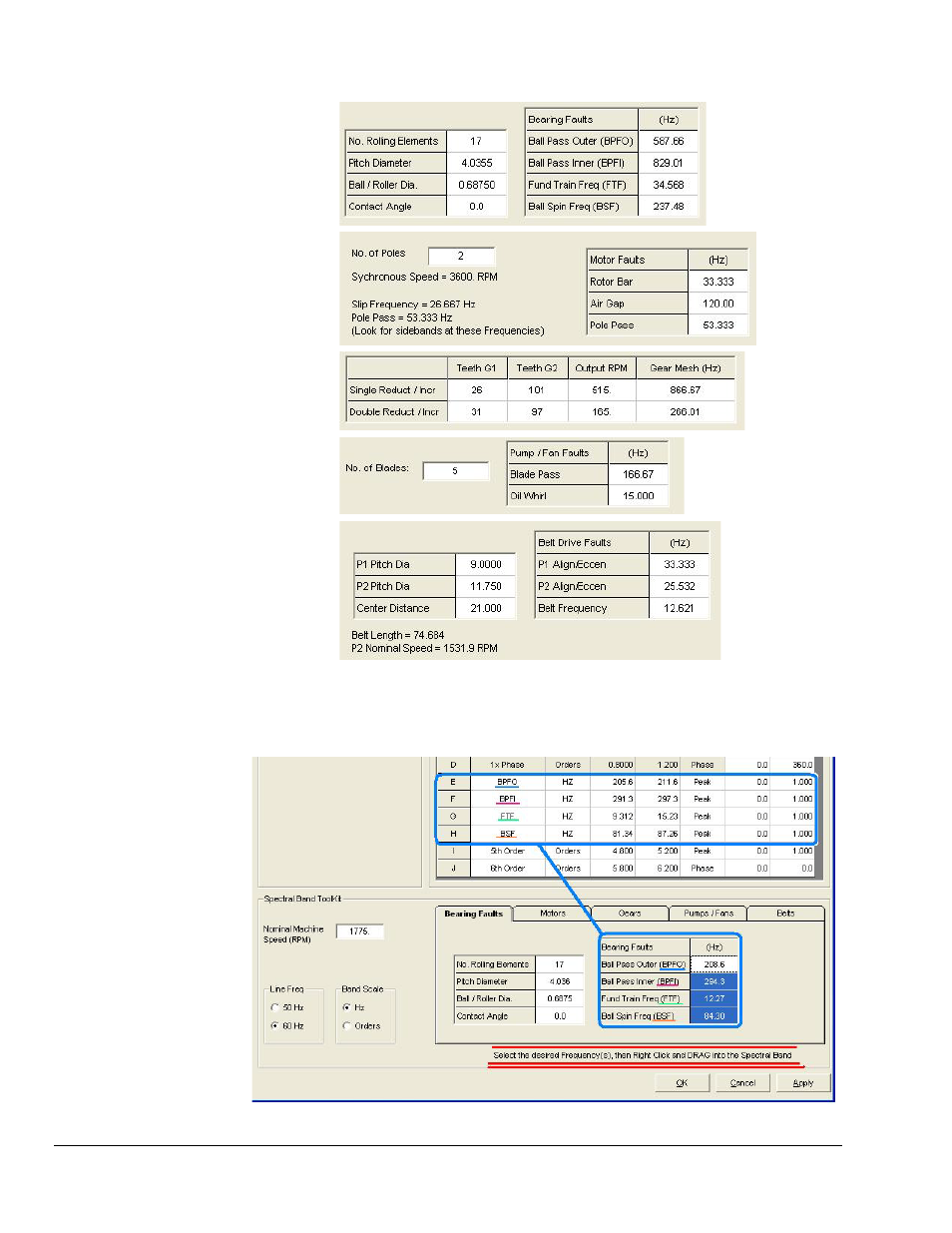

Each of the tabs includes parameters related to a specific type of fault. The tabs calculate and display frequencies
[or orders] which you can select with the left mouse button, then [with a click of the right mouse button] drag into
the Spectral Bands panel. In the following figure, 4 frequencies associated with bearing faults have been highlighted
and dragged into position for spectral bands E, F, G, and H.
Applying Bearing Fault Frequencies from the Toolkit to Bands E, F, G, and H
