eZ-TOMAS & eZ-TOMAS Remote 887491 Display Menu … Plots Plot Examples 7-14
Bode Displays
Bode Displays show vibration amplitude and phase as a function of rotating speed. You can display the runout
compensation values on the same plot by clicking the <Runout Compensation> button (see Bode, Figure 3).
Runout Compensation is a vector math operation, in which the referenced first order amplitude and phase vector is
subtracted from the displayed first order vector.

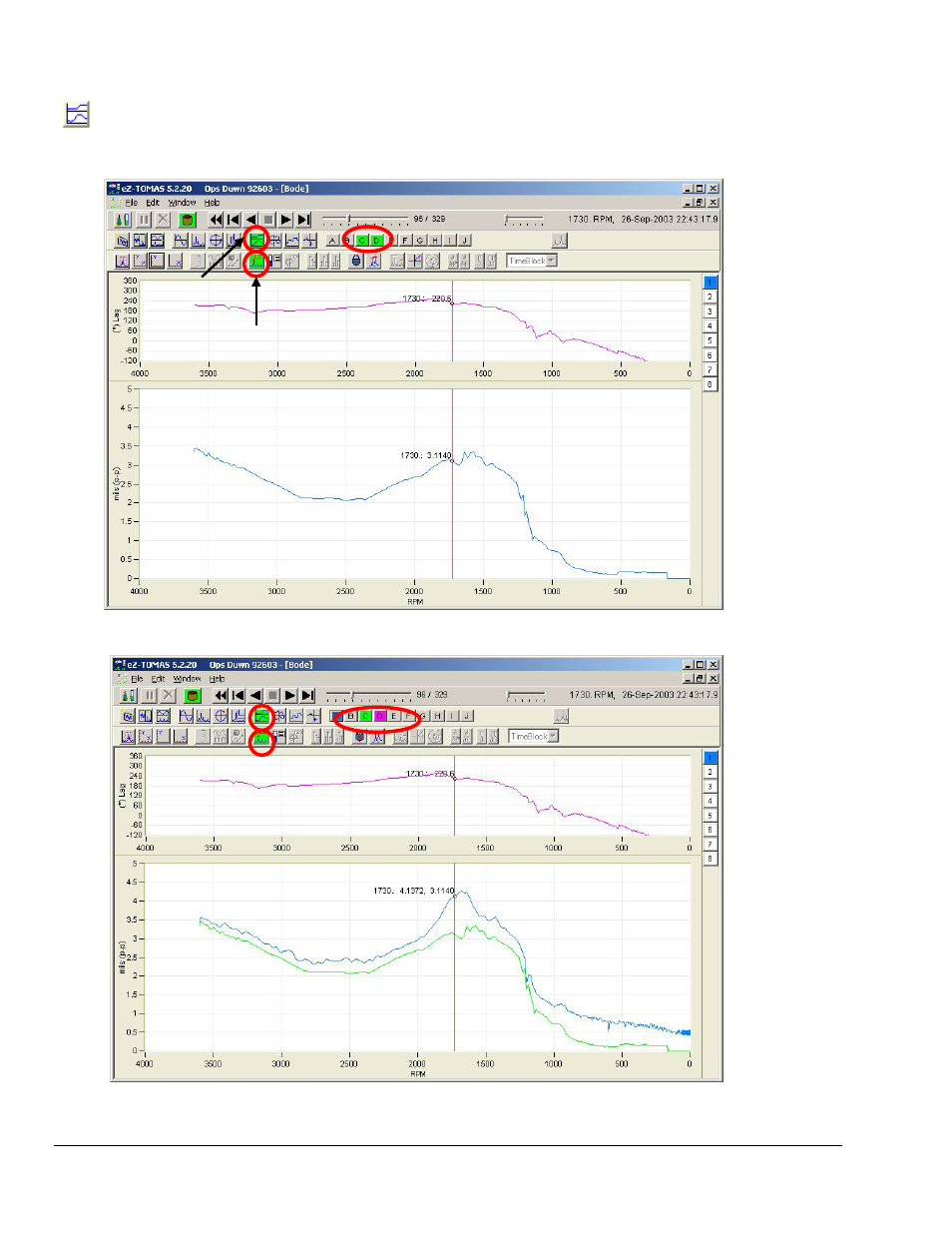

Bode, Fig. 1 - Channel 1, 1xA & 1xP, Cursor
Bode, Fig. 2 - Channel 1, Overall & 1xA & 1xP, Cursor
BODE
DISPLAY CURSOR
VALUES
