Measurement Computing eZ-TOMAS version 7.1.x - Manual (Page 90)

eZ-TOMAS & eZ-TOMAS Remote 927692
Display Menu …. Reports & Logs 8-6

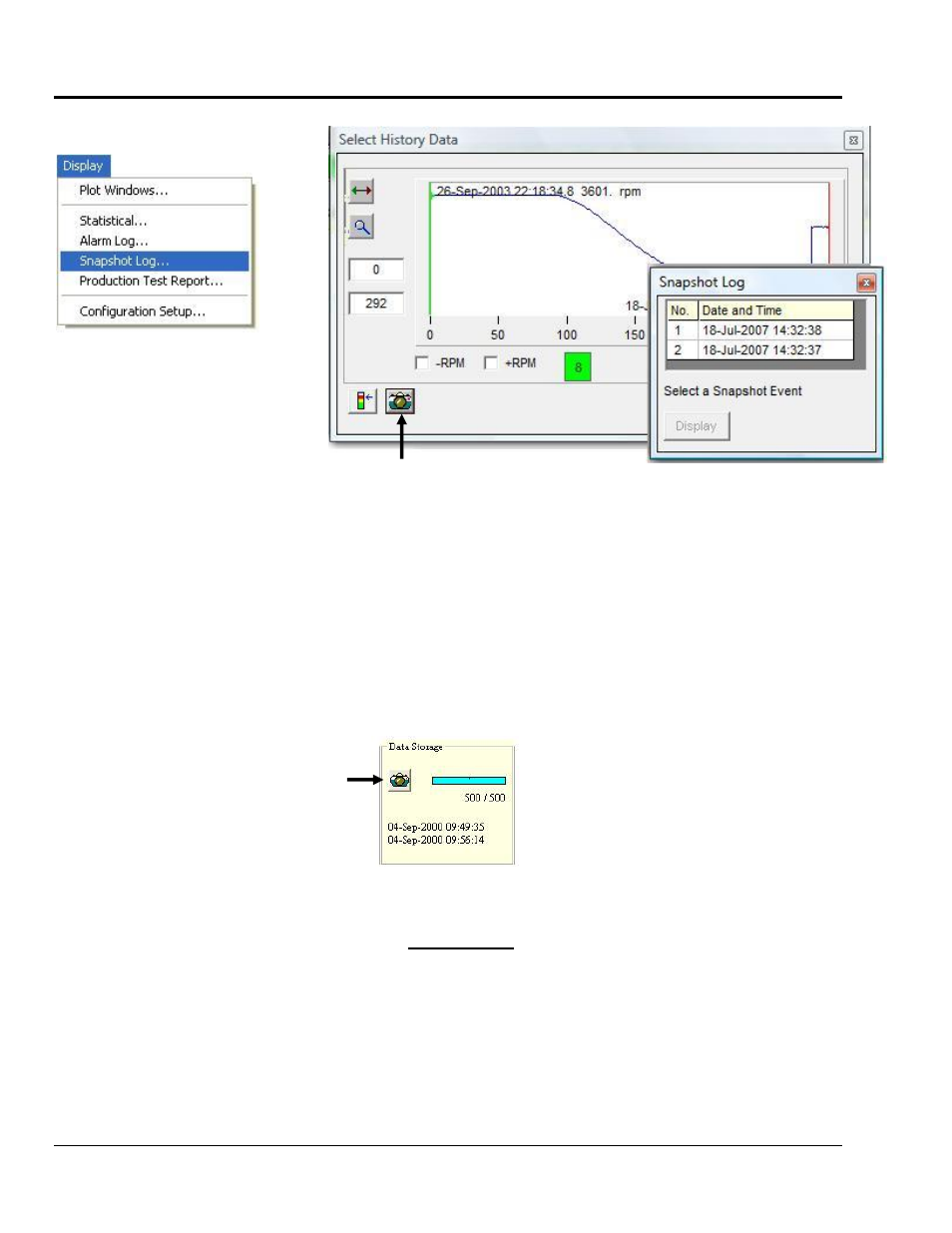

Snapshot Log
Snapshot Log Button
The Snapshot Log can be accessed from the Gauge Window’s Display pull-down menu, or from the
History Data Window.
The Snapshot Log file contains entries which were created whenever the user clicked the <Snapshot>
button, which is located in the Gauge Window’s Data Storage panel (see following figure). That button
should not be confused with the <Show Snapshot Log> button, which is located in the History Data
Window.
The <Snapshot> button captures “N” seconds of continuous data which is stored in the log. In the above
figure the log contains 2 entries.
<Snapshot Button>
on the Gauge Window
This similar button [on the gauge window] can
also be used to take a snapshot of data.
Do not confuse this button with the Snapshot Log Button.
Two Ways to Access
the Snapshot Log
