eZ-TOMAS & eZ-TOMAS Remote 887491 Display Menu … Plots Plot Examples 7-11

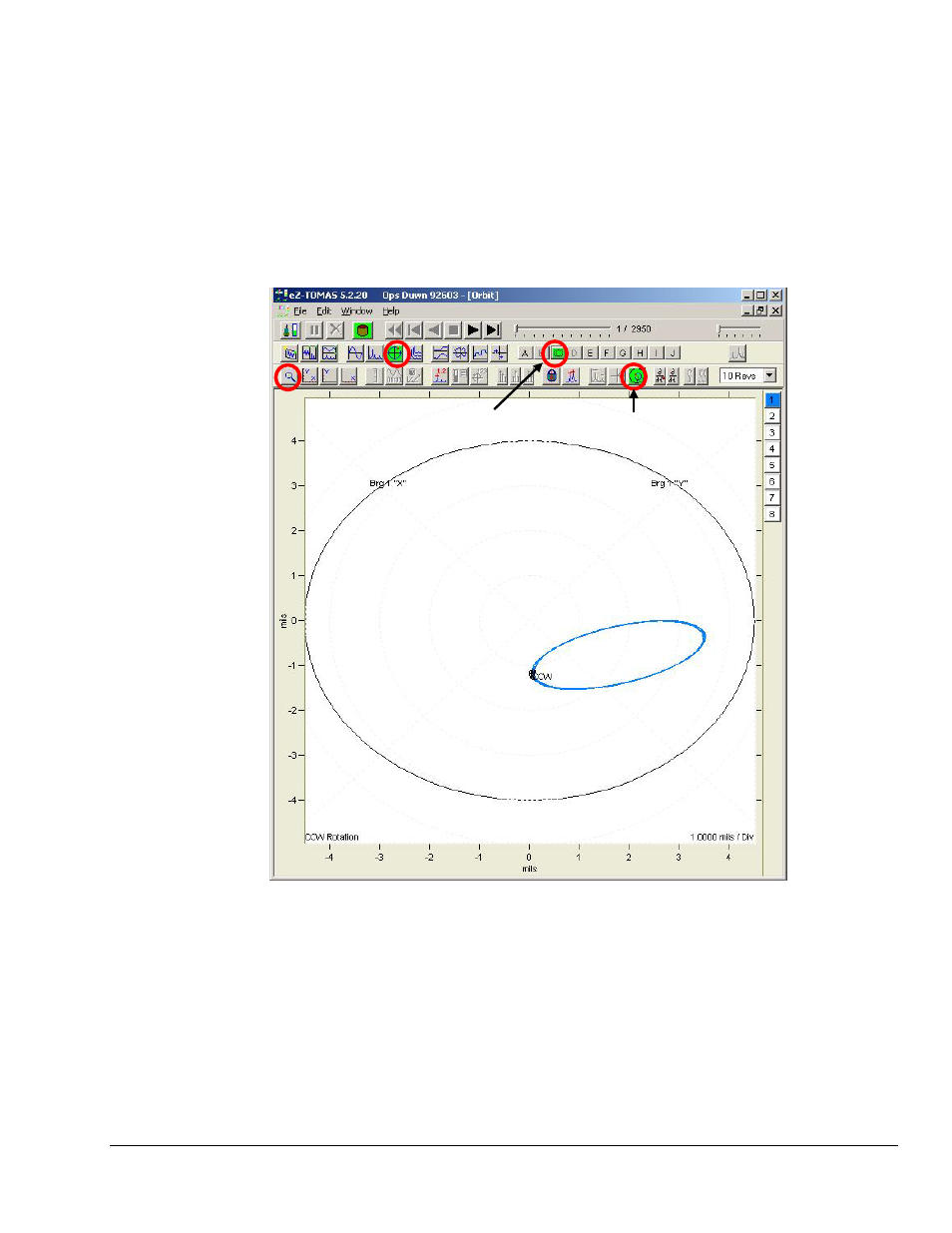

Orbit, Fig. 4 - Chs 1 & 2* Filtered 1x, 10 Revs, Autoscale, Overlay Bearing Clearance Circle
* Channel 2 Pairing is from the Setup Configuration Window, Input Channels Tab, XY Pair Column
SPECTRAL BAND C OVERLAY BEARING
(1x Amp / Phase) CLEARANCE CIRCLE
