Page 44 of 51 Visualisation of measurements
N
UMERIC PRESENTATION

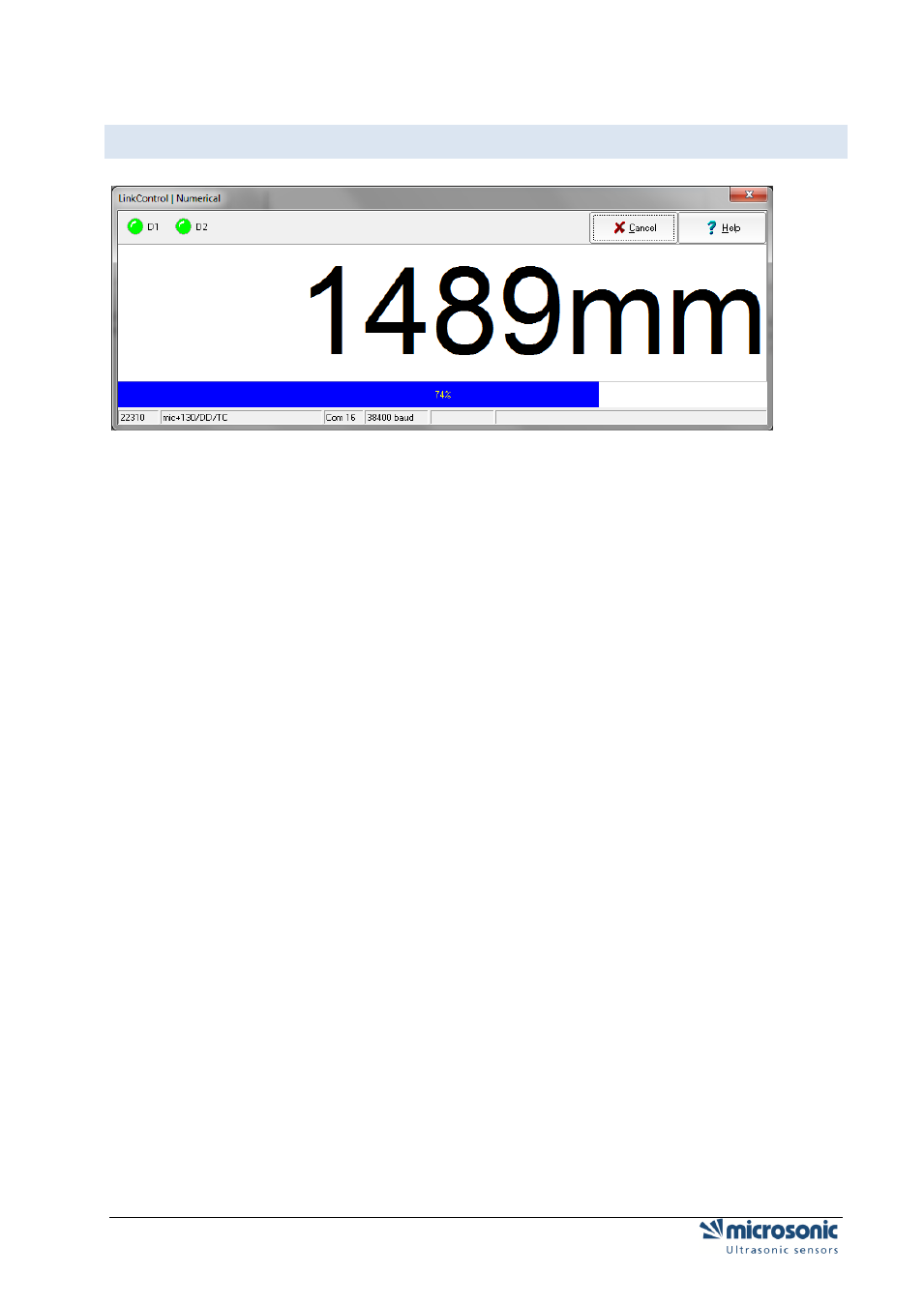

The measuring value is displayed in "mm" and as a bar graph in percent. The selected detection range is
equivalent to 100%.
The LED's are showing the required state of the switching outputs D1 and D2 respectively the analogue
output. To have correct results the values in the input masks has to be identical to the values stored in the
sensor.
