This lights when the display master deck is in recording
standby or playback standby mode.
A DISC, GROUP, TRACK display
DISC
lights up when the display master deck has a
disc loaded and is stopped.
GROUP
lights up when the display master is the CD
deck and the Directory playback mode is on, or when
the display master is the MD deck and the group
playback mode is on.
TRACK
is indicated during playback or playback
standby.
S Character display
Disc information, track information, menu, message
and operation status are displayed.
D
This lights when the Timer Play function is on.
It flashes if a disc is not loaded when the Timer Play
function is on.
F CAPS,
These light during title input to indicate either CAPS or
Japanese character mode. In lower case letter mode,
there is no indication.
G EOM
This lights when the remaining track/disc time is less
than the EOM set value.

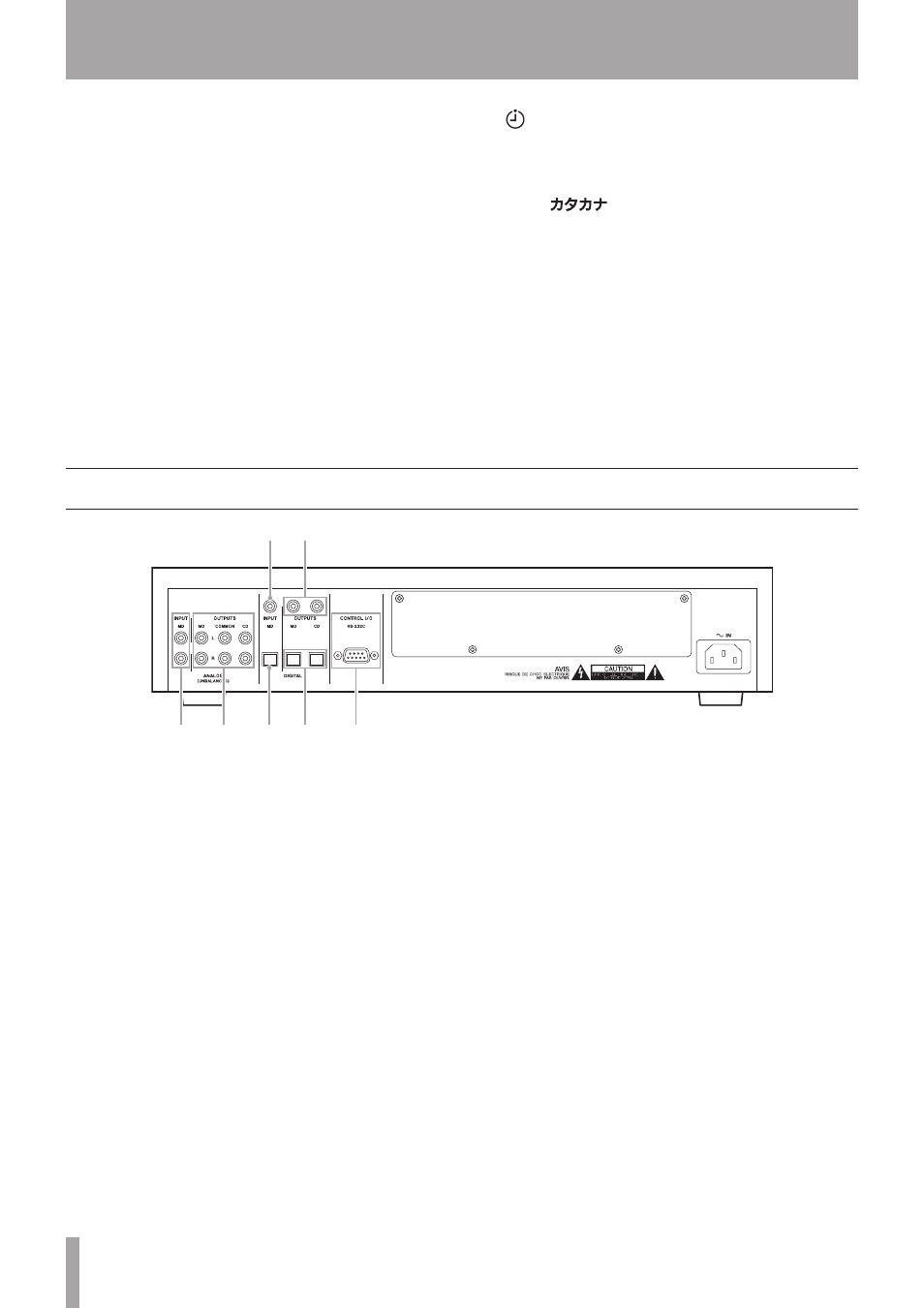

Rear Panel
K L Z :
H J
X
H DIGITAL INPUT MD (coaxial) Terminal
This is the digital input terminal (coaxial) for the MD
deck.
J DIGITAL OUTPUTS – MD – CD (coaxial) Terminals
These are the digital output terminals (coaxial). The
playback signals from the MD deck and the CD deck
are output through their respective digital output
terminals.
K ANALOG INPUT MD (UNBALANCED) Terminals
The analog line input terminals for the MD deck are for
RCA pin jacks. Rated input level is –10 dBV.
L ANALOG OUTPUTS – MD – COMMON – CD
(UNBALANCED) Terminals
The analog line output terminals are for RCA pin jacks.
Rated output level is –10 dBV.
MD: Outputs the MD deck signal. During playback, the
playback signal is output; during input monitoring, the
source signal is output.
COMMON: Outputs CD and MD signals. During
playback of both decks, the output signal depends on
the COMMON? option setting on the SYSTEM menu.
CD: Outputs the CD deck signal.
: DIGITAL INPUT MD (optical) Termainal
This is the digital (optical) input terminal for the MD
deck.
Z DIGITAL OUTPUTS – MD – CD (optical) Terminals
These are the digital output terminals (optical). The
playback signals from the MD deck and the CD deck
are output through their respective digital output
terminals.
X CONTROL I/O (RS-232C) Connector
RS-232C compatible serial control from an external
computer can be performed.
