2
I
NSTALLATION
This chapter contains instructions for physically installing the Verilink PRISM
3002 in a 1024 chassis as well as information concerning the communication ports
and power supply on the rear of the unit.
Unpacking and
Inspection After receiving the shipment, inspect the shipping container and contents. If the
contents of the shipment are incomplete or, if there is mechanical damage or
defect, notify Verilink Customer Service. If the shipping container or cushioning
material is damaged, notify the carrier and Verilink immediately and make a
notation on the delivery receipt that the container was damaged (if possible, obtain
the signature and name of the delivery person). Retain the packaging material until
the contents of the shipment have been checked for completeness and the
instrument has been checked both mechanically and electrically.
Supplied
Materials The baseline PRISM 3002 shipment contains three items:
✦ PRISM 3002 unit
✦ T1 network cable (P/N 9-1544-619-009)
✦ Reference manual with configuration guide
Specific applications may require additional cables and adapters. Ordering
information is located on Table 1-2 on page 1-5. Contact Verilink Customer
Service for further assistance.
Mounting The Verilink 3002 is a modular unit that plugs
into a Verilink 1024 chassis which holds up to
24 units.
The chassis can be installed in either a 19- or
23-inch rack using four screws.
The 3002 is designed for convection cooling.
Mount the 1024 chassis with a top and bottom clearance of at least 1¾ inches.

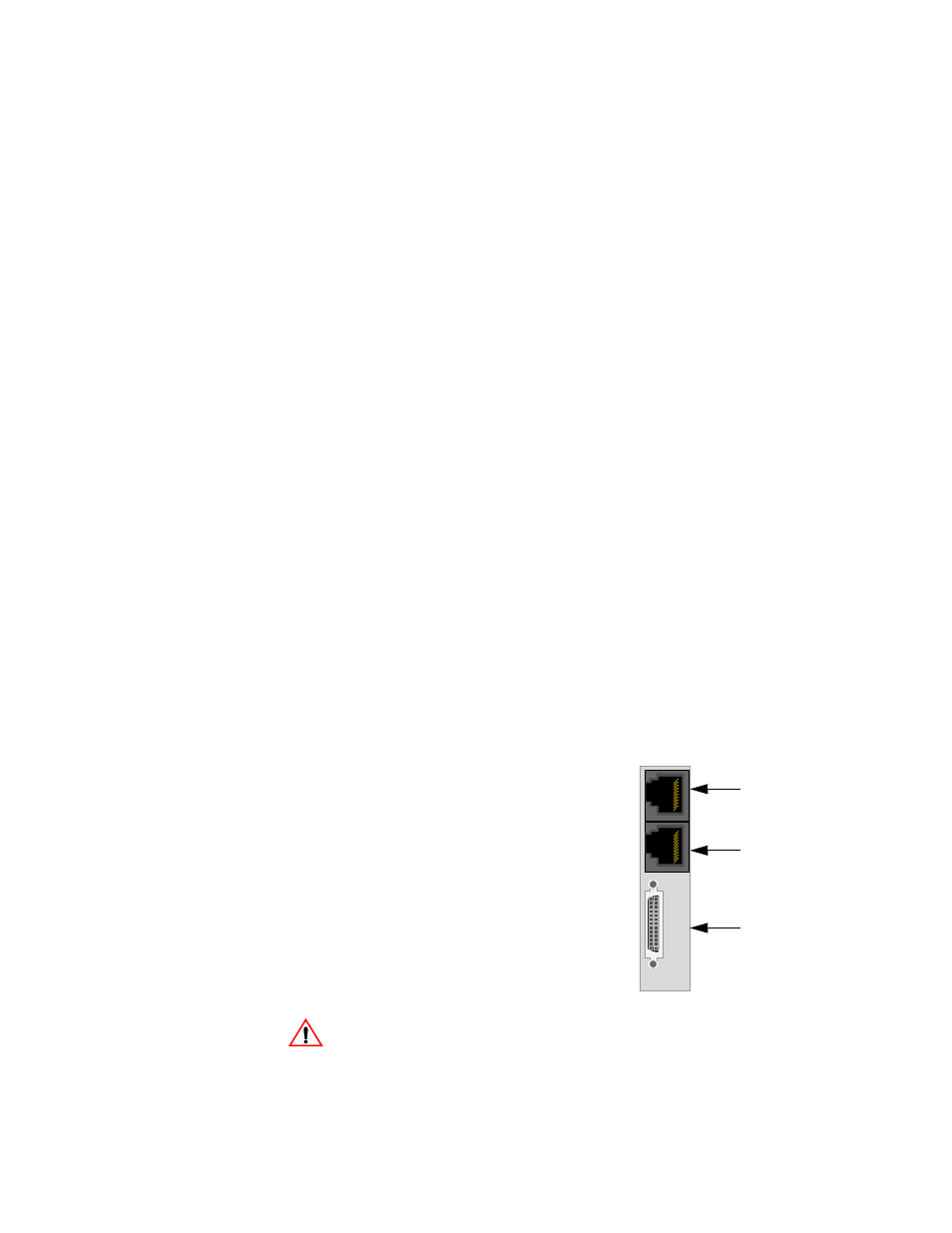

Figure 2-1 3002 Rear Panel
NET (Network)
DBU (Dial Backup
Data Port
V
.35
