Installation Guide
12

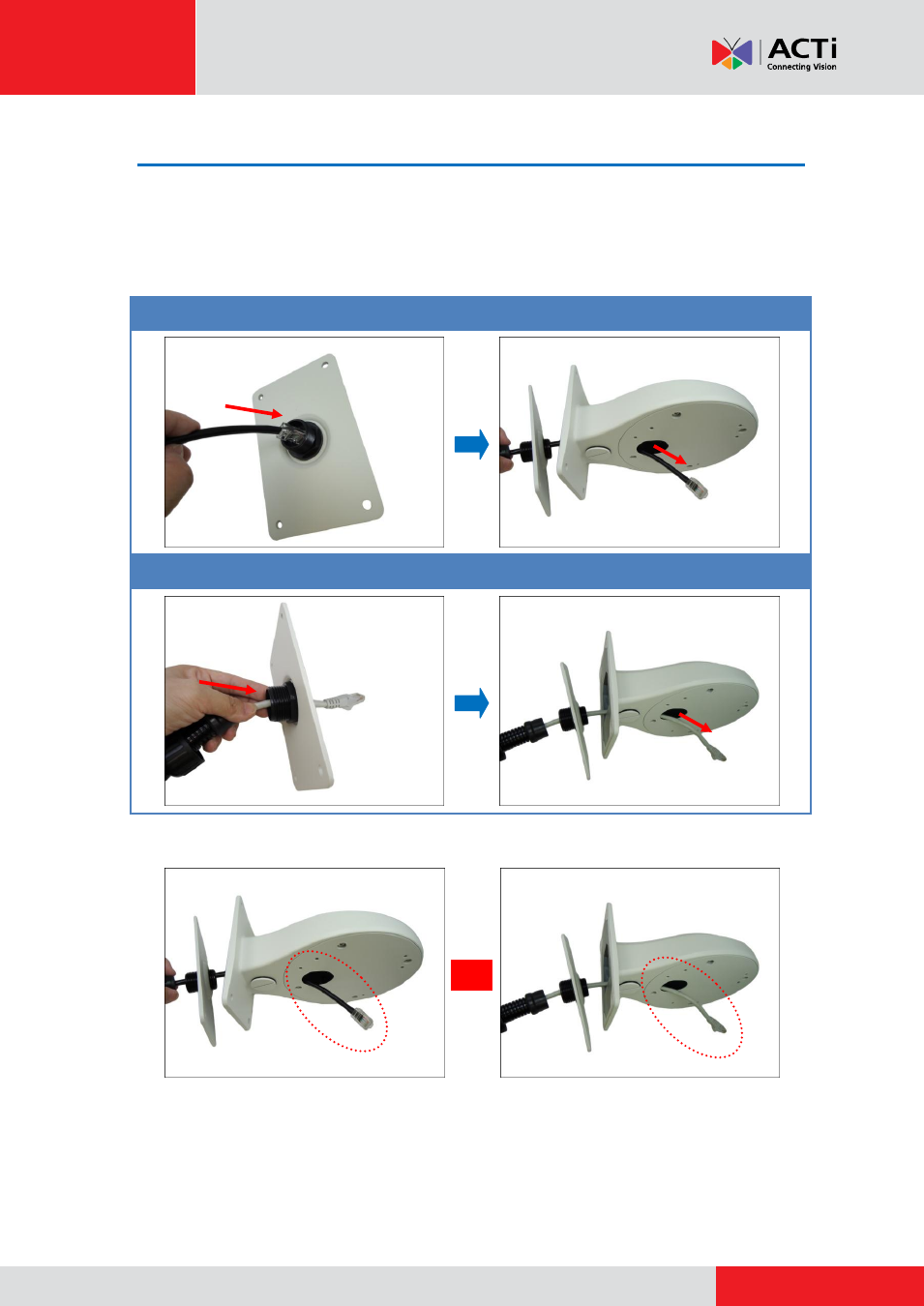

Step 3: Route the Cable Through the Wall Mount
1. Without connecting the cable/conduit gland parts, pull enough length of the network cable
(and other cables, such as power or input/output device, if any).
2. Insert the cable through the back plate and the wall mount and route the cable to go through
the hole marked below.
Using the Cable Gland
Using the Conduit Gland
3. Make sure to leave enough length of cable to connect to the camera later.
Cable Gland Solution Conduit Gland Solution
NOTE: When using the naked cable with the cable gland solution, be sure to pull enough
length of the cable to connect to the camera later. Once the clamping nut is tightened, the
cable cannot be pulled anymore.
or
