Installation Guide

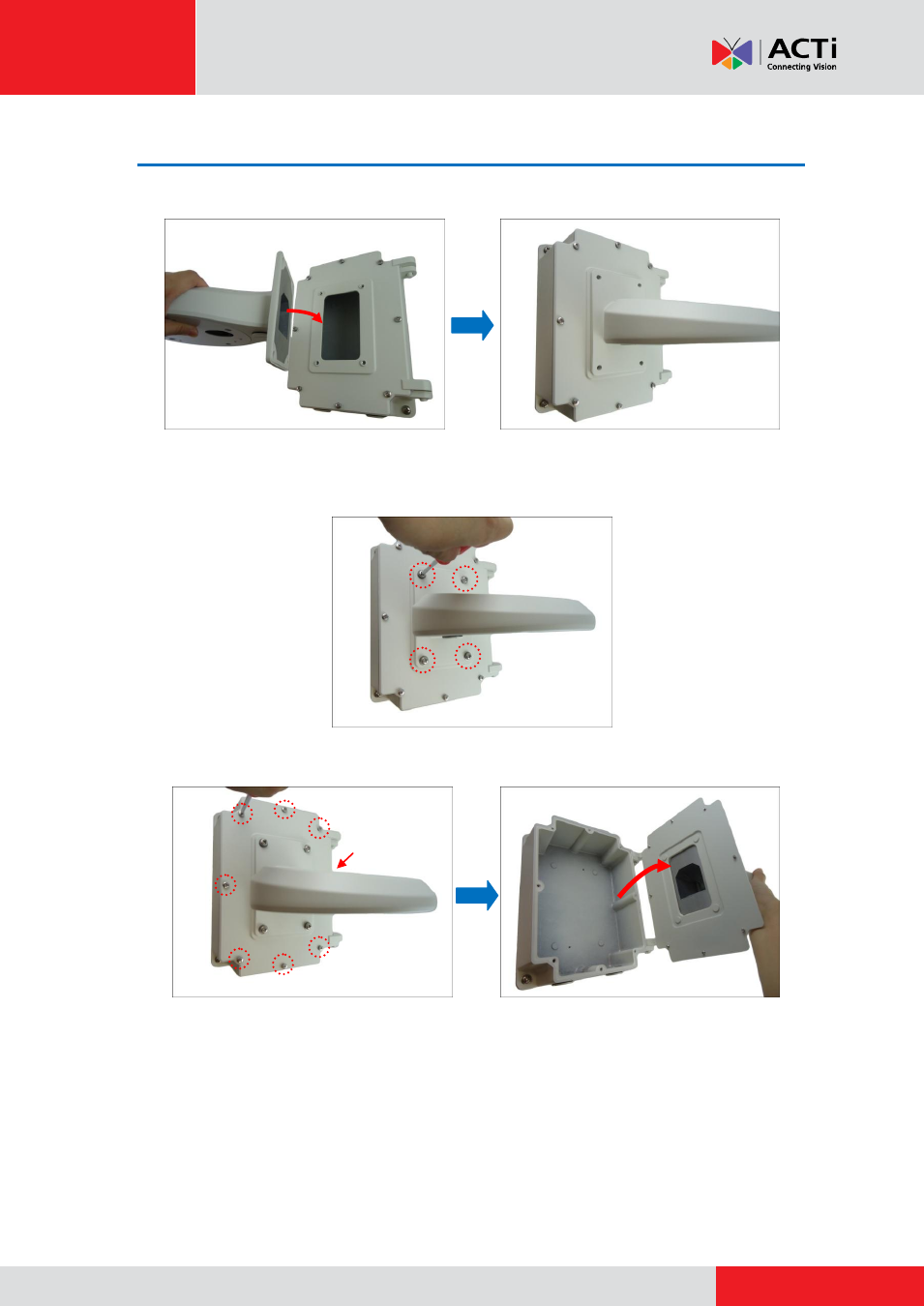

Step 2: Install the Wall Mount
1.
Without attaching the base plate, align the Wall Mount to the Junction Box.
2.
Attach the four M6x10 screws (bundled with the Junction Box) to secure the Wall Mount to
the Junction Box.
3.
Loosen the eight (8) screws to open the Junction Box door.
