Waterproof Solution with Naked Cable
This section describes the procedures in using the bundled cable gland and an exterior-grade
Ethernet cable.

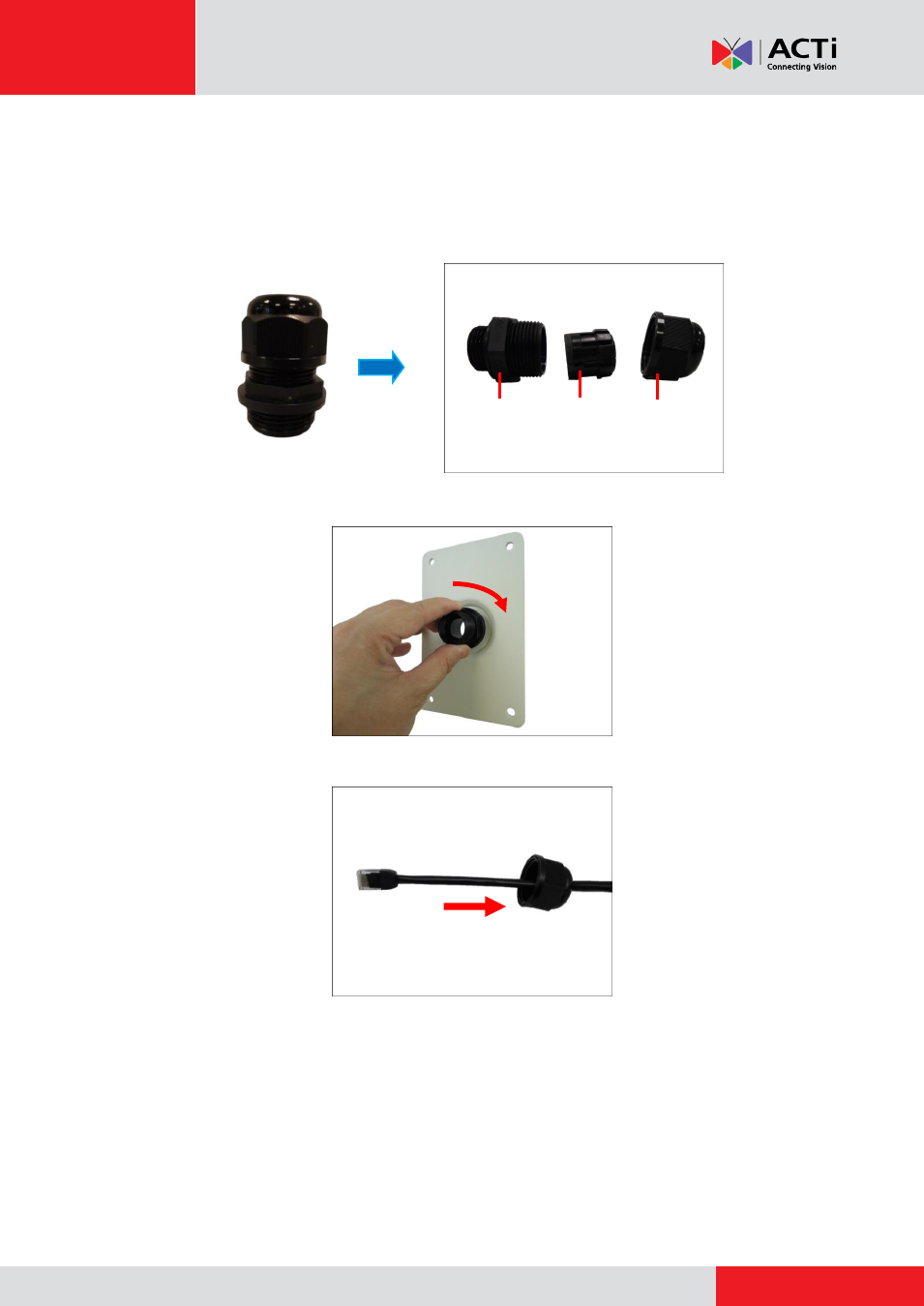

1. Disassemble the cable gland as shown below:
2. Attach the gland body to the cable hole of the back plate.
3. Insert the clamping nut through the cable.
Body
(with Washer)
Sealing Insert
with Claw
Clamping
Nut
