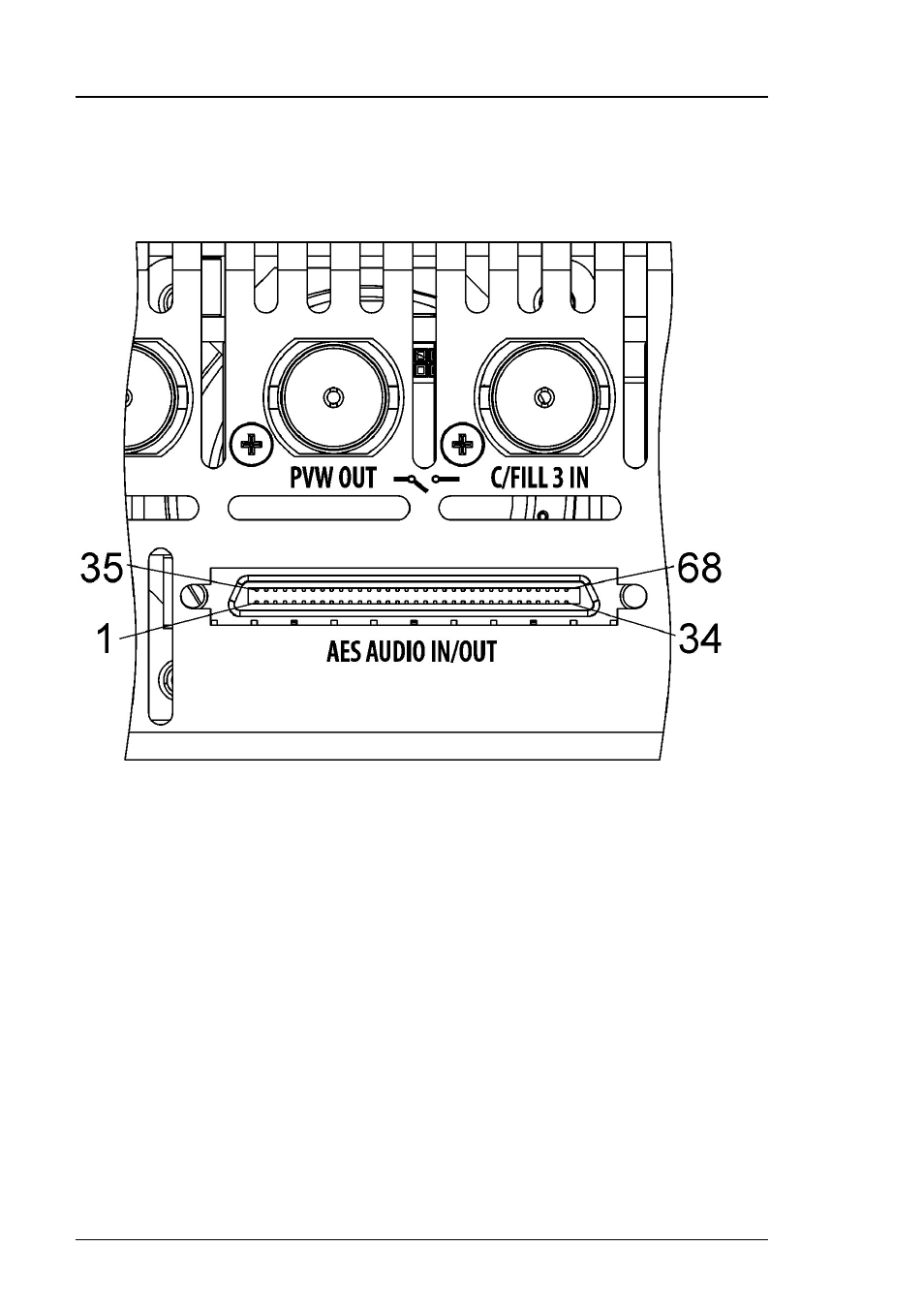

Audio AES connector
68 pin SCSI VHDCI-68 female connector
The AES AUDIO IN/OUT port is used to connect 16 input pairs and 16
output pairs digital AES/EBU audio channels.
These are identified as:
•
Inputs AES_IN_1 to AES_IN_16.
•
Outputs AES_OUT_1 to AES_OUT_16.
This provides for 32 mono audio channels in and 32 out.
Each “AES” channel should be connected to the Imagestore 750 over two
wires using balanced (differential +/-) signals and a grounded shield. Signal
and associated pin-out connections are given in the following table.
