Control Panel Reference
Panel Number
The center switch assigns the panel number. Each device on the
RS485 bus must be assigned a unique number (address) from 0 to
31. Numbers silkscreened above a segment of the switch indicate
its value. When a segment is in the ON position, its value is added

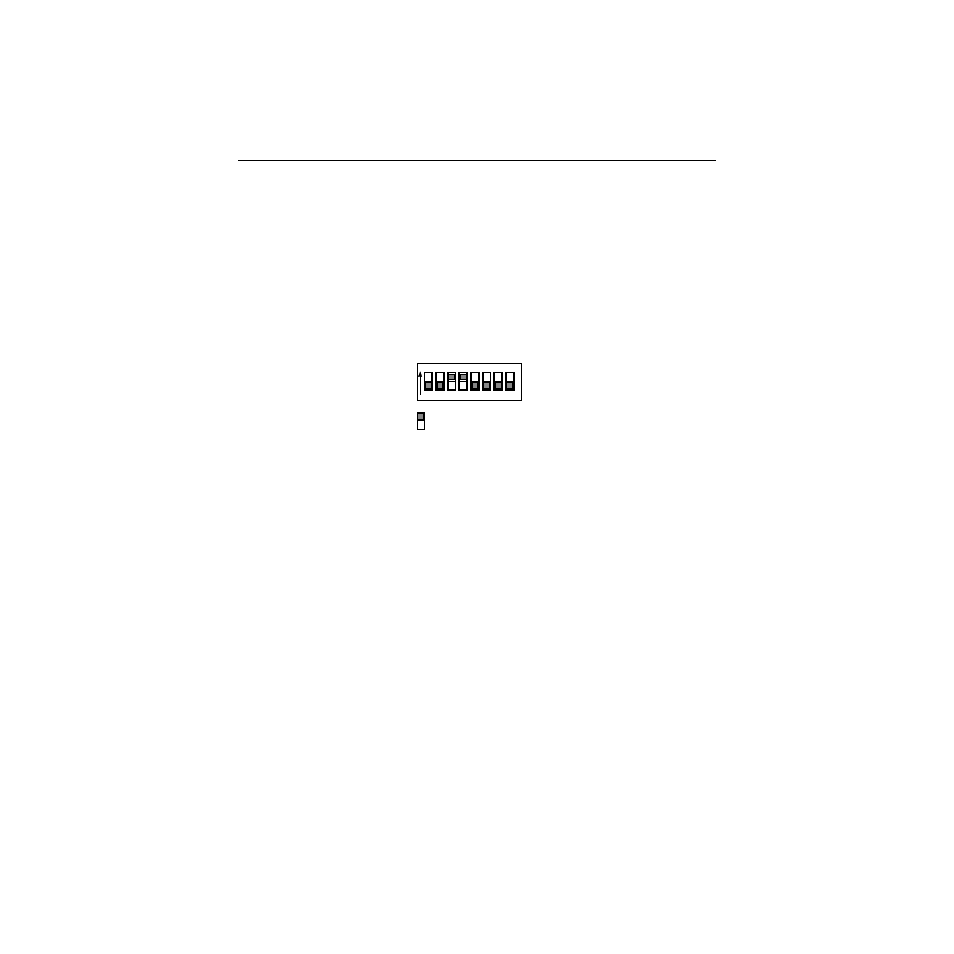

into the panel number total. The switch is illustrated below.
ON
1 2 3 4 5 6 7 8
PANEL
NUMBER
1 2 4 8 16
Dot indicates switch position
In this example, the serial
interface has been assigned a
panel number of 12.
8+4=12
