Control Panel Reference

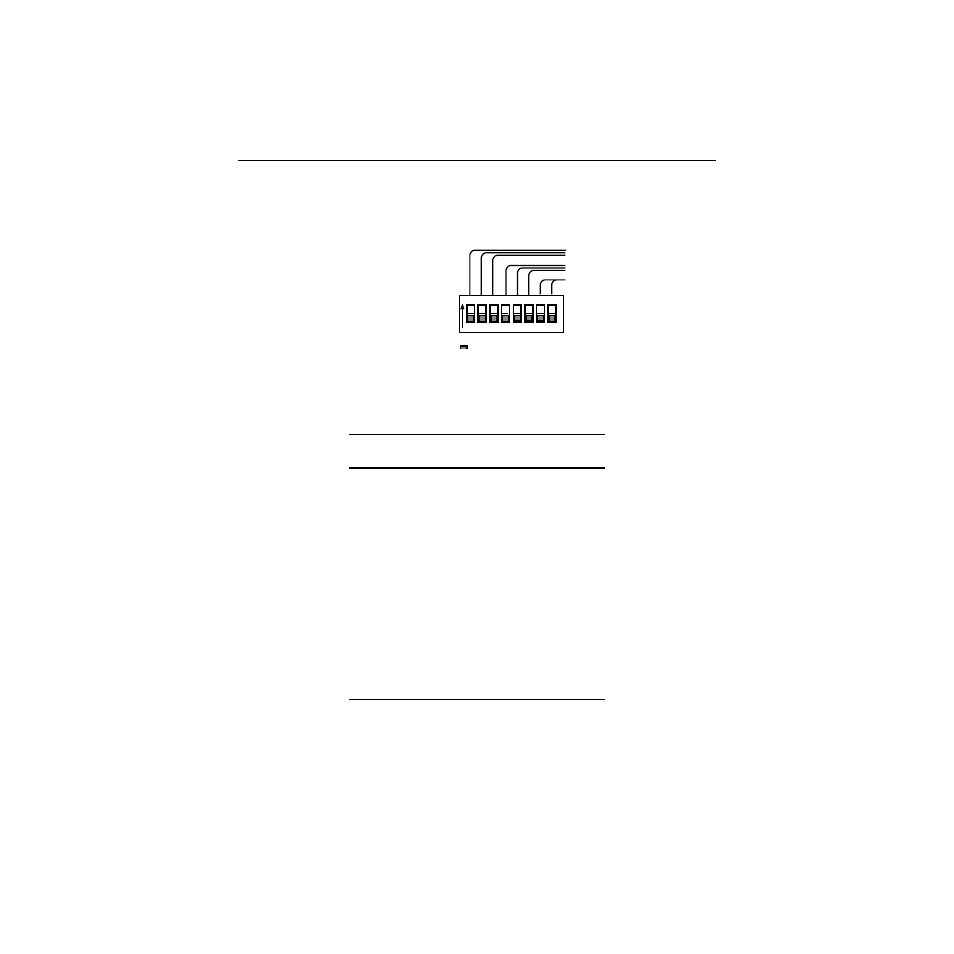

The switch is illustrated below and its possible segment position
are listed in the following tables.

The following table lists switch settings and the resulting source
offset. An “O” indicates an

open

segment; a “C” indicates a

closed

segment.

Table 2-12. Remote Panel Source Offset

Sources

#1

#2

#3

1-10

O

O

O

11-20

O

O

C

21-30

O

C

O

31-40

O

C

C

41-50

C

O

O

51-60

C

O

C

61-70

C

C

O

71-80

C

C

C

CONTROLLED DESTINATION 0 - 7

LEVEL OFFSET 0 - 3

ON

1

2

3

4

5

6

7

8

SOURCE OFFSET 0 - 7
