92 QC-300 Series User’s Guide
Inserting or appending new program steps
To insert or append new steps into an existing program:

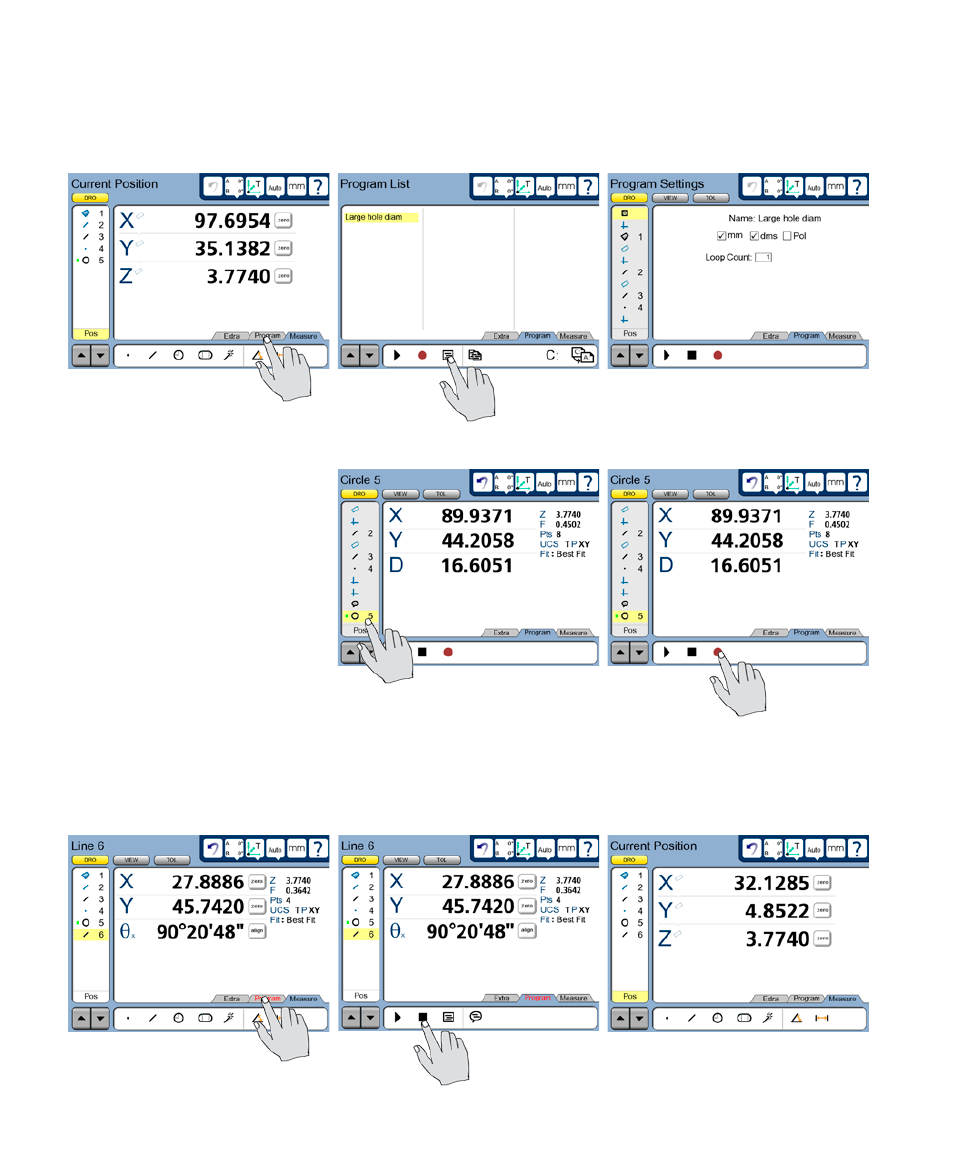

1 Touch the Program tab, the program title and the Edit icon. Program steps will be displayed.
2 To insert steps, touch the
program step before the insertion
point for the new program steps.
To append steps, touch the last
step. Then touch the Record icon.
A message will ask you to con-
firm your intention. To continue,
touch Yes. In this example steps
will be inserted after the circle
measurement.
3 The QC-330 will begin recording and the DRO will be displayed. Perform the new measurement steps.
In this example a line is measured. When the measurement is complete, touch the Program tab and then
touch the Stop icon and the Finish button to complete the program.
Touch the Program tab... select a program and touch the Edit icon, settings will be displayed
and begin recording Touch an insertion point...
Perform the new steps and then
touch the Program tab... touch the Stop icon and press Finish to complete the addition
