14 QC-300 Series User’s Guide

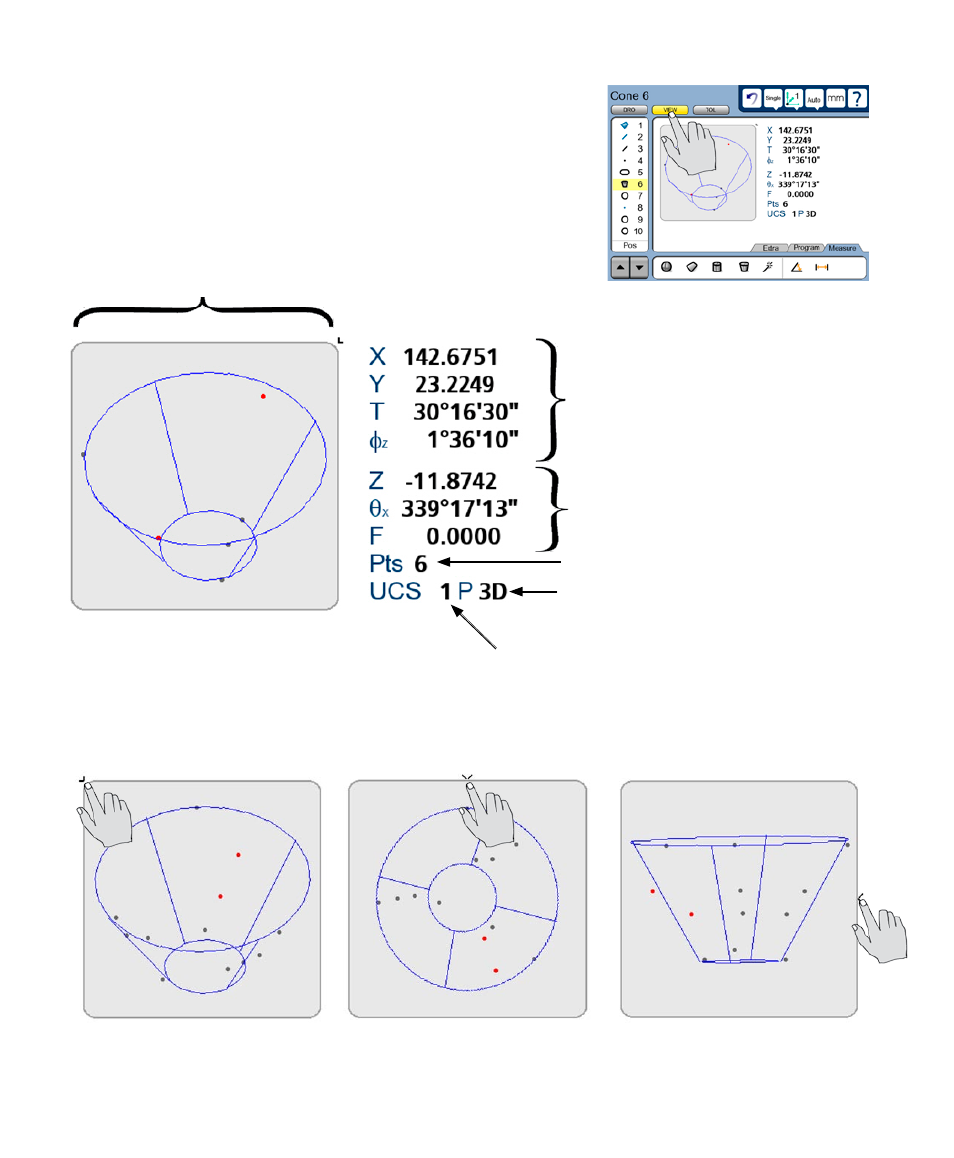

View screen
Press the VIEW button to display the VIEW screen. Measurement
data, reference frame, projection and an image of the data cloud and
resulting feature geometry are shown on the View screen.
The view of the feature geometry is rotated by touching center or corner points at the edge of the image or
by touching and dragging across the screen.
Feature data:
major coefficients
Feature data:
minor coefficients
Data points
Reference frame ID
Projection
Data cloud and
feature geometry
