User Interface
Chapter 3:
User Interface

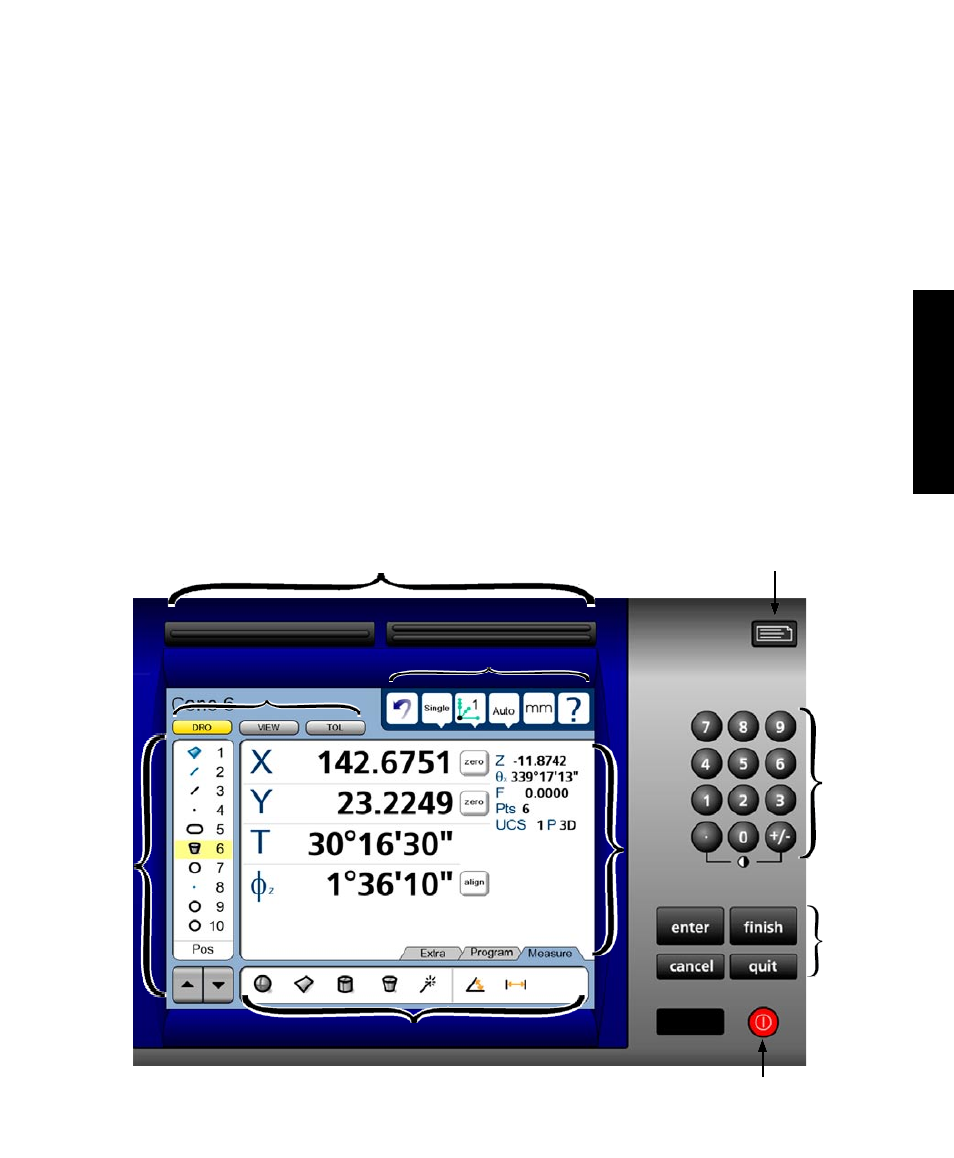

The QC-330 user interface consists of hardware front panel buttons and number keys that work in coopera-
tion with software menus, buttons, and data fields shown on the color LCD touch screen. The hardware/
software interface is divided into the function areas listed and shown below.
• Screen functions • Command buttons and wide keys
• Data display • Number keys
• Measurement functions • LCD ON/OFF or delete features
• Feature list • Printing reports and sending data
• System functions
Wide keys
Feature
list
Command
buttons
Number
keys
Measure functions
Printing reports
and sending data
LCD ON/OFF
and delete features
System functions
Screen functions
Data
display
