62 QC-300 Series User’s Guide
Extracted features

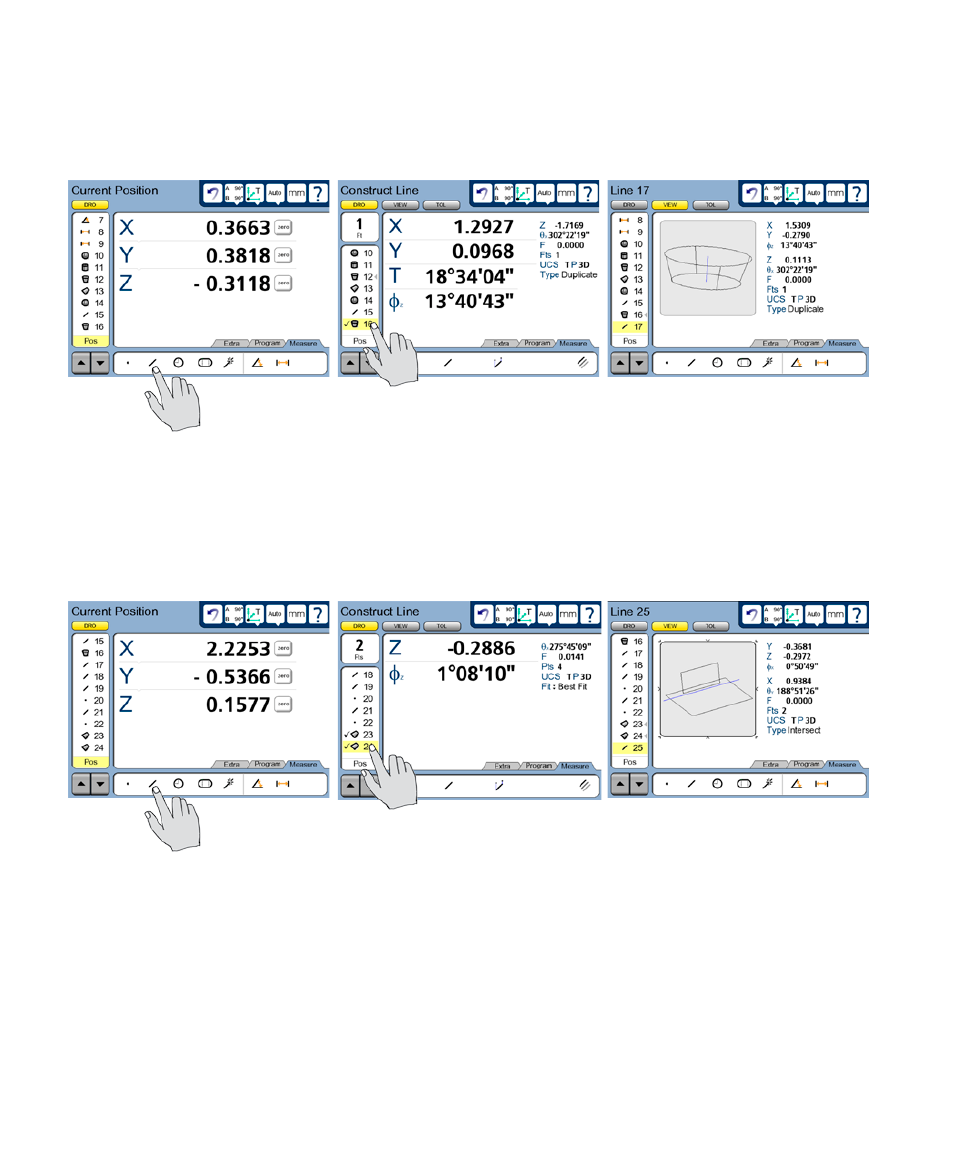

Features such as points and lines can be extracted from parent features. In this example, an axis line is
extracted from a cone.
Intersection features
Features such as points, lines and circles can be constructed from the intersections of positional, linear and
plain features. In this example, a line is constructed from two planes.
Select the line feature type... select the parent cone feature... then press the Finish key
Select the line feature type... select the two plane features... then press the Finish key
