130 QC-300 Series User’s Guide

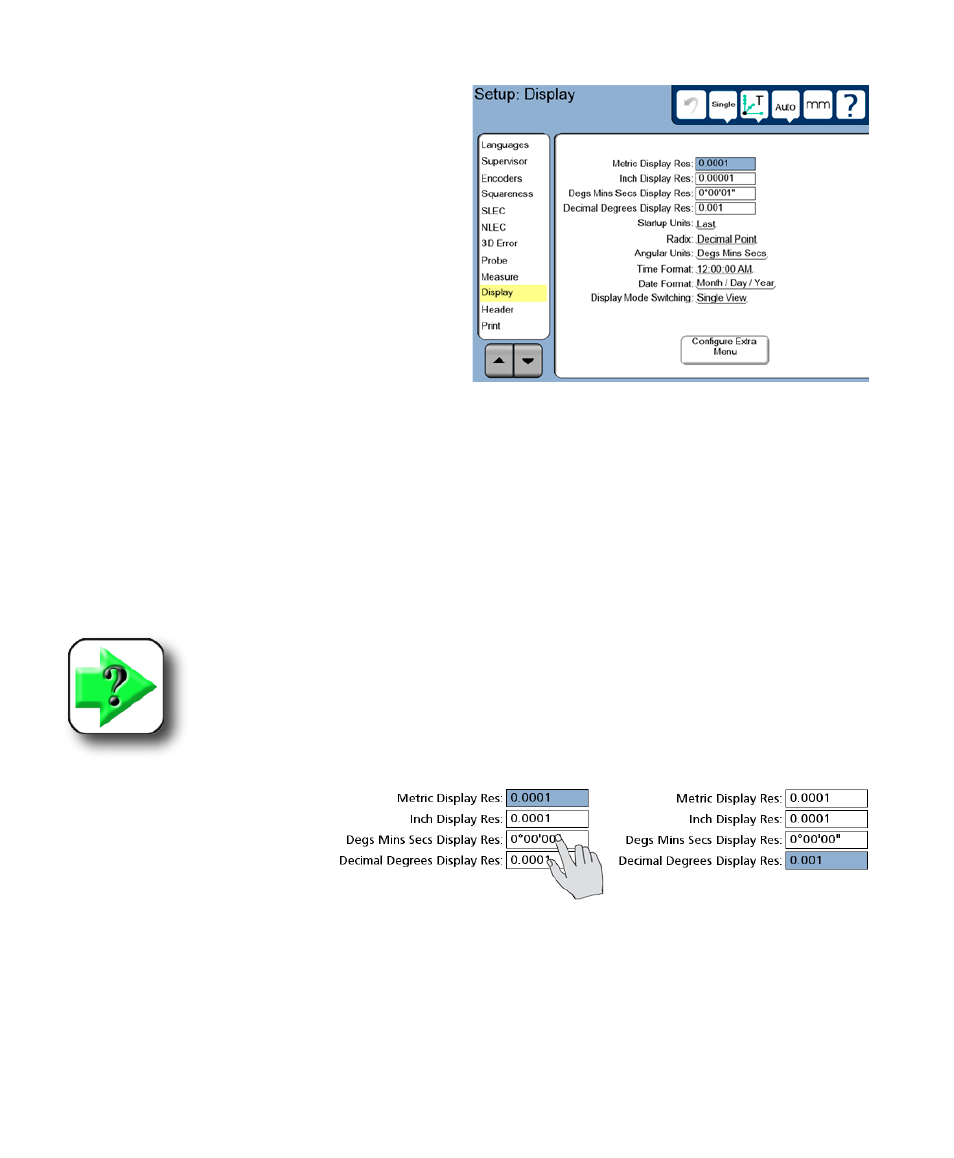

Display screen
The Display screen contains fields for configuring
display resolution and other LCD display param-
eters.
Display resolution
The display resolution fields are used to specify the
resolution of measurements shown on the DRO and
other screens. Displayed numbers will be rounded as
the display resolution is decreased below that of the
input. The table below illustrates how the display is
governed by the display resolution setting.
Encoder input Display resolution Displayed value
1.567 0.0001 1.5670
1.567 0.001 1.567
1.567 0.01 1.57
1.567 0.1 1.6
1.567 1 2
NOTE
Display resolution should never be higher than the encoder resolution. Specifying
display resolutions that are higher than encoder resolutions can lead to misleading
displays of values.
To specify display resolution,
touch the data field of the desired
Display category and enter the
desired resolution using the num-
ber keys.
