Manual operation and setup
15.2 Moving the machine axes
15
448
TNC 640 | User's Manual for DIN/ISO Programming | 5/2013

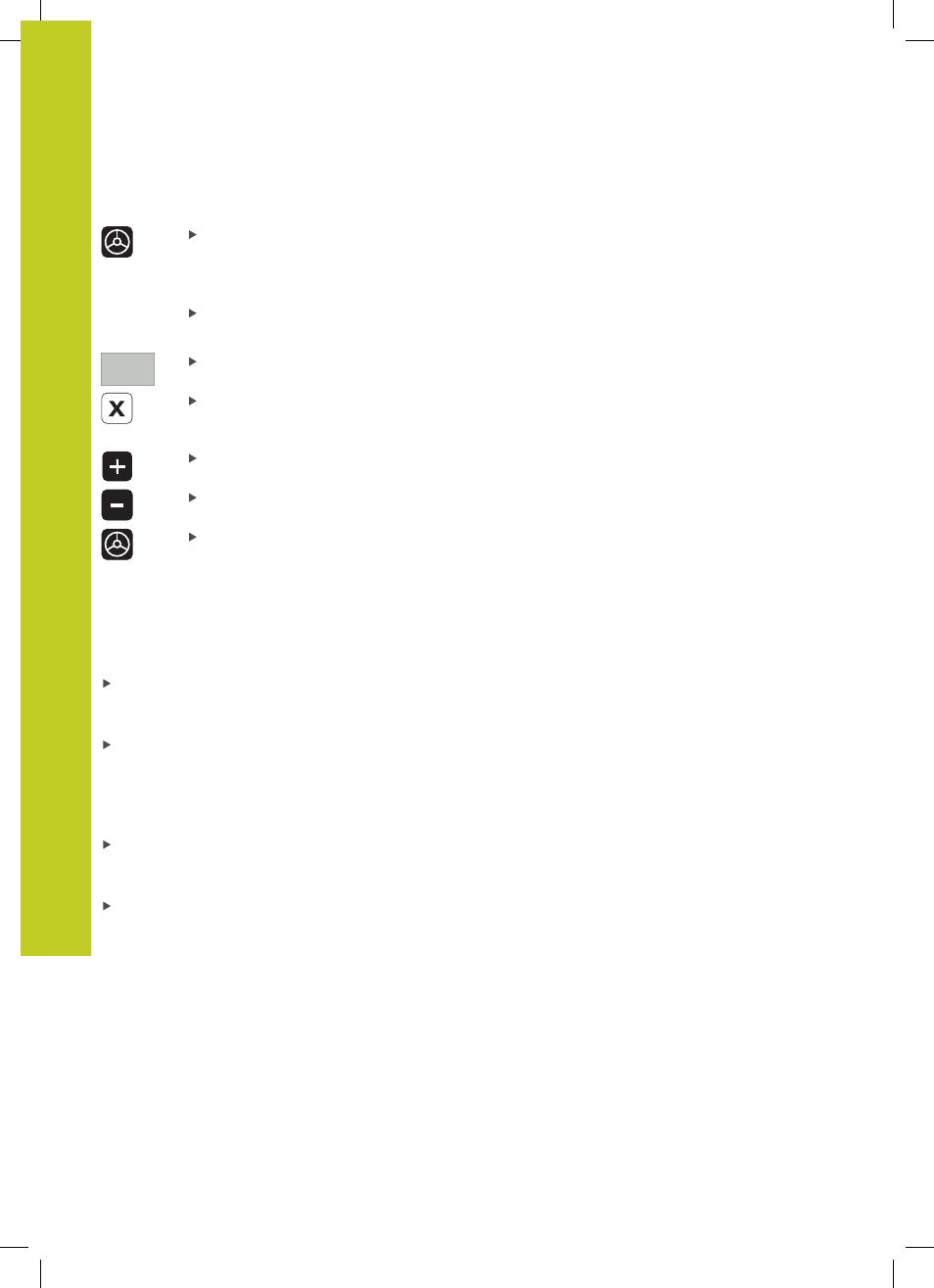

Moving the axes
Activate the handwheel: Press the handwheel key
on the HR 5xx: Now you can only operate the TNC
via the HR 5xx; the TNC shows a pop-up window
containing information on the TNC screen
Select the desired operating mode via the OPM
soft key if necessary
If required, press and hold the permissive button
Use the handwheel to select the axis to be
moved. Select the additional axes via soft key, if
required
Move the active axis in the positive direction, or
Move the active axis in the negative direction
Deactivate the handwheel: Press the handwheel
key on the HR 5xx : Now you can operate the TNC
again via the operating panel
Potentiometer settings
The potentiometers of the machine operating panel continue to be
active after you have activated the handwheel. If you want to use
the potentiometers on the handwheel, proceed as follows:
Press the CTRL and Handwheel keys on the HR 5xx. The TNC
shows the soft-key menu for selecting the potentiometers on
the handwheel display
Press the HW soft key to activate the handwheel
potentiometers
If you have activated the potentiometers on the handwheel, you
must reactivate the potentiometers of the machine operating panel
before deselecting the handwheel. Proceed as follows:
Press the CTRL and Handwheel keys on the HR 5xx. The TNC
shows the soft-key menu for selecting the potentiometers on
the handwheel display
Press the KBD soft key to activate the potentiometers of the
machine operating panel
