RISCO Group ACIS User Manual
Page 59
User Manual for ACIS Version
Uncontrolled when printed
© RISCO Group
50

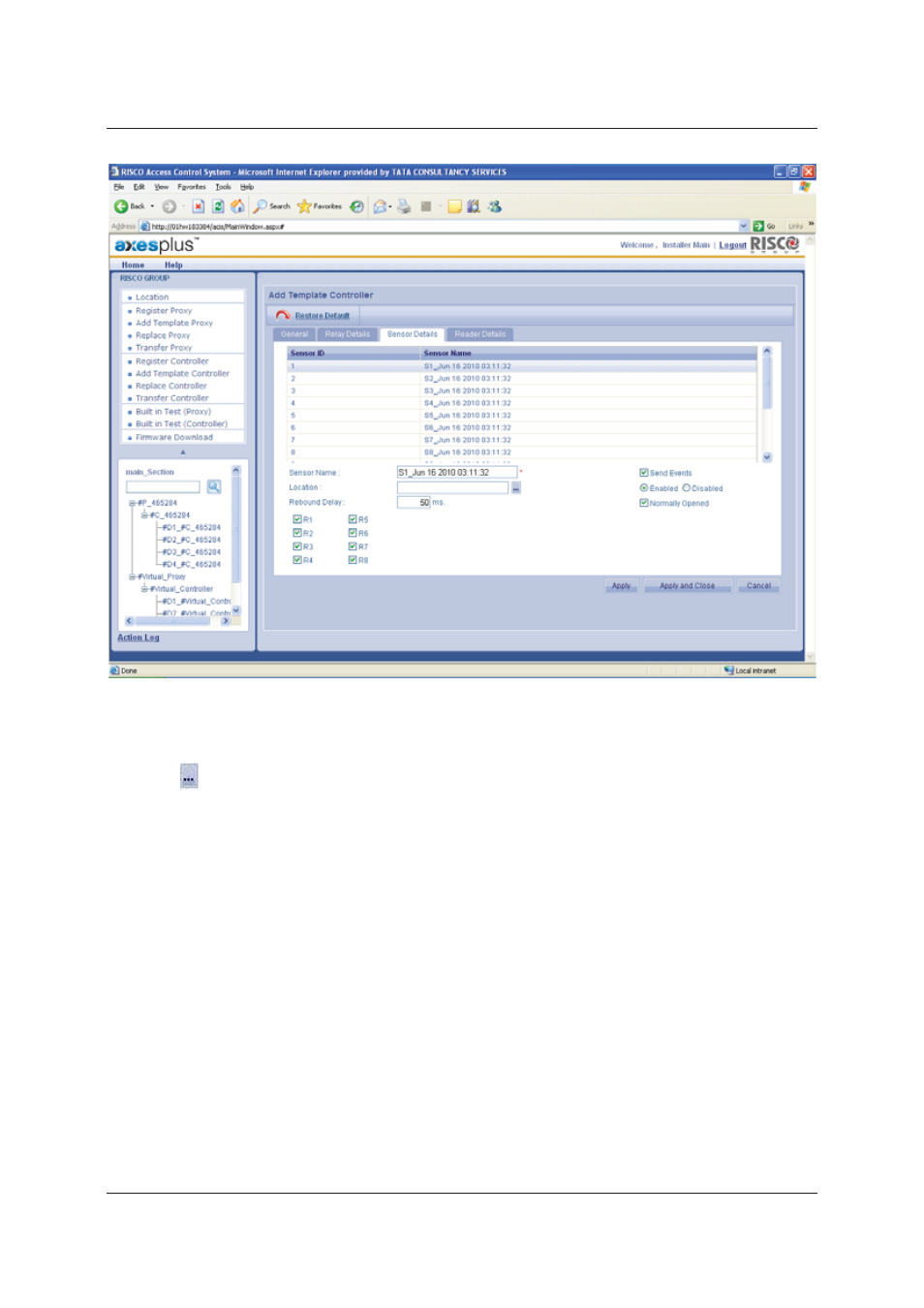

Figure 36: Template Sensor Details
2. You can change the name of the sensor. Note that this will be only for sensors not associated to a door
function and available for other use. The Sensor ID field is a read-only field.
3. Click
and select the location from the list of locations.
4. Enter the time you want to be taken by the output of the sensor to settle down and be functional again in
the Rebound Delay. Longer the delay longer will be the response time of the sensor.
5. Select the Send Events check box if you want to execute a macro using a keypad command. KP
commands are the commands for which the card has the authorization to enter a KP command to a
keypad which is attached to a door side on which the card is presented.
6. The sensor is enabled by default. You may click Disabled to disable the sensor.
7. Select the Normally Opened check box if the sensor is idle.
8. Select the check box against the relays displayed in the list to ensure that the relays are automatically
turned on when the Sensor is on. By default, all relays are selected for each sensor.
4.5.4
Readers Details
You can configure several types of readers from this tab.
1. Click the Reader Details tab. The readers are displayed according to the doors selected in the General tab.
