User Manual for ACIS Version
Uncontrolled when printed © RISCO Group 53

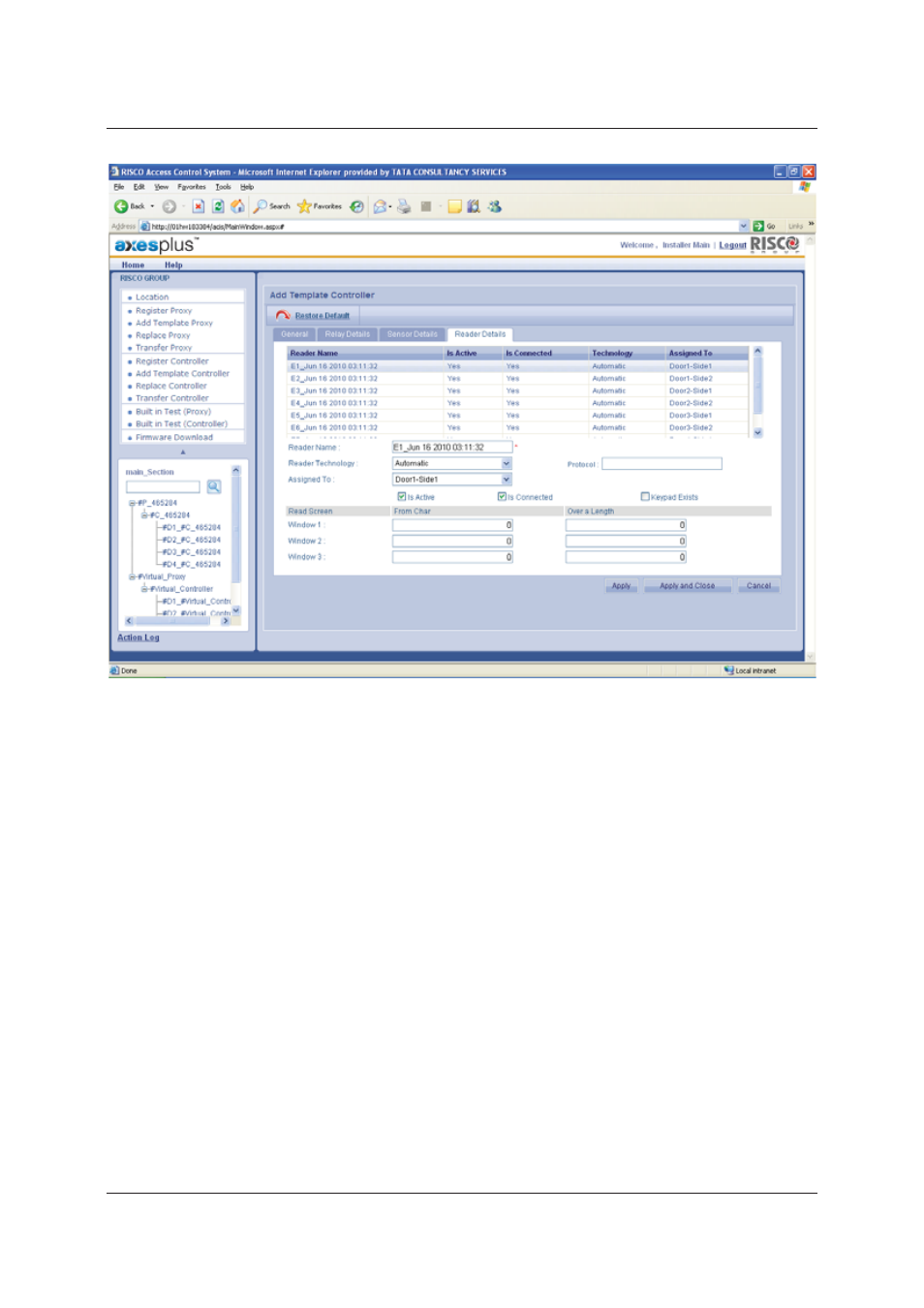

Figure 39: Template Reader Assign To Details
4. By default the Is Active and Is Connected check boxes are selected, which indicates that all readers are
active and connected to the doors.
5. Select the Keypad Exists check box if the reader requires a keypad.
6. You can use this function if you want to split the Card ID in minimum one or maximum three parts.
Depending upon the reader technology, you need to enter the start point in From Char field and length
of the characters that should appear in each window in the Over a length field. For example if your Card
ID is 0F034081B1, and you enter 1 in the From Char field and 3 in the Over a Length field, then the Card
ID which will be read by the reader will be 0F0.

7. Click Apply.
or
• Click Apply and Close. The message appears, “Controller created successfully”.
