Fig.4-17
CRANKSHAFT
OIL SENSOR
(OPTION) CONNECTING ROD
AIR CLEANER
BAFFLE 2
PISTON
TIMING CHAIN
OIL DRAIN PLUG
CRANKCASE
For without starting motor㧦Buffle 1 is mounted, instead of starting motor.
INTAKE
VALVE
PISTON RING OIL GAUGE
TENSIONER
STOP
SWITCH
BALANCER GEAR
CAMSHAFT
ROCKER
ARM
FUEL TANK GOVERNOR LEVER
GOVERNOR SHAFT CHAIN GUIDE
GOVERNOR
GEAR
MAGNETIC
SWITCH
STARTING
MOTOR
(OPTION)
PISTON PIN
MUFFLER COVER
EXHAUST
VALVE
MUFFLER
TAIL SCREEN
or DEFLECTOR
(OPTION)
SPARK
ARRESTER
(OPTION)

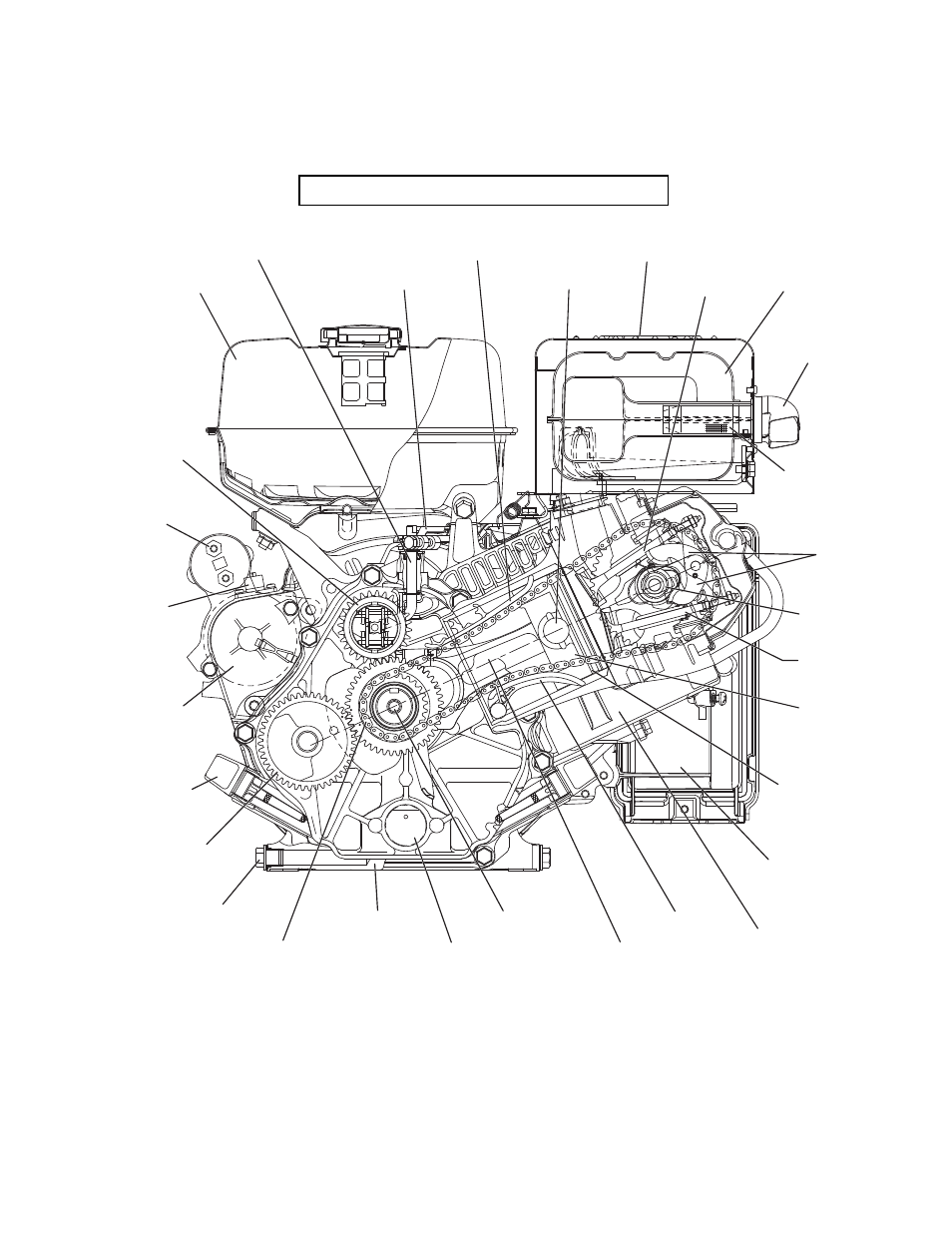

Cross sectional view – along the shaft
