- 20 -

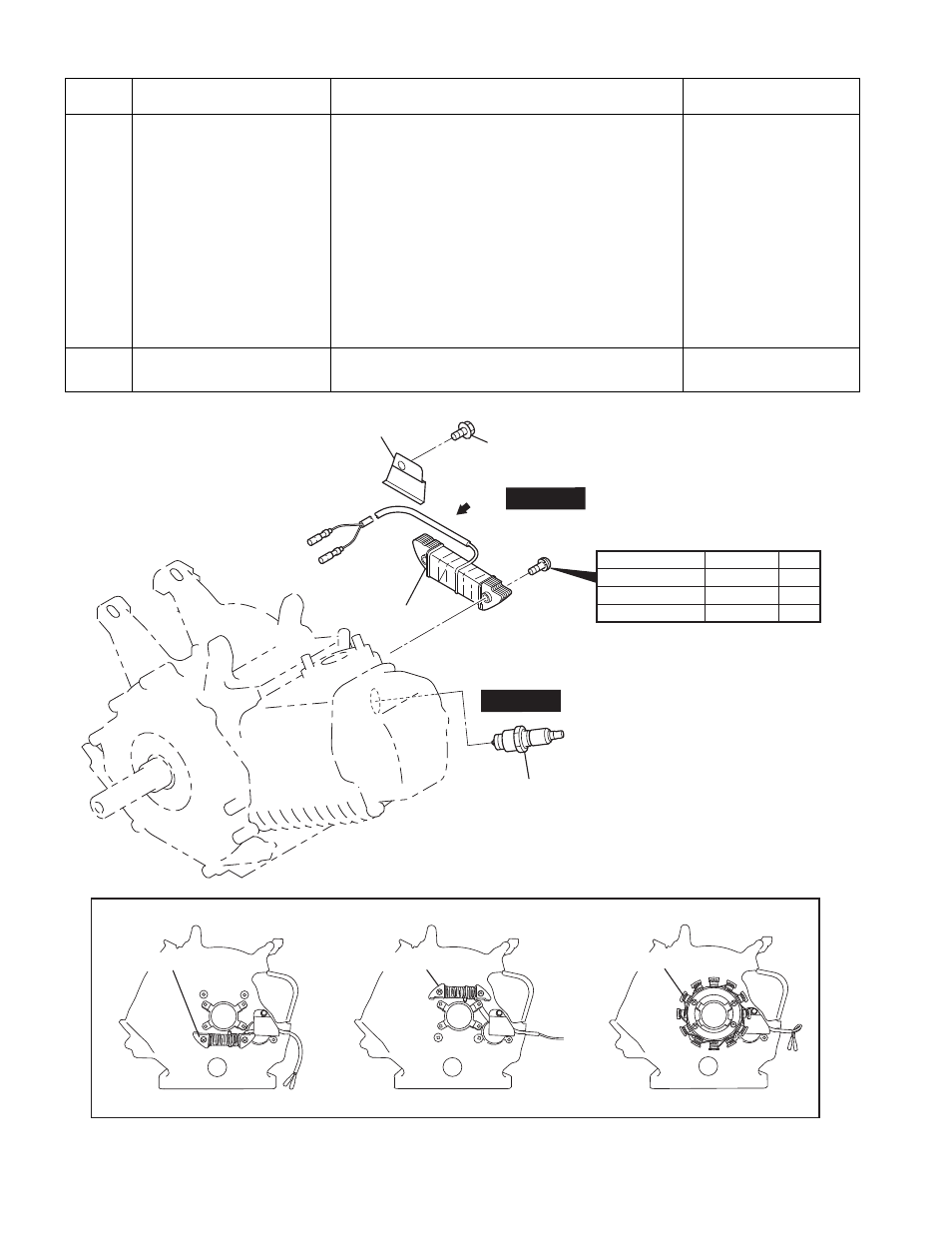

Fig.5-13
Step
Parts to remove
Remarks and procedures
Fasteners
18
[MODEL WITH
CHARGE COIL TYPE]
Wire clamp
Charge coil
Disconnect the wire clamp.
NOTE:
Disconnect the wire clamp in this step, also an engine
which has both of the charge coil and the oil sensor.
However, please make sure to not damaged (cut off)
the oil sensor wire after disassembly procedure.
Remove the charge coil.
10 mm box spanner
M6 x 10 mm : 1 pc.
+ screwdriver
19
Spark plug
Remove the spark plug from the cylinder head.
21 mm plug wrench
15W
VIEW A
200W
40W
CHARGE COIL
SPARK PLUG
CHARGE COIL
CHARGE COIL
CHARGE COIL
A
M6 x 10 TAPPING BOLT : 1 pc.
WIRE CLAMP
BOLT
CHARGE COIL
Q’ty
15W
40W
200W
M6 x 20L
M6 x 25L
M6 x 20L
2
2
4
STEP 18
STEP 19
