(5) Install the rope
NOTE: This procedure requires 2 people.
-1 Pass the rope end through the rope guide and
the rope hole of the reel and pull through
approximately 20 cm out of the reel.
(Fig. 14-7)

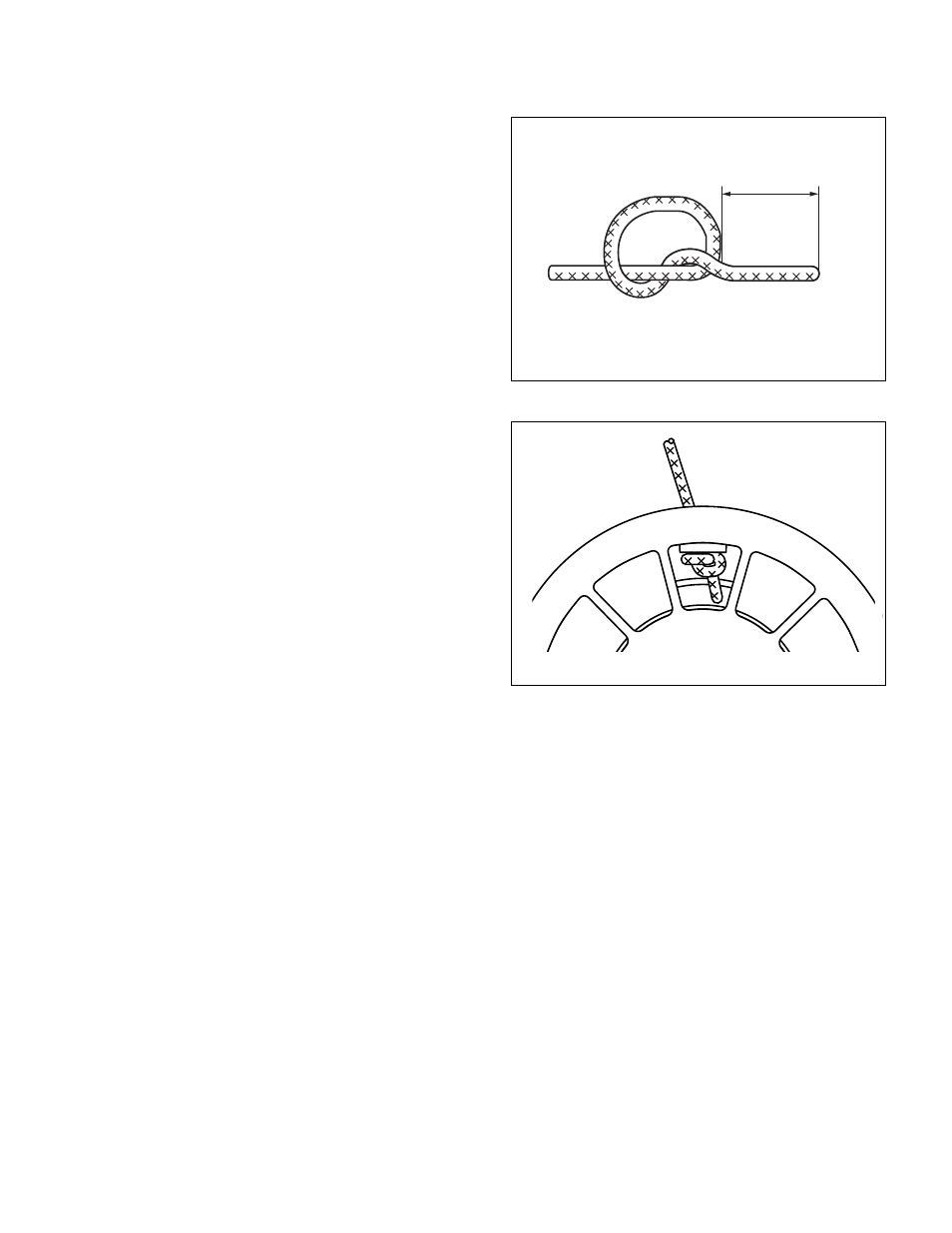

-2 Tie a knot in the rope end . (Fig. 14-8)
-3 Put the rope into the reel, taking care that the
rope end does not stick up. (Fig. 14-9)
-4 Grasp the rope firmly with one hand at
approximately 50 cm from the rope guide and
keep the rope tense, taking care that the rope
is not pulled into the reel.
-5 Release the reel carefully and allow the rope
to be wound back slowly by the force of the
spring until the knob reaches the rope guide.
Assembly is completed.
Fig.14-8
Fig.14-9
* The disassembly and the reassembly are completed, however, carry out the following to check if the
necessary components have surely been assembled.
Approx. 20mm
