- 17 -

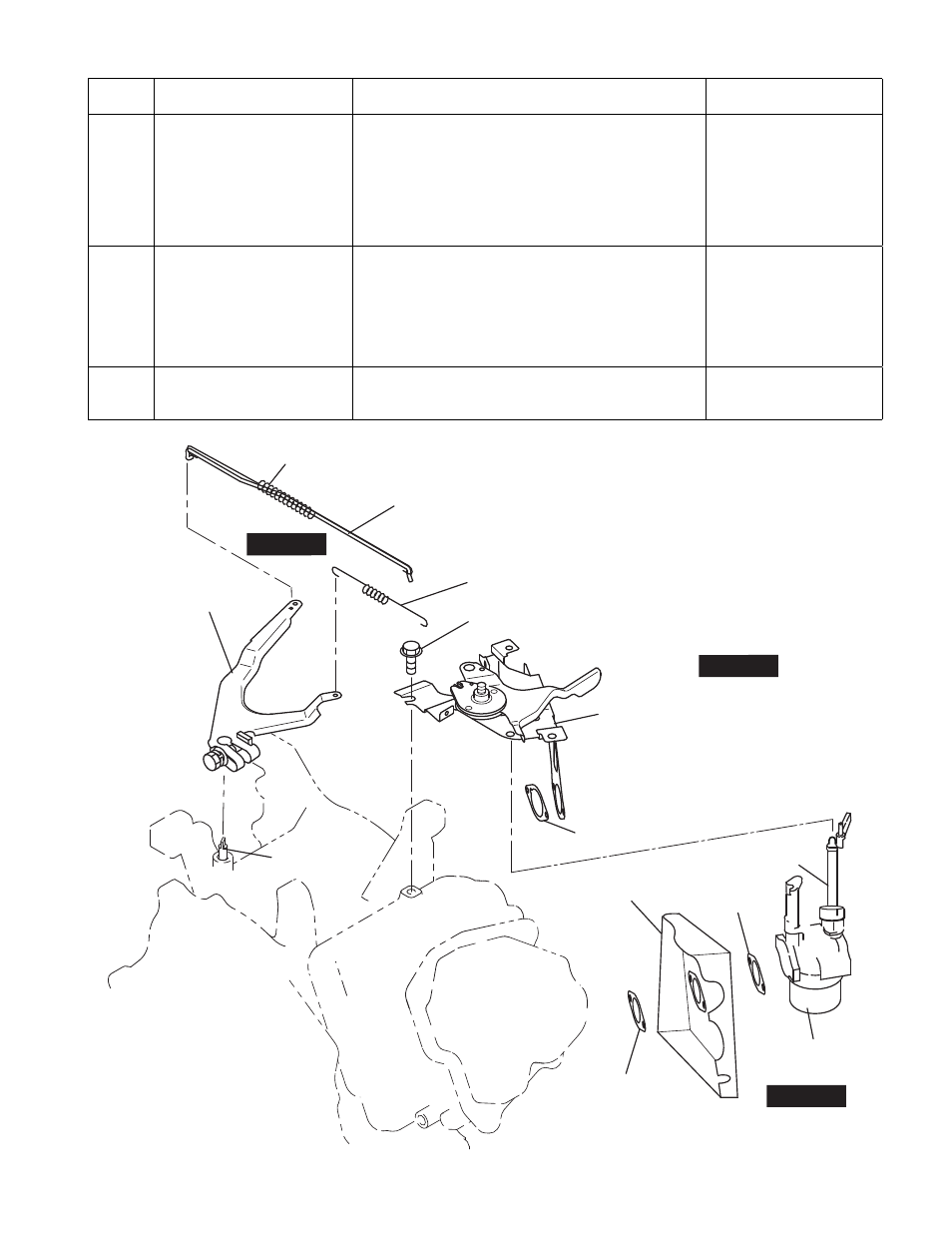

Fig.5-8
Step
Parts to remove
Remarks and procedures
Fasteners
11
Speed control lever and
Bracket
Remove the speed control lever and bracket from the
cylinder head.
Release the bolt temporarily.
Slide to dismount the speed control lever and bracket
from the cylinder head and the choke lever of the
carburetor.
10 mm box spanner
M6 x 12 mm : 1 pc.
12
Governor system
(1) Loosen the bolt and remove the governor lever
from the governor shaft. There is no need to
remove the bolt.
(2) Remove the governor spring.
(3) Remove the governor rod and the rod spring from
the carburetor.
10 mm box spanner or
spanner
M6 x 25 mm : 1 pc.
13
Carburetor, Insulator
Remove the carburetor from the cylinder head.
Remove the insulator.
GOVERNOR SPRING
M6 x 12 BOLT : 1 pc. (temporary screw)
ROD SPRING
GOVERNOR ROD
SPEED CONTROL LEVER and BRACKET
GASKET
CHOKE LEVER
GASKET
CARBURETOR
GASKET
INSULATOR
GOVERNOR LEVER
GOVERNOR
SHAFT
STEP 11
STEP 12
STEP 13
