- 38 -

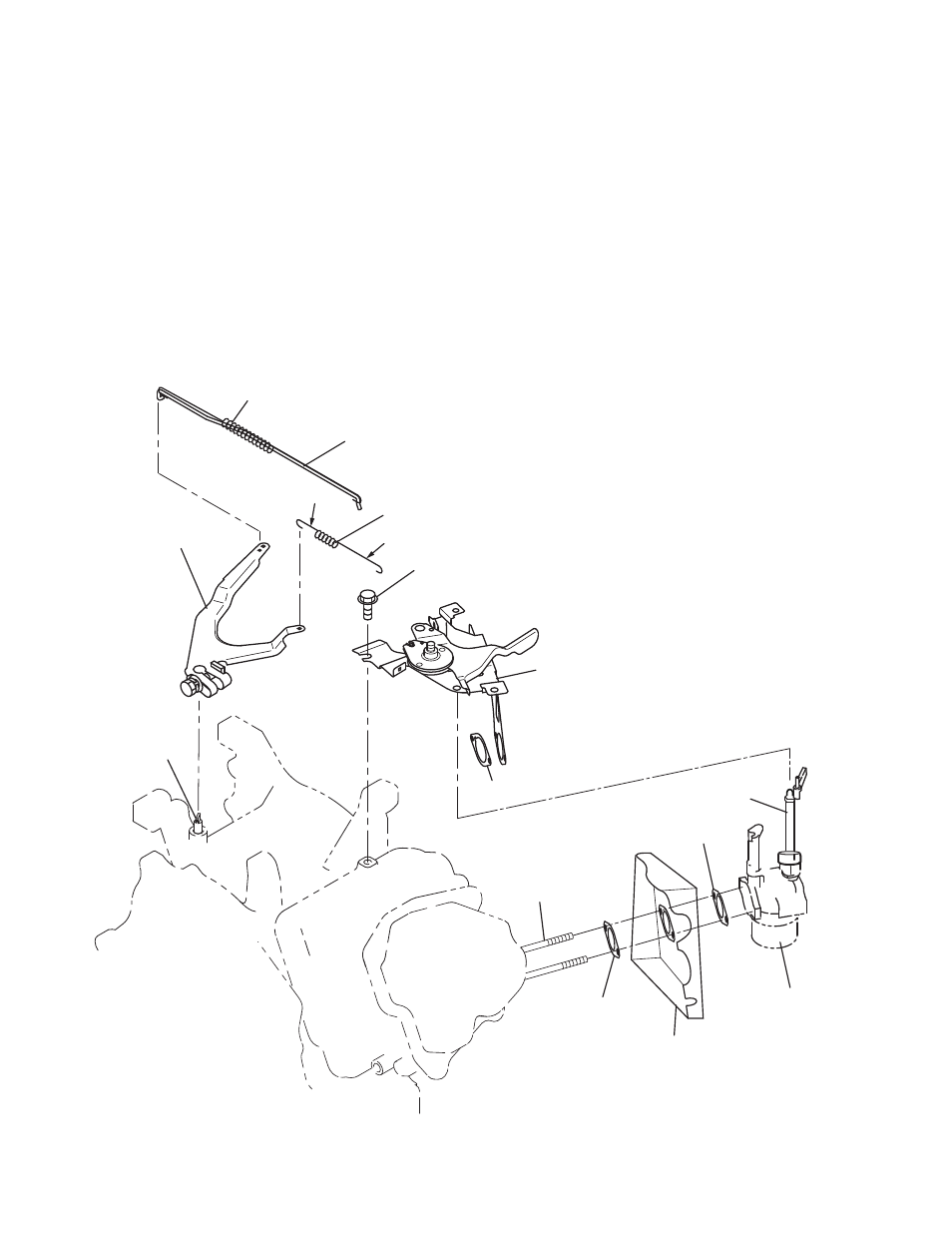

GOVERNOR SPRING
Long length
Short length
M6 x 12 BOLT : 1 pc. (Temporarily fit the bolt)
ROD SPRING
GOVERNOR ROD
SPEED CONTROL LEVER
and BRACKET
GASKET
CHOKE LEVER
GASKET
CARBURATOR
GASKET
INTAKE SIDE
STUD BOLTS
INSULATOR
GOVERNOR LEVER
GOVERNOR
SHAFT
(22) GOVERNOR LEVER (See Fig.5-58, 59)
(a) Pass the governor rod through the rod spring, then connect to the throttle lever of the carburetor.
(b) Attach the governor rod and rod spring to the governor lever, then mount the governor lever on the
governor shaft. Do not adjust the bolt on the governor lever yet.
(c) Connect the governor lever and the speed control lever with the governor spring.
NOTE : See page 40 for details on the adjustment method after mounting air cleaner base.
Fig.5-58
(21) CARBURATOR
(a) Replace the gasket of insulator with a new one and mount the insulator on the cylinder head intake side.
(b) Mount the carburetor.
ROD SPRING
: None direction
GOVERNOR SPRING : Make sure a direction
