- 16 -

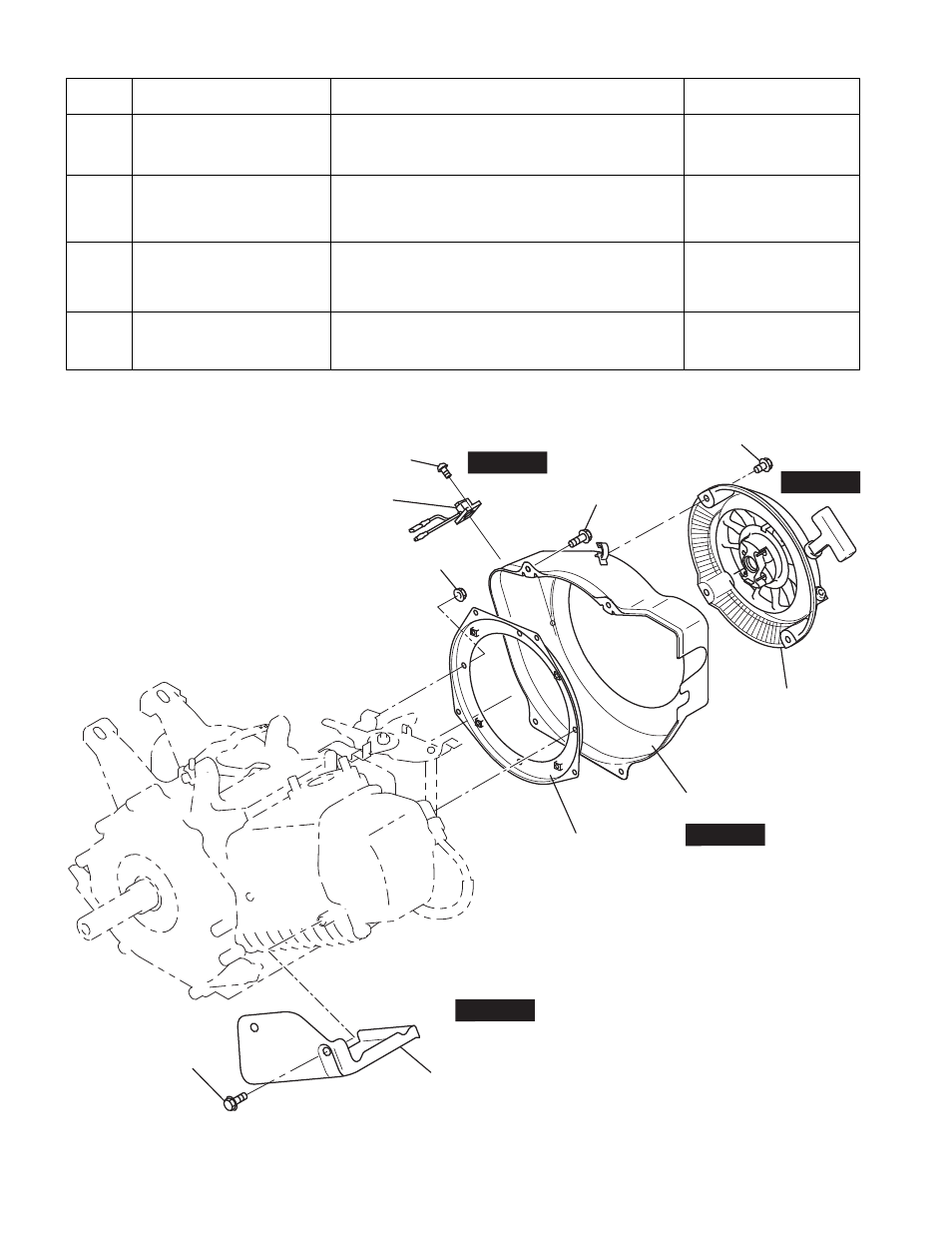

Fig.5-7
Step
Parts to remove
Remarks and procedures
Fasteners
7
Stop switch
Disconnect the wire and remove the stop switch from
the blower housing.
+ screwdriver
M4 x 12 mm : 2 pcs.
8
Recoil starter
Remove the recoil starter from the blower housing.
10 mm box spanner
M6 x 14 mm : 4 pcs.
9
Blower housing
Recoil bracket
(1) Remove the blower housing (synthetic resin) from
the crankcase.
(2) Remove the recoil bracket from the crankcase.
10 mm box spanner
M6 x 16 mm : 5 pcs.
M6 nut : 4 pcs.
10
Baffle 2
Remove the baffle 2 ( synthetic resin ) from the
crankcase.
10 mm box spanner
M6 x 12 mm : 3 pcs.
M4 x 12 SCREW and WASHER : 2 pcs.
M6 x 14 BOLT : 4 pcs.
STOP SWITCH
RECOIL STARTER
BLOWER HOUSING
RECOIL BRACKET
M6 FLANGE NUT : 4 pcs.
M6 x 16 BOLT : 5 pcs.
BAFFLE 2
STEP 7
STEP 8
STEP 9
STEP 10
M6 x 12 BOLT : 3 pcs.
