8. IGNITION SYSTEM

The ignition system is a pointless flywheel magneto with automatic advancing characteristic.

Being different from the breaker point type ignition system, this system is completely free from such troubles
as starting-up failure due to dirty, burnt or corroded point surface.

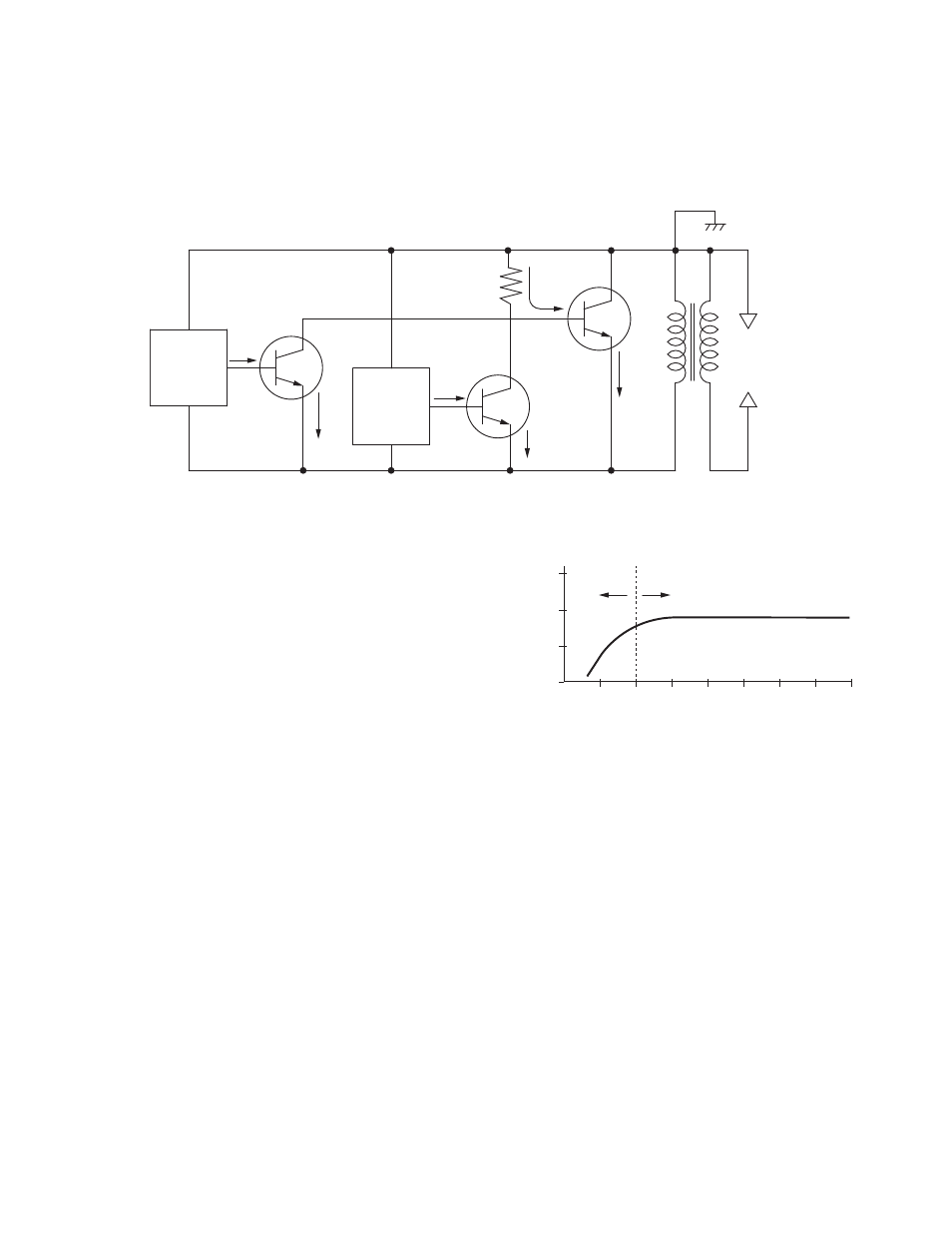

8-1 IGNITION COIL INTERNAL CIRCUIT

Fig.8-2

(b)

At lower engine revolution, when the flywheel reached the ignition point the low speed ignition timing

control circuit (③) operates to run the base current I

3

to turn the signal transistor (④) “ON” allowing the

current I

1

to bypass as current I

4

.

At this moment the power transistor (②) turns “OFF” and the current I

2

is abruptly shut resulting in the

high voltage generated in the secondary coil (⑤) which produces sparks at the spark plug.

(c)

At higher engine revolution, the advancing control circuit (⑥) operates at the ignition timing to run the

base current I

5

to turn the signal transistor (⑦) “ON” allowing the current I

1

to bypass as current I

6

.

At this moment the power transistor (②) turns “OFF” and the current I

2

is abruptly shut resulting in the

high voltage generated in the secondary coil (⑤) which produces sparks at the spark plug.

The operating timing of the advancing control circuit advances in accordance with the increase of engine

speed resulting in the advancing of ignition timing as shown in Fig. 8-2.

ELECTRONIC ADVANCING FLYWHEEL

MAGNETO SYSTEM

High speed

Low speed

(B.T.D.C)

(r.p.m.)

ENGINE REVOLUTION



q

q

q

q











LowSpeed

Ignition

Timing

Control Circuit

Automatic

Advancing

Control

Circuit

I

3

I

4

I

5

I

6

I

2

I

1

Signal Transistor

ԛ

Signal Transistor

Ԟ

Power Transistor

ԙ

Primary Coil

Ԙ

Secondary Coil

Ԝ

Ignition Coil

Spark Plug

Resister

IGNITION TIMING

Ԛ

ԝ

Fig.8-1

8-2 BASIC THEORY

(a)

Revolution of the flywheel generates electricity on

the primary side of the ignition coil (①), and the

base current I

1

flows to the power transistor (②).

Current I

1

turns the power transistor “ON” and the

electric current I

2

flows. This is the same situation

when the contact breaker is closed in a case of

breaker point type ignition system.
