5. DISASSEMBLY AND REASSEMBLY
5-1 PREPARATIONS AND PRECAUTIONS
(1) When disassembling the engine, memorize the location of each part so that you can reassemble the engine
correctly. If necessary, attach identification tags with the required assembly information to the parts.
(2) Store groups of parts in separate boxes. This will make reassembly easier.
(3) To prevent parts from being mislaid, keep each group provisionally assembled after removing the parts
from the engine.
(4) Handle the disassembled parts with the utmost care. Clean them with cleaning oil if necessary.
(5) Use the correct tools in the correct way when disassembling and reassembling the engine.
5-2 SPECIAL TOOLS
Tool name
Use
Commercially available product
Flywheel puller
For pulling off the fl ywheel
Commercially available product
Chain wrench
For locking the fl ywheel

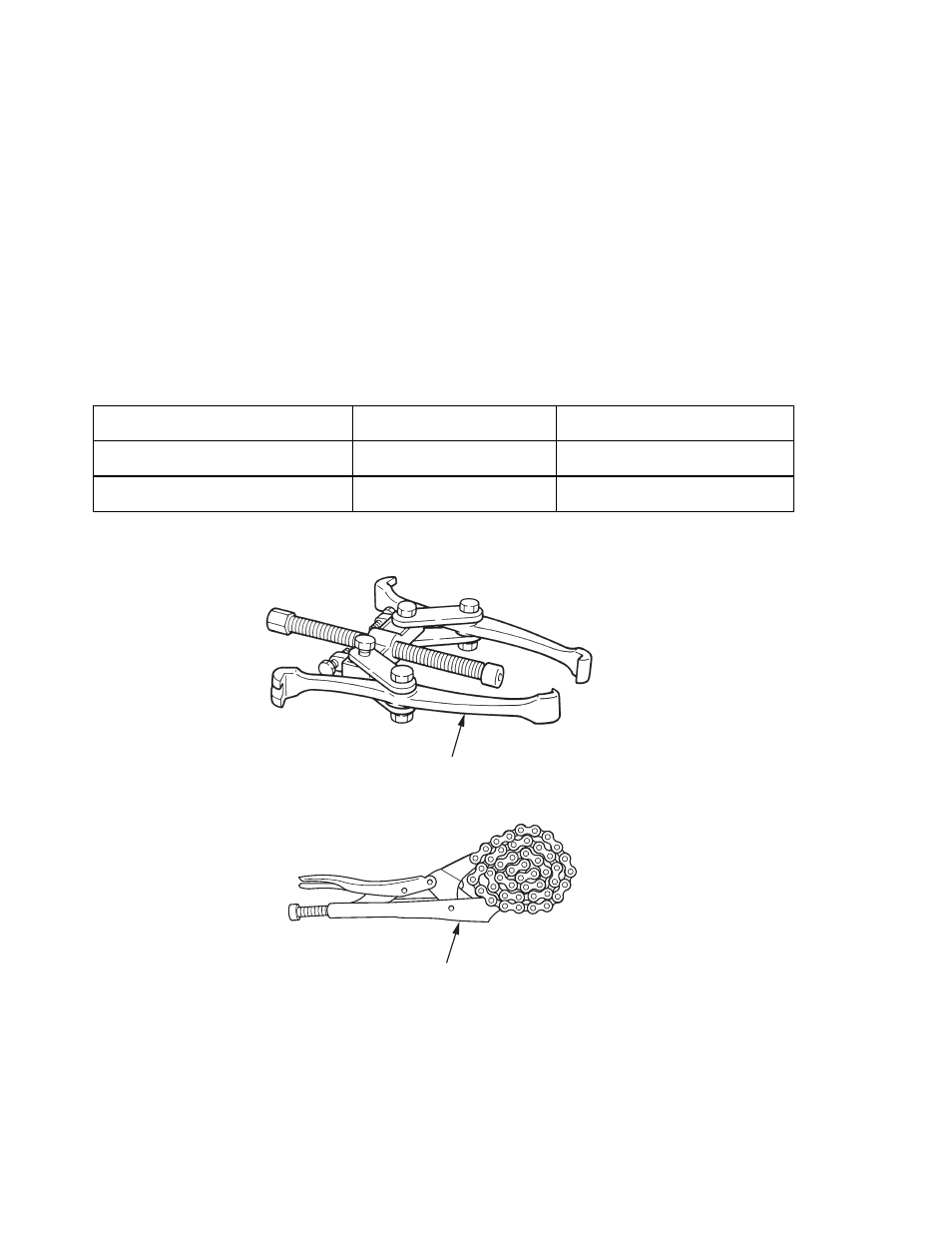

FLYWHEEL PULLER
CHAIN WRENCH
