- 60 -

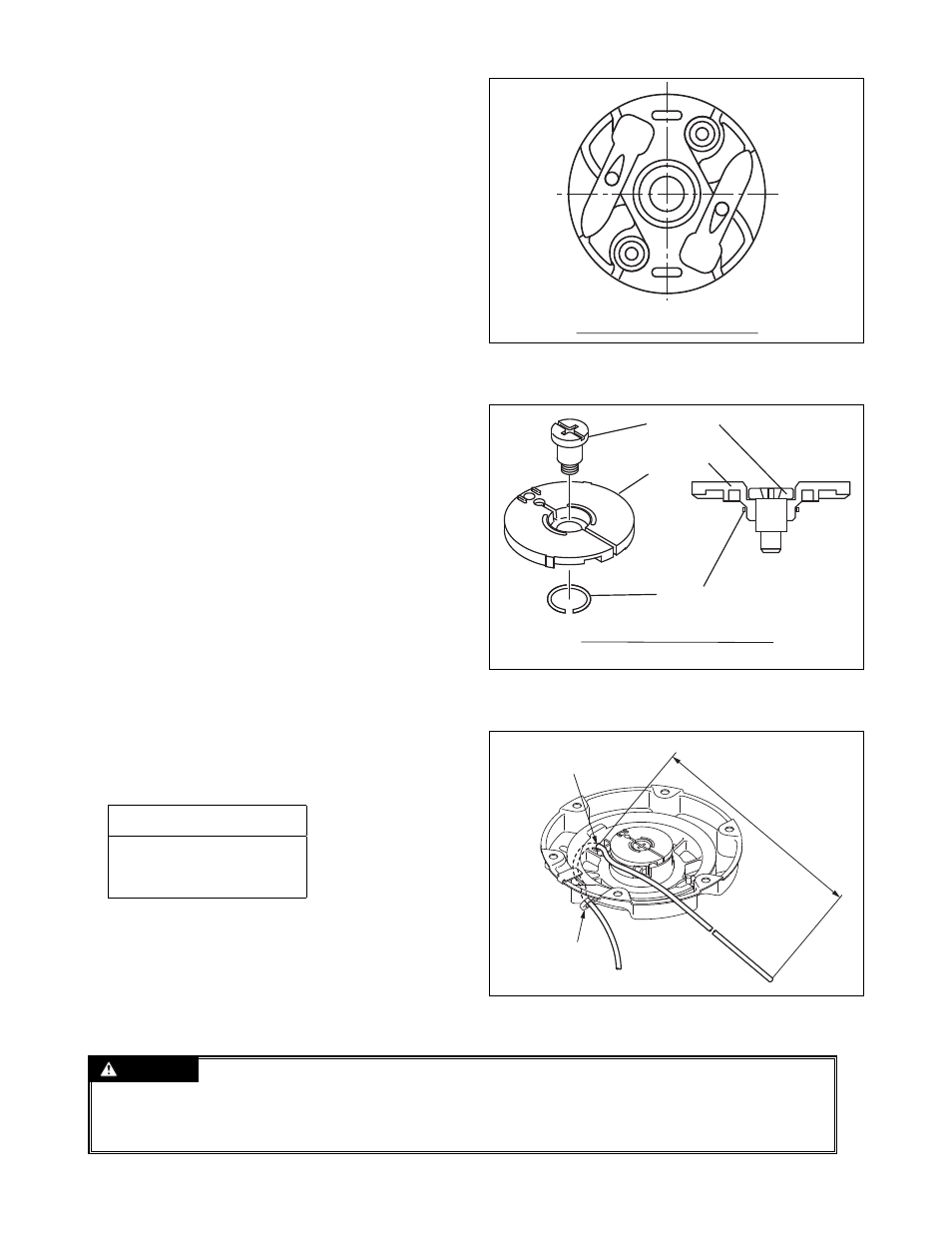

(2) Mount the components
-1 Mount the ratchet into the reel. (Fig. 14-5)
-2 Mount the ratchet guide assembly, taking
care not to move the ratchet. (Fig.14-6)
(3) Tighten the set screw
-1 Hold the ratchet guide gently by your hand to
prevent it from rotating, then tighten the set
screw.
(4) Tension the reel spring
-1 Grip the case and turn the reel 6 times
counterclockwise.
-2 Fix the reel so that the rope hole in the reel is
aligned with the rope guide. (Fig. 14-7)
Fig.14-5
Fig.14-6
Fig.14-7
The spring force reaches its maximum value when the reel is wound up.
Be careful not to drop it or release your grip on it suddenly.
THE RATCHET SHOULD BE
IN THE CLOSED POSITION
Set screw
Ratchet
guide
Friction spring
Ratchet guide sub-assembly
APPROX. 200 MM
FROM THE REEL
ROPE HOLE IN REEL
ROPE GUIDE
CAUTION
Tightening torque (M6)
5.5 N・m
(55 kgf・cm)
(4.0 ft・lb.)
