- 29 -

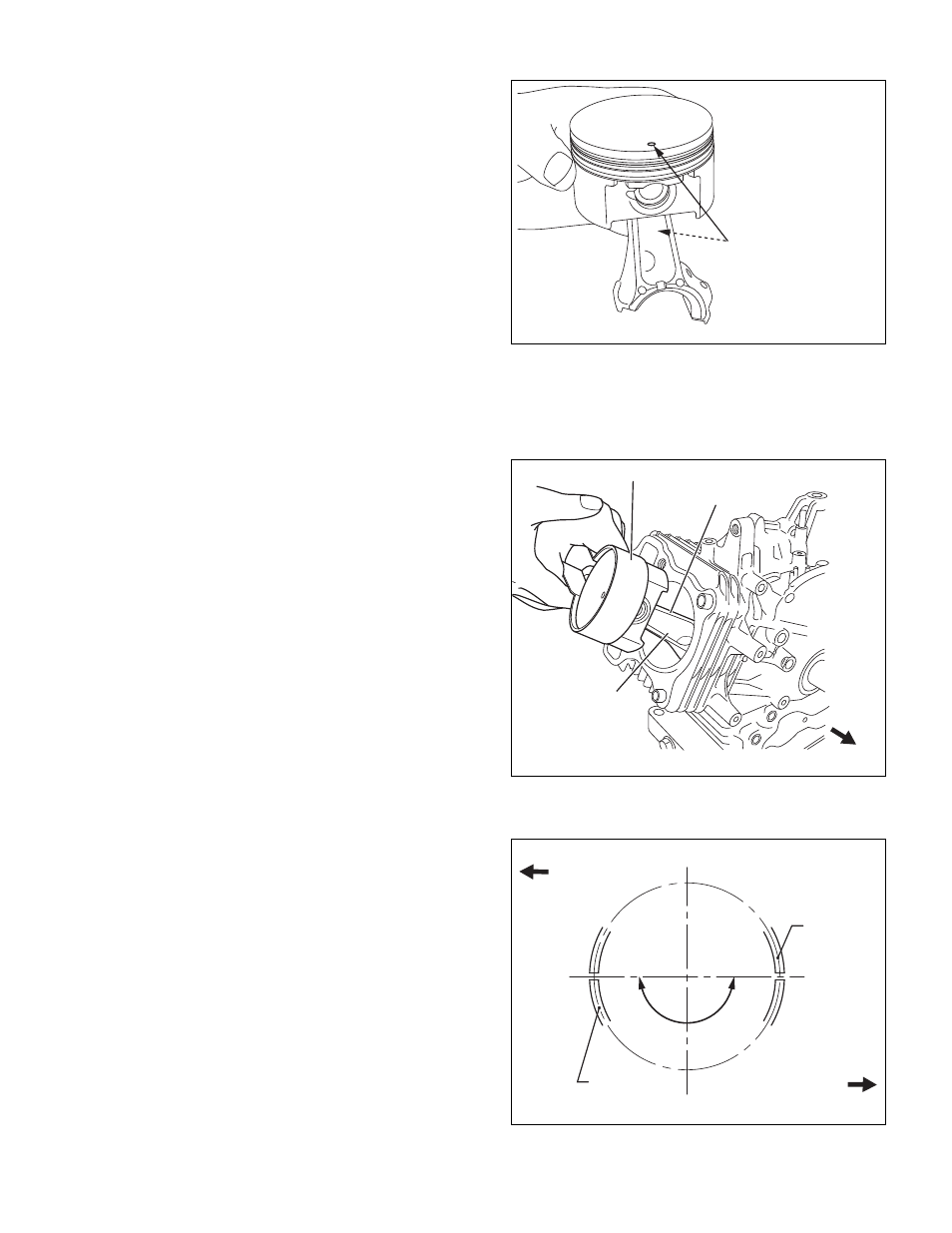

(4) PISTON AND CONNECTING ROD
The piston is attached to the connecting rod by
the piston pin.
When assembling the piston and connecting
rod, make sure to align the mark on the piston
head with the ‘MAG’ mark on the connecting
rod.
NOTE 1: Before assembling the connecting rod,
apply oil to its small end.
NOTE 2: Be sure to insert the clips in the two
ends of the piston pin and check the clips for
any play.
Fig.5-34
MA
G
When assembling the
piston and connecting
rod, make sure to align
the mark on the piston
head with the ‘MAG’ mark
on the connecting rod.
(5) CONNECTING ROD
Fig.5-35
Fig.5-36
PISTON RING GUIDE
CONNECTING ROD
"MAG" MARK
FLYWHEEL SIDE
MA
G
OIL RING
"MAG" MARK SIDE
(FLYWHEEL SIDE)
P.T.O SHAFT SIDE
TOP RING
180°
