- 58 -

14-1-1 DISASSEMBLY PROCEDURE

(1) Release the reel spring power

-1

Hold the starter knob and pull out the starter

rope.

-2

Pull out the rope fully and align the rope knot

in the reel with the rope guide.

-3

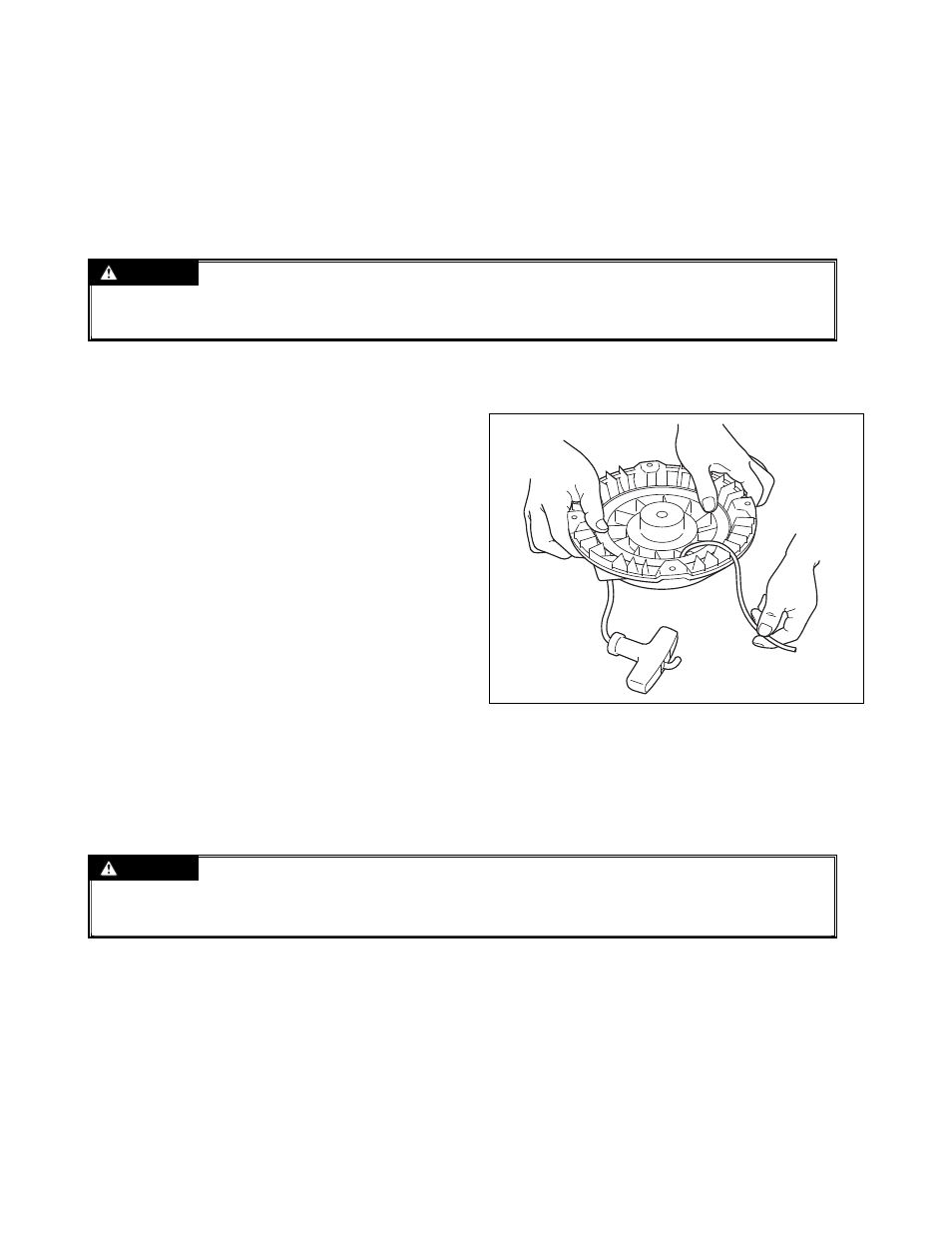

Hold the reel down firmly with both thumbs,

taking care not to allow it to spring back.

(Fig. 14-1)

-4

Remove the knot from the reel, untie the knot

and pull the rope out toward the starter knob.

Note: This procedure requires 2 people.

-5

While controlling the reel with the thumbs,

slowly wind it back as far as it will go.

Fig.14-1

14. RECOIL STARTER

14-1 RECOIL STARTER

Tools required: Screwdriver, pliers and protective glasses

Put on the protective glasses prior to start disassembly.

When the rope is pulled out to its full length, the force stored in the spring reaches its
maximum. Be careful not to drop it or release your grip on it suddenly.

CAUTION

CAUTION
